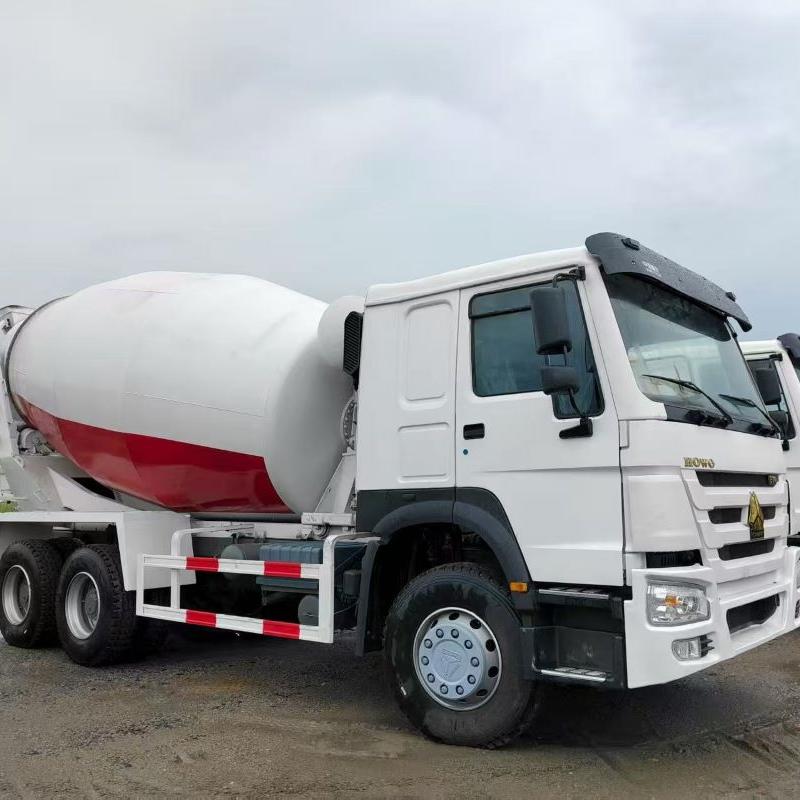

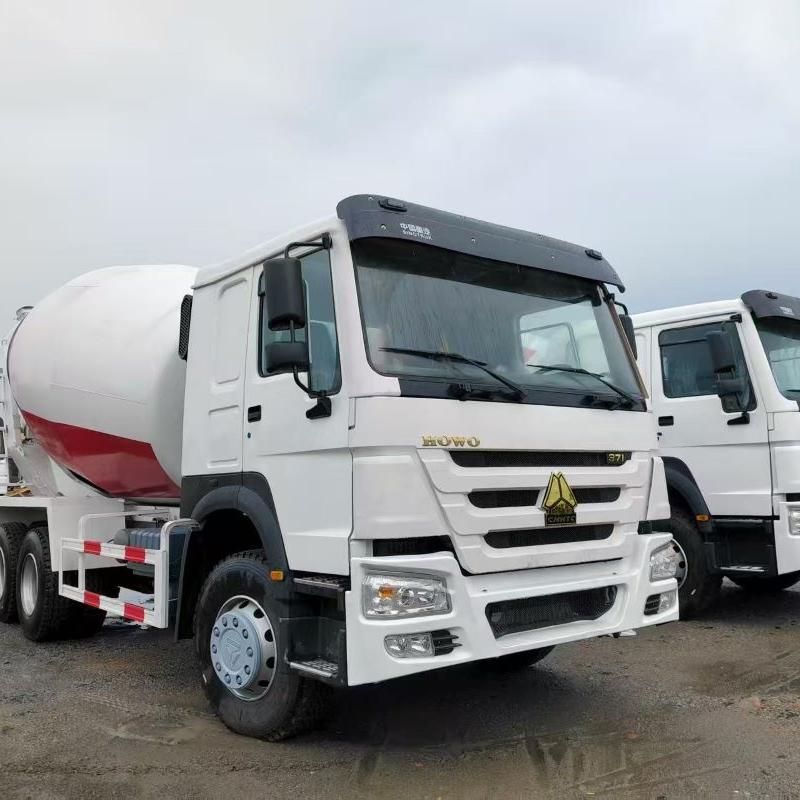

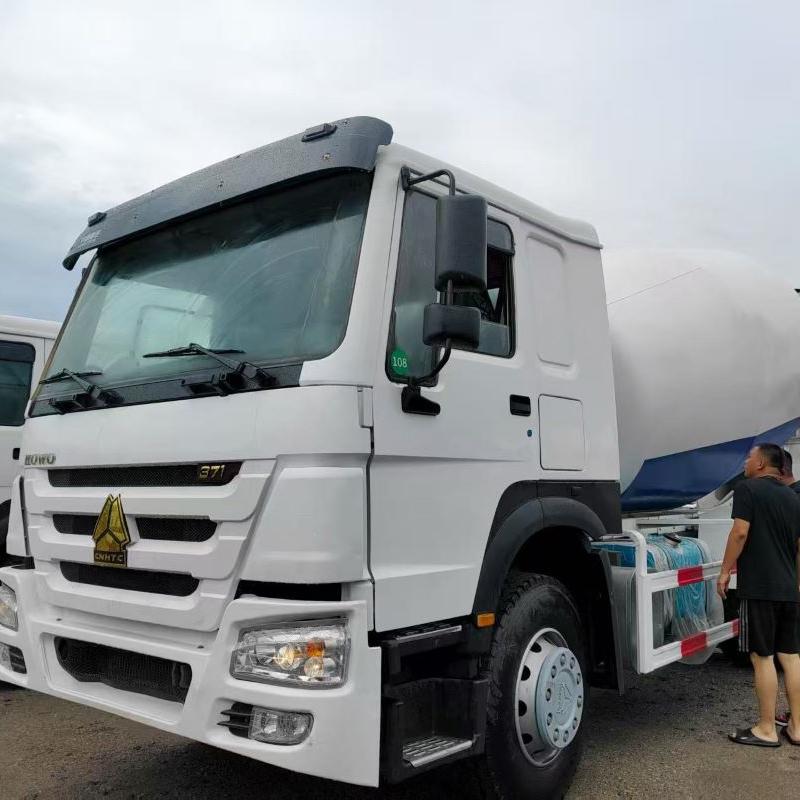

HOWO 6X4 Mixer Truck
1.In terms of dimensions, the vehicle comes in two lengths: 9.04 and 10.29 meters, with widths ranging from 2.496 to 2.5 meters, giving it a striking appearance. Wheelbases are available in two configurations: 3825+1350mm and 4025+1350mm, ensuring unwavering stability even on bumpy construction sites. Capable of carrying 8.87 to 11.77 tons of concrete, it's like a rolling mountain, yet its solid chassis keeps it steady and prevents tipping over.
2.The cab is available in two options: a high-top and a flat-top. The high-top version offers an unparalleled view, like sitting in an observation deck; the flat-top version is more discreet, yet offers ample space. Air conditioning and onboard devices are all included, so you won't feel tired even after a long day of driving.
HOWO 6X4 Mixer Truck

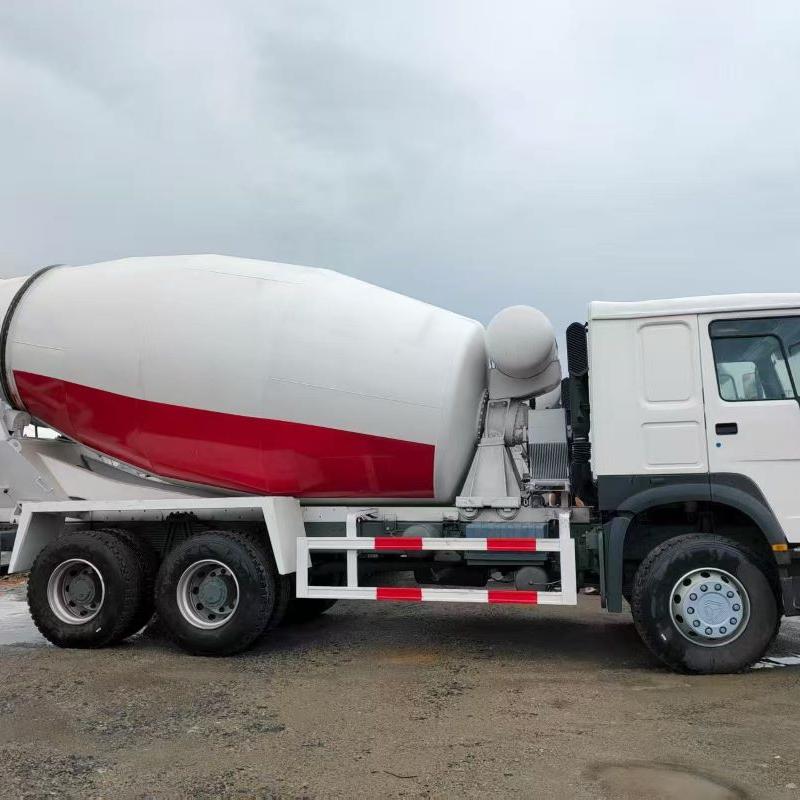

The mixing drum, with capacities ranging from 4 to 6 cubic meters, spins like a giant top! It stirs in a 360-degree circle, ensuring the concrete doesn't clump. It also comes with a built-in "water replenishment tool" to keep the concrete moist at all times to prevent cracking. The flexible shaft manipulator is like a game controller, while the linkage control is like pressing piano keys. It's easy to use and even adjust the discharge direction!
The engine is powered by the WD615.47, a high-performance diesel engine manufactured by Sinotruk and suitable for heavy equipment such as trucks, construction machinery, and ships. Featuring an inline six-cylinder, water-cooled, four-stroke, turbocharged, intercooled, and direct-injection design, it boasts a compact yet powerful design with a maximum horsepower of 371, a displacement of 9.97 liters, and a maximum torque of 1500 Nm. Just one foot on the accelerator delivers a powerful, responsive feeling!
The mixing drum capacity ranges from 4 to 6 cubic meters. The water supply system utilizes a pressurized water supply, simplifying the structure and saving energy. The operating device includes a flexible shaft manipulator and a linkage manipulator, with the linkage manipulator enabling multi-point control. The feed and discharge systems, including the feed hopper and discharge chute, can be rotated 180 degrees horizontally to accommodate different discharge positions.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 6*4 | ||
Wheelbase/轴距(mm) | 3775+1400 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | WD615.47 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 371HP/276KW | ||
Cylinder in line 直列缸数 | 6 | ||
Air filter element/空滤器 | Oil bath air filter 油浴式空滤器 | ||
Displacement (L)/排量 | 9.97L | ||
Transmission/变速箱 | Type 类型 | Manual 手动 | |
Model/型号 | SINOTRUK HW19710 10-speed manual transmission 中国重汽HW19710 10挡 手动变速箱 | ||
Front axle/前轴 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | HF9 | ||
Rear axle/后桥 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | AC13双级减速桥 double reduction driving axle Speed ratio 速比：4.73 | ||
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | Type 类型 | Bottle neck, double frame前宽后窄，双层车架 | |
Dimension (mm) 车架尺寸 | 940-850 (W) 300 (H) | ||
Section thickness (mm) 厚度 | 8+8 | ||
Suspension/悬架 | Front 前悬架 | Semi-elliptic 多片簧 12pcs | |
Rear 后悬架 | Semi-elliptic 多片簧 14pcs | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12R22.5 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
CAB INTERIOR 驾驶室内部配置 | Driver seat 驾驶室座椅 | mechanical 机械式 | |
Lighter 点烟器 | Yes | ||
Entertainment 娱乐设置 | mp3+radio | ||
Cab maintanence titled 驾驶室翻转 | manual 手动翻转 | ||
Air conditioner 空调 | manual手动空调 | ||
Rear view mirror 后视镜 | manual手动 | ||
Sleeping bed 卧铺 | single bed 单卧铺 | ||
Mixing tank configuration /搅拌罐配置 | 12 cubic body top configuration, reducer PMP, hydraulic motor/oil pump PMP, domestic 26L radiator, tank cylinder: 6mm/Q355 manganese plate, double head: 8/4mm/Q355 manganese steel material, blade: 4mm/T520JJ high strength Wear-resistant steel, double spiral logarithmic curve, other 400L pneumatic iron water tank. 12立方上装配置,减速机 PMP,液压马达/油泵 PMP,散热器 国产26L,罐体 筒体：6mm/Q355锰板 ，双封头：8/4mm/Q355锰钢材质，叶片：4mm/T520JJ高强耐磨钢，双螺旋对数曲线,其它 400L气压式铁质水箱。 | ||
OVERALL DIMENSIONS/全车尺寸 | 8650×2550×3300 mm | ||

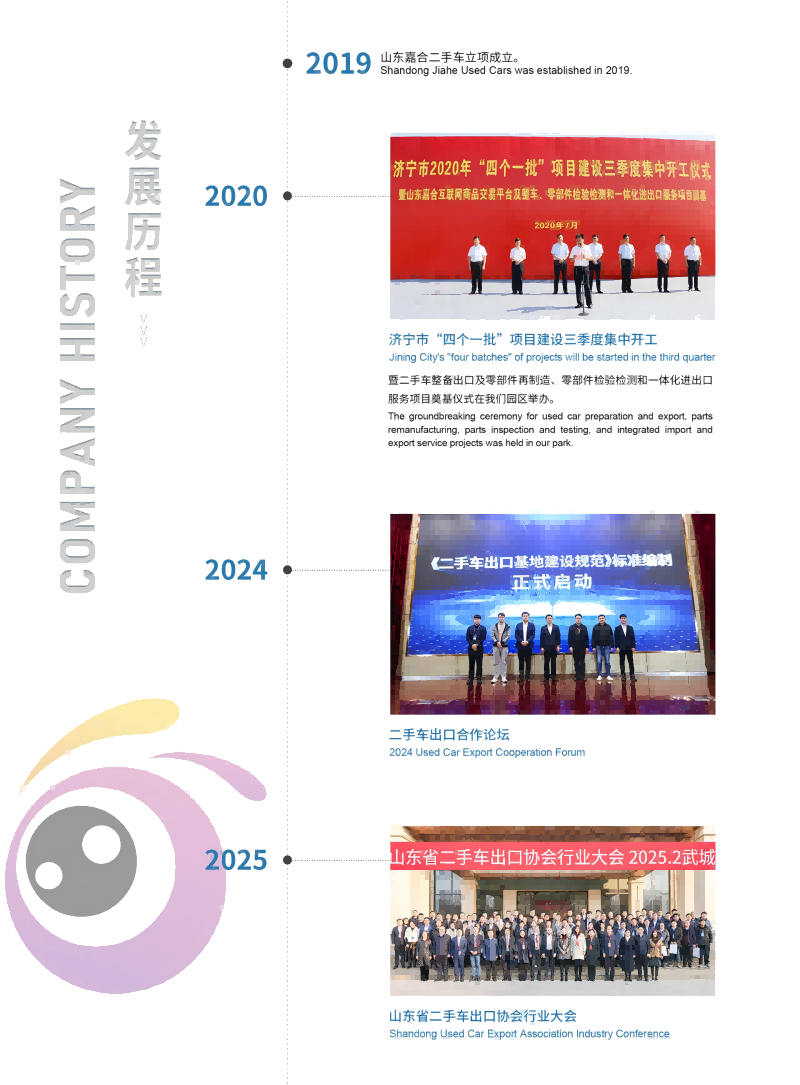

Company Profile

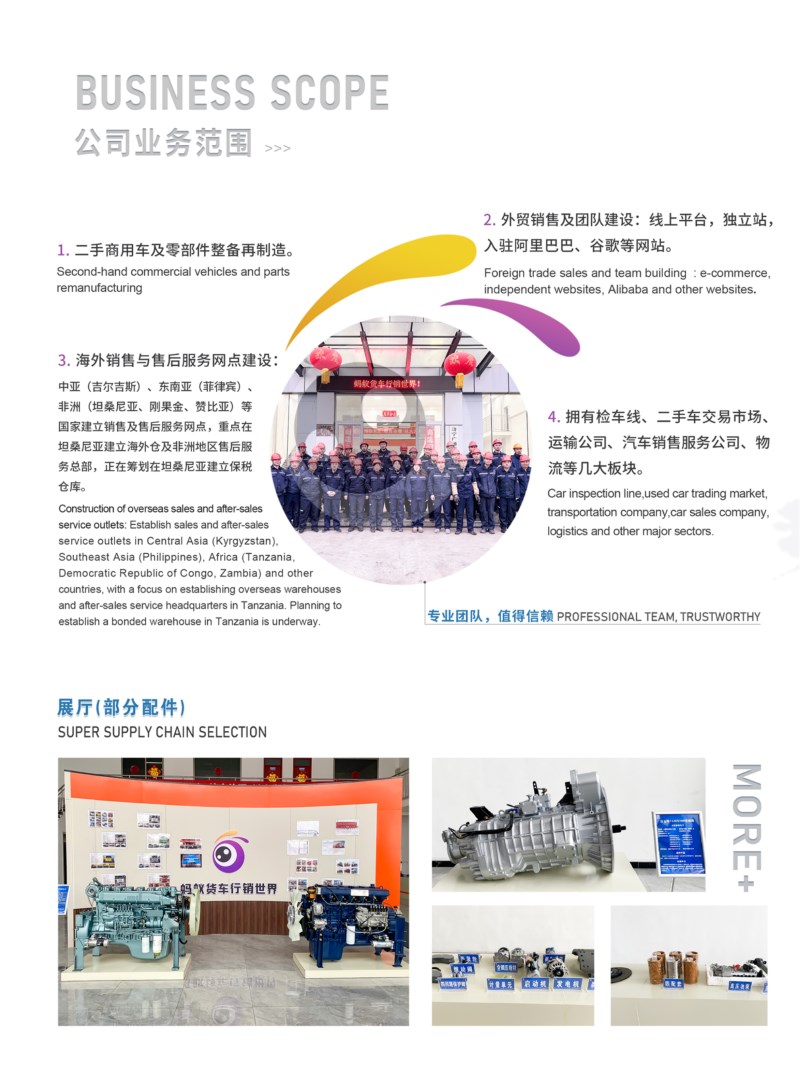

Company Business Scope
1.Second-hand commercial vehicles and parts remanufacturing
2.Foreign trade sales and team building:e-commerce, independent websites,Alibaba and other websites.
3.Construction of overseas sales and after-sales service outlets:Establish sales and after-sales service outlets in Central Asia(Kyrgyzstan),Southeast Asia(Philippines),Africa(Tanzania,Democratic Republic of Congo,Zambia)and other countries,with a focus on establishing overseas warehouses and after-sales service headquarters in Tanzania.Planning to establish a bonded warehouse in Tanzania is underway.
4.Car inspection line,used car trading market, transportation company,car sales company,logistics and other major sectors.
Ant Car Network (Shandong)E-commerce Co.,Ltd.is a specific business company developed from Shandong Jiahe Used Car Trading Co.,Ltd.to adapt to and connect with the international market.The company was established through the shareholders'meeting on June 29,2023,and organized 18 people to entrust Beijing Zhongzi Alliance Management Co.,Ltd.to conduct second-hand car repair and disassembly business training.At present,the professional team of each process has grown to 58 people.The company focuses on building the automobile parts assembly,manufacturing and recycling industry.Relying on the used car export platform and leveraging overseas market resources,it expands markets in Central Asia,Southeast Asia,Africa and other countries along the Belt and Road,shapes a new export trade industry structure for used commercial vehicle complete vehicles and parts processing and remanufacturing in Jining,and cultivates new formats for maintenance and remanufacturing.

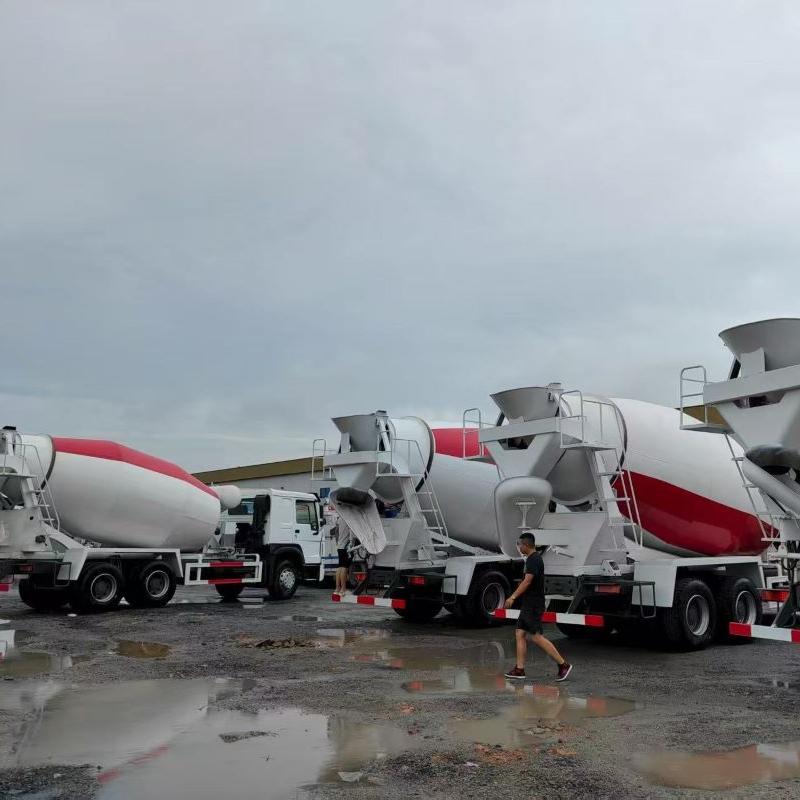

Product Show

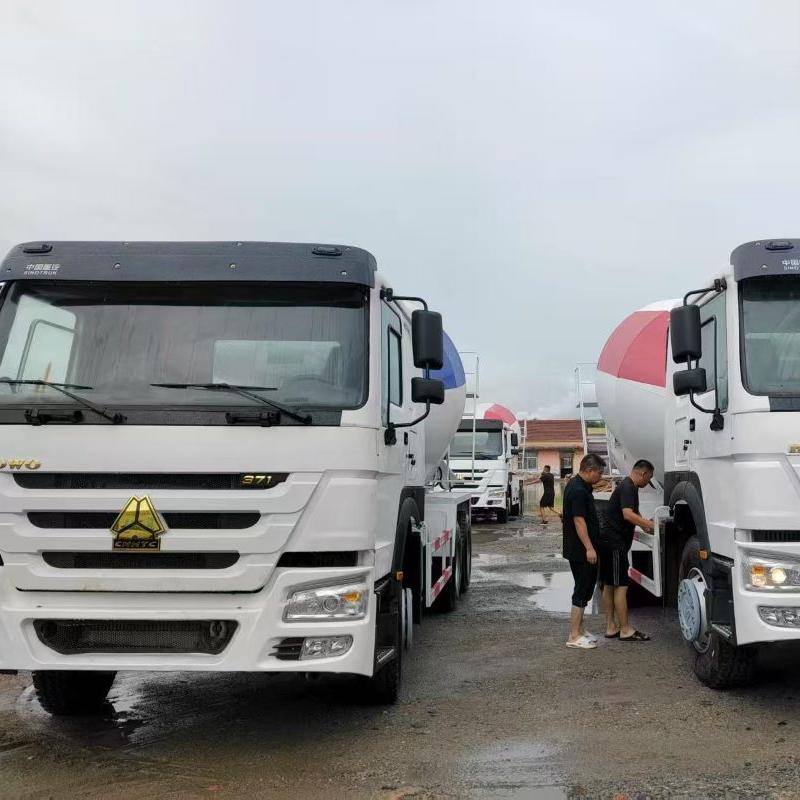

Customer visit
