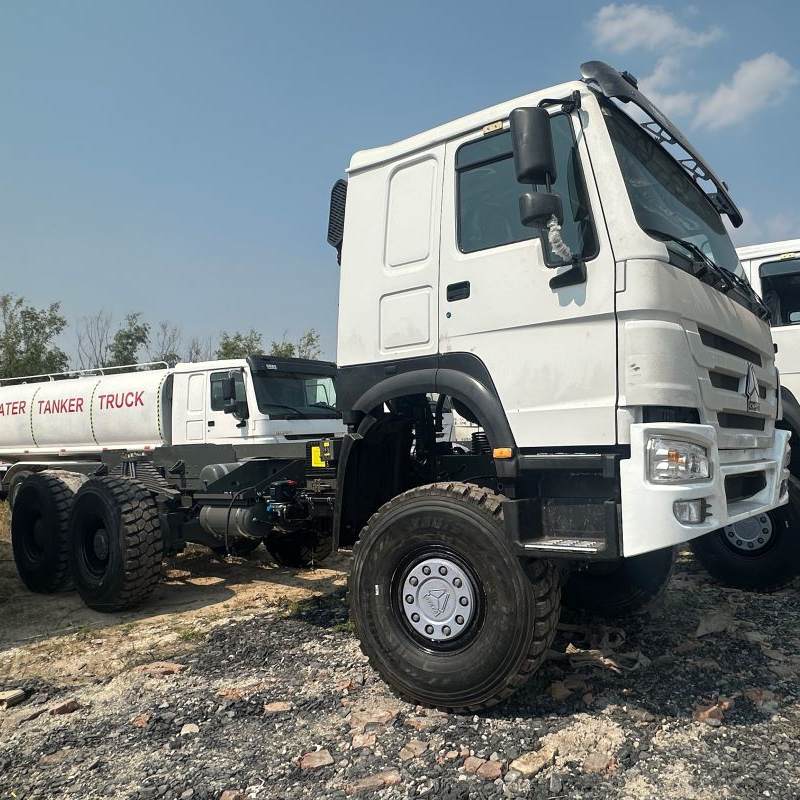

HOWO 6X6 Dump Truck
1. The use of a frame-type main bearing structure significantly increases engine rigidity. In the harsh operating environment of the HOWO 6X6 dump truck, characterized by frequent bumps and vibrations, the engine maintains stable operation, reducing the probability of failures caused by engine deformation and other issues. Furthermore, by leveraging Sinotruk's global network of excellent suppliers, the quality of the components used is reliable, ensuring the overall reliability of the engine from the very beginning.
2. The WD10 engine has a displacement of 9.726L, delivering a maximum output of 273kW and a peak torque of 1600Nm. This powerful torque output allows the HOWO 6X6 dump truck to move with full power and effortless traction when starting with a full load. On common construction sites, vehicles often need to start and climb hills on bumpy roads piled with building materials. In these situations, the WD10 engine, with its powerful torque, easily propels the vehicle, overcoming numerous obstacles and successfully completing the transport task.
HOWO 6X6 Dump Truck

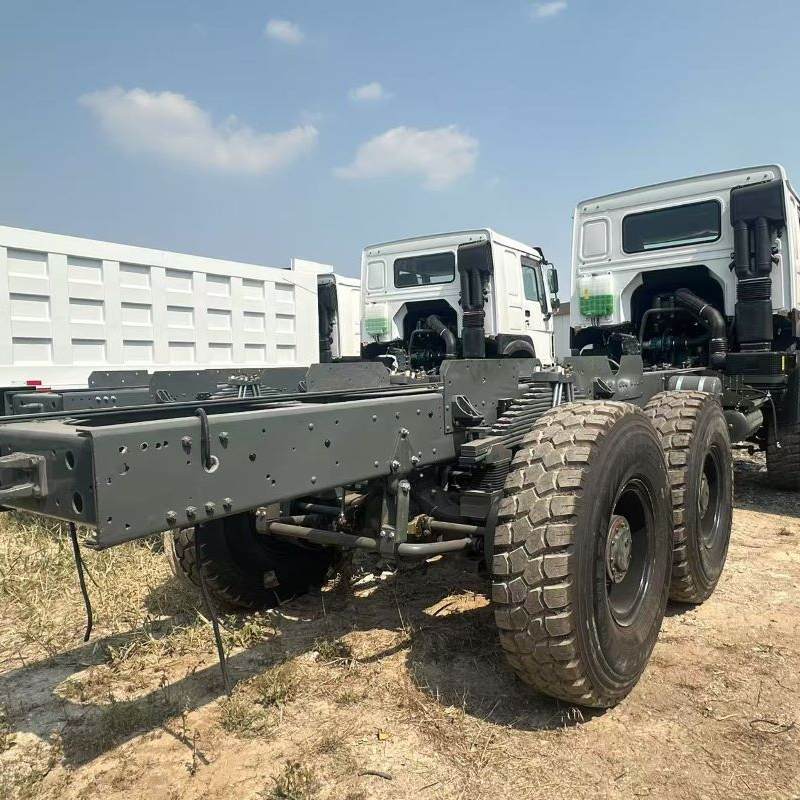

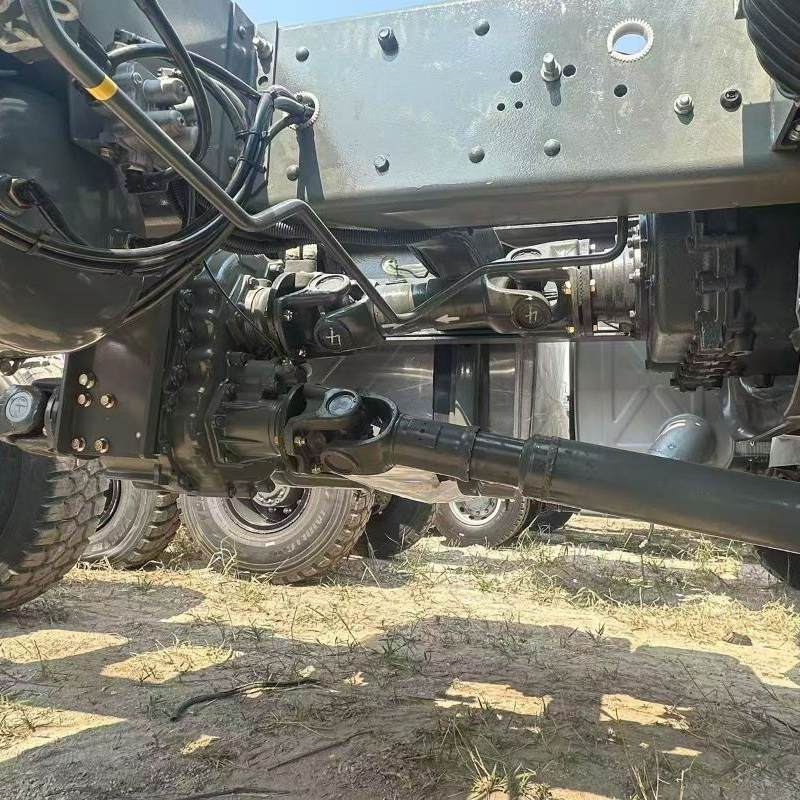

The HC13 rear axle is equipped with a self-adjusting arm. This self-adjusting arm structure allows for a flexible connection between the axle and the frame, improving vehicle stability and comfort. The advanced transmission design provides high transmission efficiency and reduces energy consumption, making it suitable for 13-ton loads and meeting heavy-duty transport requirements. High-quality materials and advanced technology ensure durability and reliability, while the rational structural design facilitates routine maintenance and troubleshooting.The 13T driven front axle is designed with an emphasis on ease of operation, enabling the vehicle to steer flexibly even in complex road conditions. Equipped with an efficient braking system, it ensures vehicle safety when traveling under heavy loads and at high speeds. It is suitable for wide-body mining vehicles used in off-road applications such as mines and construction sites, providing strong traction and stability.
The cargo box is available in various lengths, ranging from 6.5 meters to 6.5 meters, with a typical width of approximately 2.35 meters and a height of approximately 1.5 meters. Constructed from wear-resistant plate with a 10mm bottom and 8mm sides, the box is designed to withstand heavy loads and is suitable for transporting heavy materials such as ore, sand, and gravel. The manual lift mechanism, coupled with a 157mm hydraulic cylinder, allows for quick and smooth raising and lowering of the box.

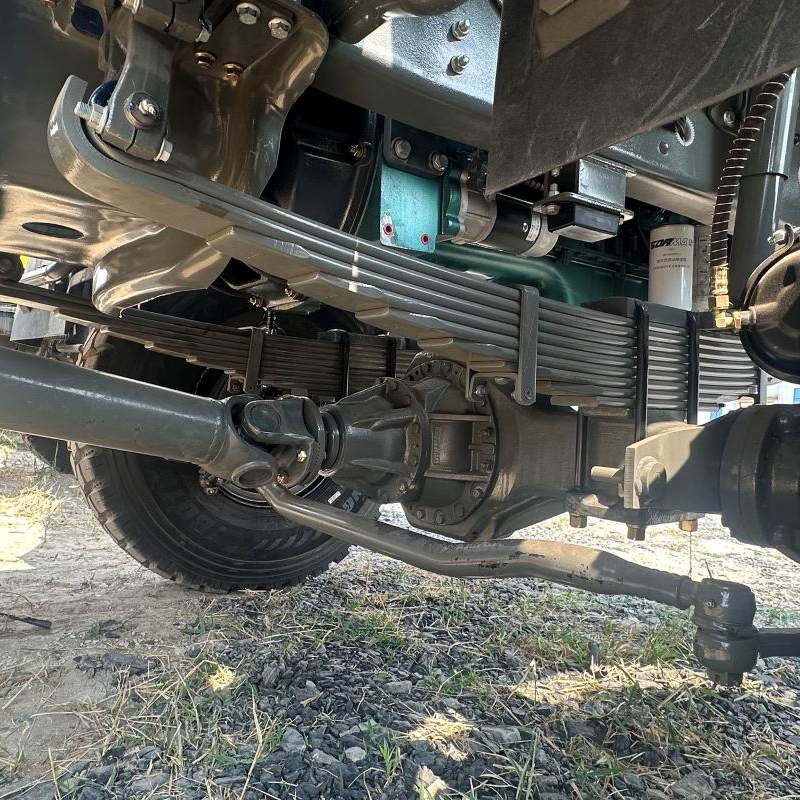

The front and rear suspension design with 12 leaf springs can effectively support heavy loads and is suitable for transporting heavy materials such as ore, sand and gravel. The multi-leaf spring structure provides excellent stability, helping to disperse the load and improve vehicle stability and safety. Highly durable, the use of high-quality materials and advanced technology extends the service life of the suspension system. Paired with 12.00R20 tires, the tires feature a high-nylon carcass structure capable of withstanding heavy loads and are suitable for engineering vehicles such as mining dump trucks and loaders, meeting the needs of construction, municipal construction, and earthwork operations. The wide tread and deep tread provide excellent wear and cut resistance, extending the tire's service life.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 6*6 | ||
Power take-off/取力器 | HW50 direct-connected power take-off/HW50直联式取力器 | ||
Engine/发动机 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | WD10 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 371HP/276KW | ||
Cylinder in line 直列缸数 | 6 | ||
Air filter element/空滤器 | Oil bath air filter 油浴式空滤器 | ||
Displacement (L)/排量 | 9.726L | ||
Transmission/变速箱 | Type 类型 | Manual 手动 | |
Model/型号 | SINOTRUK HW19710 10-speed manual transmission 中国重汽HW19710 10挡 手动变速箱 | ||
Front axle/前轴 | 13T drive front axle, matched with 2000 gear transfer case 13T驱动前桥，配株齿2000分动箱 | ||
Rear axle/后桥 | HC13 rear axle with self-adjusting arms 自调臂HC13后桥 | ||
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | Type 类型 | Bottle neck, double frame前宽后窄，双层车架 | |
Dimension (mm) 车架尺寸 | 940-850 (W) 300 (H) | ||
Section thickness (mm) 厚度 | 8+8 | ||
Suspension/悬架 | Front 前悬架 | Semi-elliptic 多片簧 12pcs | |
Rear 后悬架 | Semi-elliptic 多片簧 12pcs | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | Tire specifications are 425/80 or 1400R20, a total of 6/轮胎规格有425/80或1400R20,共计6条 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
Security Configuration/安全配置 | High bumper material is full metal/ 高位保险杠材质有全金属 | ||
Cab configuration 驾驶室配置 | Driver seat 驾驶室座椅 | mechanical 机械式 | |
Lighter 点烟器 | Yes | ||
Entertainment 娱乐设置 | mp3+radio | ||
Cab maintanence titled 驾驶室翻转 | manual 手动翻转 | ||
Air conditioner 空调 | manual手动空调 | ||
Rear view mirror 后视镜 | manual手动 | ||
Sleeping bed 卧铺 | single bed 单卧铺 | ||
CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 5800x2300x1600(LxWxH) | |
Material 材质 | 高强钢 T700 | ||
Lifting system 举升缸 | Manual lift, 157 cylinder/手动举升，157油缸 | ||
Thickness(mm) 板材厚度 | Bottom 10mm, sides 8mm 底板10mm，边板8mm | ||
Other 其他 | 600L Sprinkler淋水器 | ||
