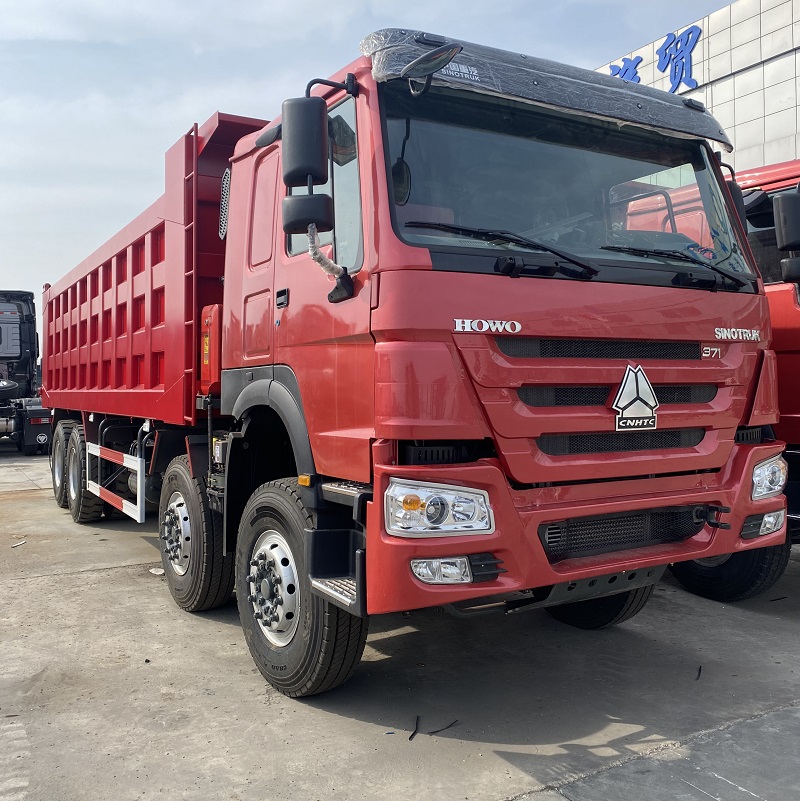

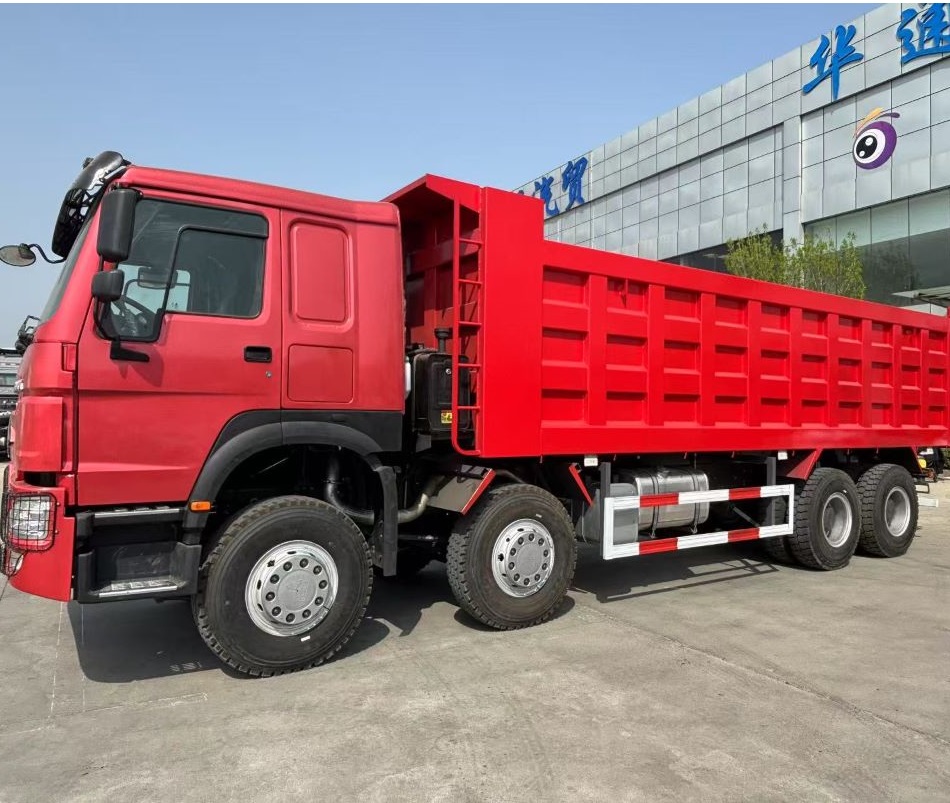

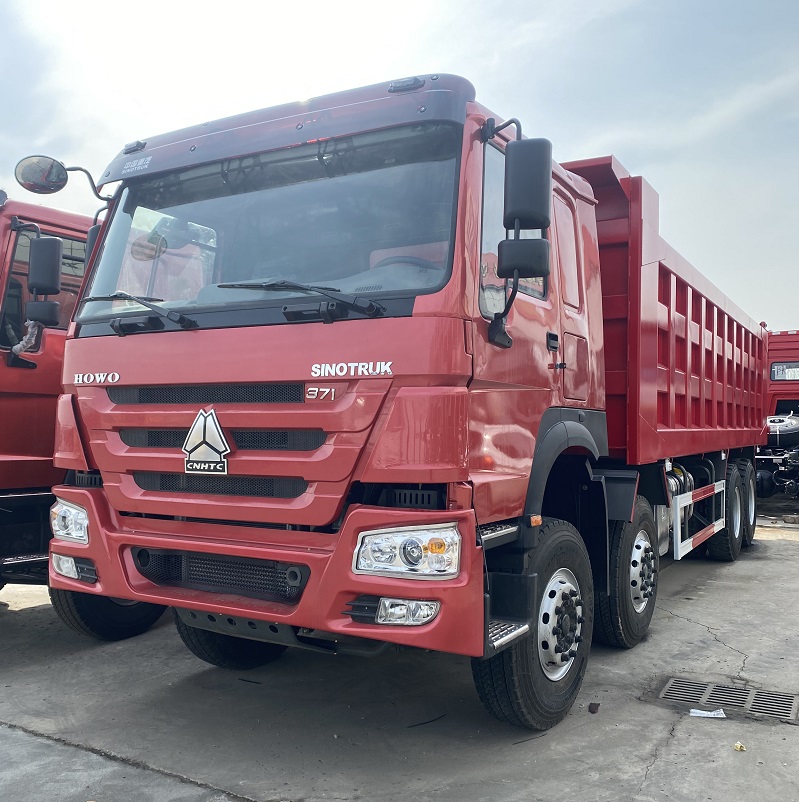

HOWO 8X4 Red Dump Truck
1.Strong load-bearing capacity:Adopting high-strength frame, such as optional 8+8 and 8+8+8 frames, with the strongest tensile and torsional resistance in China. Equipped with HF9-ton front axle and AC16 engineering axle, it has a super strong load-bearing capacity and is matched with the classic engineering (NS07) rear suspension, which can meet the needs of different working conditions. In addition, the suspension of the car adopts a layout of 4 front and 8 rear, and is equipped with thick lateral stabilizer bars, effectively improving the stability of the chassis
2.The vehicle's suspension and shock absorption systems have been carefully tuned to effectively filter road bumps and improve driving comfort. Even when driving on roads with poor road conditions, the driver can feel less bumps and vibrations.
3.Good passability: The chassis is relatively high, and the approach and departure angles of the vehicle are designed reasonably, which can adapt to various complex road conditions, such as construction sites, mines, and other environments with poor road conditions. The larger tire specifications provide good support and cushioning, further enhancing the vehicle's passability.
HOWO8 × 4 Red Dump Truck
HOWO 8 × 4 dump truck is a high-performance engineering transport vehicle under China National Heavy Duty Truck Group. Its core configuration is equipped with a 371 horsepower WD615.47 engine, paired with a China National Heavy Duty Truck HW19710 10 10 speed manual transmission. The transmission form is 8 × 4, with strong power output and efficient transmission performance. The car adopts a double-layer frame and AC16 two-stage reduction axle, with reinforced multi piece spring suspension. The maximum total weight is 31000KG, and the overall size of the car is 10080 × 2550 × 3300 mm
The cab is safe and sturdy: The cab body is an integral steel frame structure that has passed strict collision tests. Some models, such as HOWO T7H, are equipped with integrated mirrors, supplementary mirrors, front floor mirrors, etc., to enhance the field of view; The top of the driver's cabin and sunshade are equipped with dual level width lights, and the bumper is made of thick metal material. The headlights are equipped with built-in lenses, LED and other light sources to enhance active safety
Adopting an 8 × 4 drive form, with a dual rear axle and single front axle structure, the front axle is responsible for supporting steering, while the rear axle is a dual drive with strong load-bearing capacity. For example, the AC16 rear axle can achieve a maximum load capacity of 18 tons, coupled with a solid chassis design and high-strength frame, the vehicle has excellent load-bearing capacity and can meet various heavy-duty transportation needs. It can transport large amounts of sand, coal, building materials and other goods
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 8*4 | ||
Wheelbase/轴距(mm) | 1950+3225+1350 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | WD615.47 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 371HP/276KW | ||
Cylinder in line 直列缸数 | 6 | ||
Displacement (L)/排量 | 9.97L | ||
Transmission/变速箱 | Type 类型 | Manual 手动 | |
Model/型号 | SINOTRUK HW19710 10-speed manual transmission 中国重汽HW19710 10挡 手动变速箱 | ||
Front axle/前轴 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | HF9 | ||
Rear axle/后桥 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | 16T AC16双级减速桥 double reduction driving axle Speed ratio 速比：5.262 | ||
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | Type 类型 | Bottle neck, double frame前宽后窄，双层车架 | |
Dimension (mm) 车架尺寸 | 940-850 (W) 300 (H) | ||
Section thickness (mm) 厚度 | 8+8+8 | ||
Suspension/悬架 | Front 前悬架 | Semi-elliptic 多片簧 12pcs | |
Rear 后悬架 | Semi-elliptic 多片簧 14pcs | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
CAB INTERIOR 驾驶室内部配置 | Driver seat 驾驶室座椅 | mechanical 机械式 | |
Lighter 点烟器 | Yes | ||
Entertainment 娱乐设置 | mp3+radio | ||
Cab maintanence titled 驾驶室翻转 | manual 手动翻转 | ||
Air conditioner 空调 | manual手动空调 | ||
Rear view mirror 后视镜 | manual手动 | ||
Sleeping bed 卧铺 | single bed 单卧铺 | ||

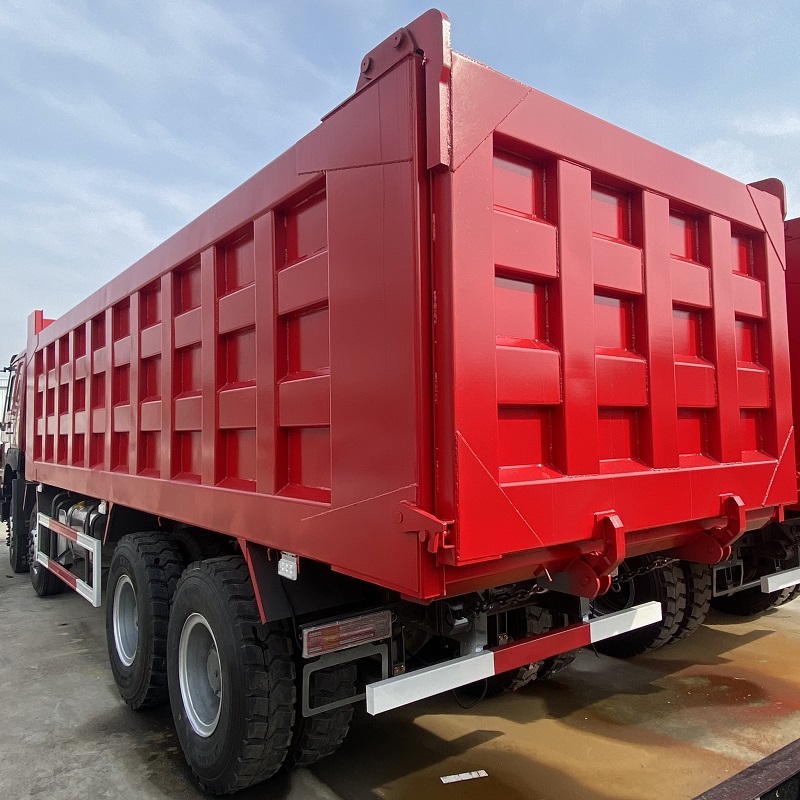

CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 7600x2300x1600 (LxWxH) | |
Material 材质 | 锰钢 | ||
Lifting system 举升缸 | JIAHENG 191 | ||
Thickness(mm) 板材厚度 | Bottom 10mm, sides 8mm 底板10mm，边板8mm | ||
OVERALL DIMENSIONS/全车尺寸 | 10080×2550×3300 mm | ||
