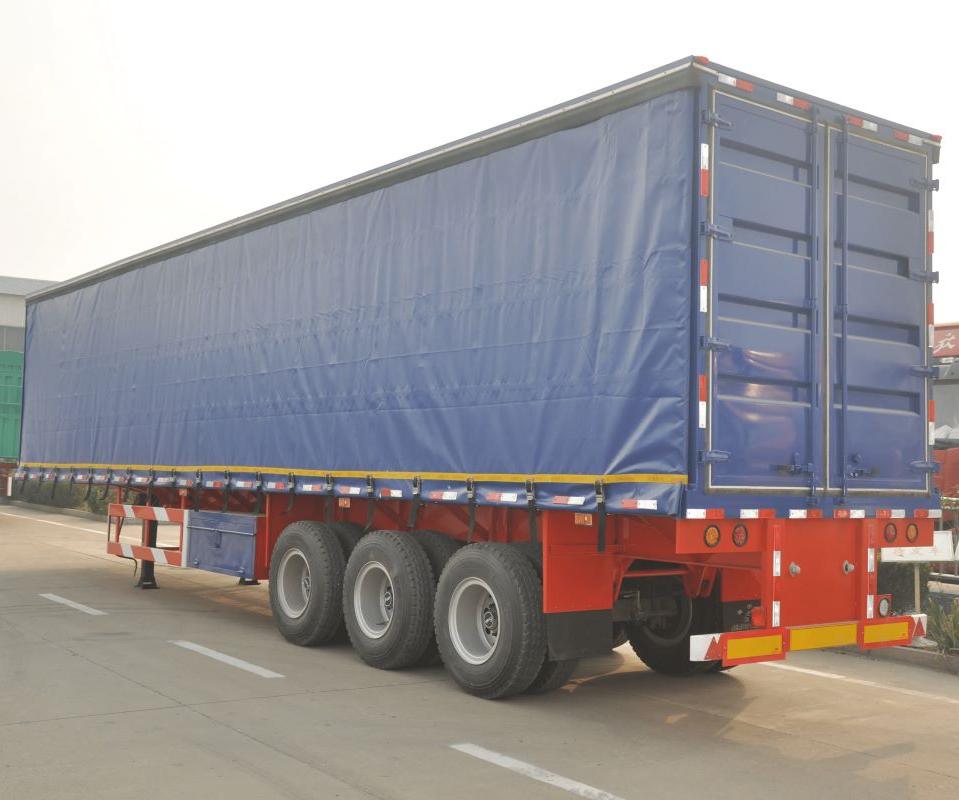

Straight Beam Curtain Side Trailer
1.Efficient loading and unloading, the sides are fully open, and the two sides are made of flexible materials such as soft tarpaulins, which can be fully opened, making it convenient for forklifts and other equipment to load and unload from the side, improving loading and unloading efficiency.

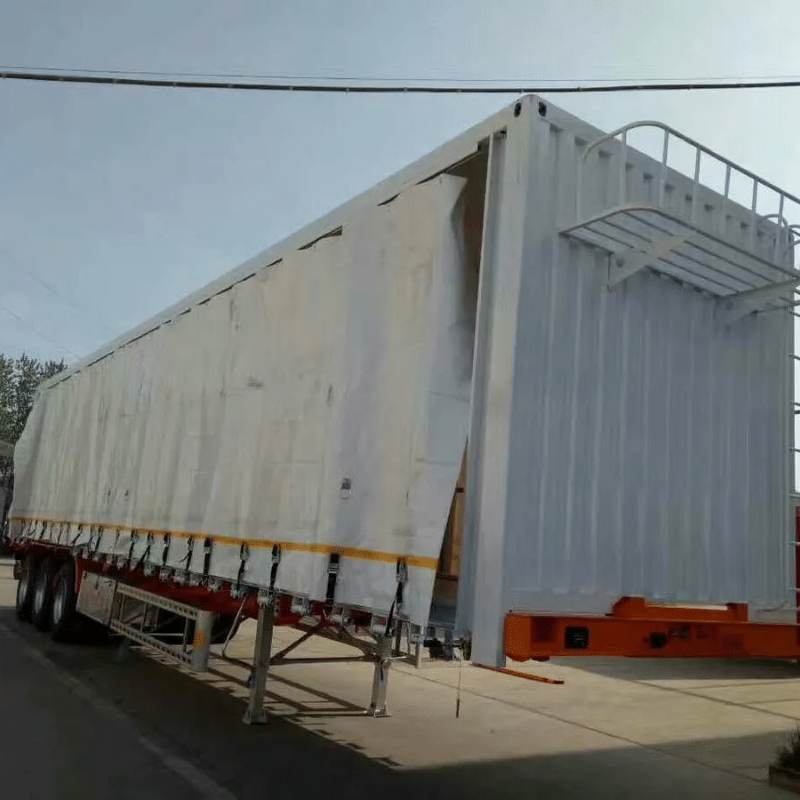

2.The top is open, and the top is also designed to be openable, which is convenient for loading and unloading goods, especially suitable for the transportation of large or irregular goods.
3.The materials are lightweight, the side curtains and the top are made of lightweight materials, and the internal structure is mostly made of aluminum alloy and other materials, which effectively reduces the vehicle's own weight and increases cargo capacity.

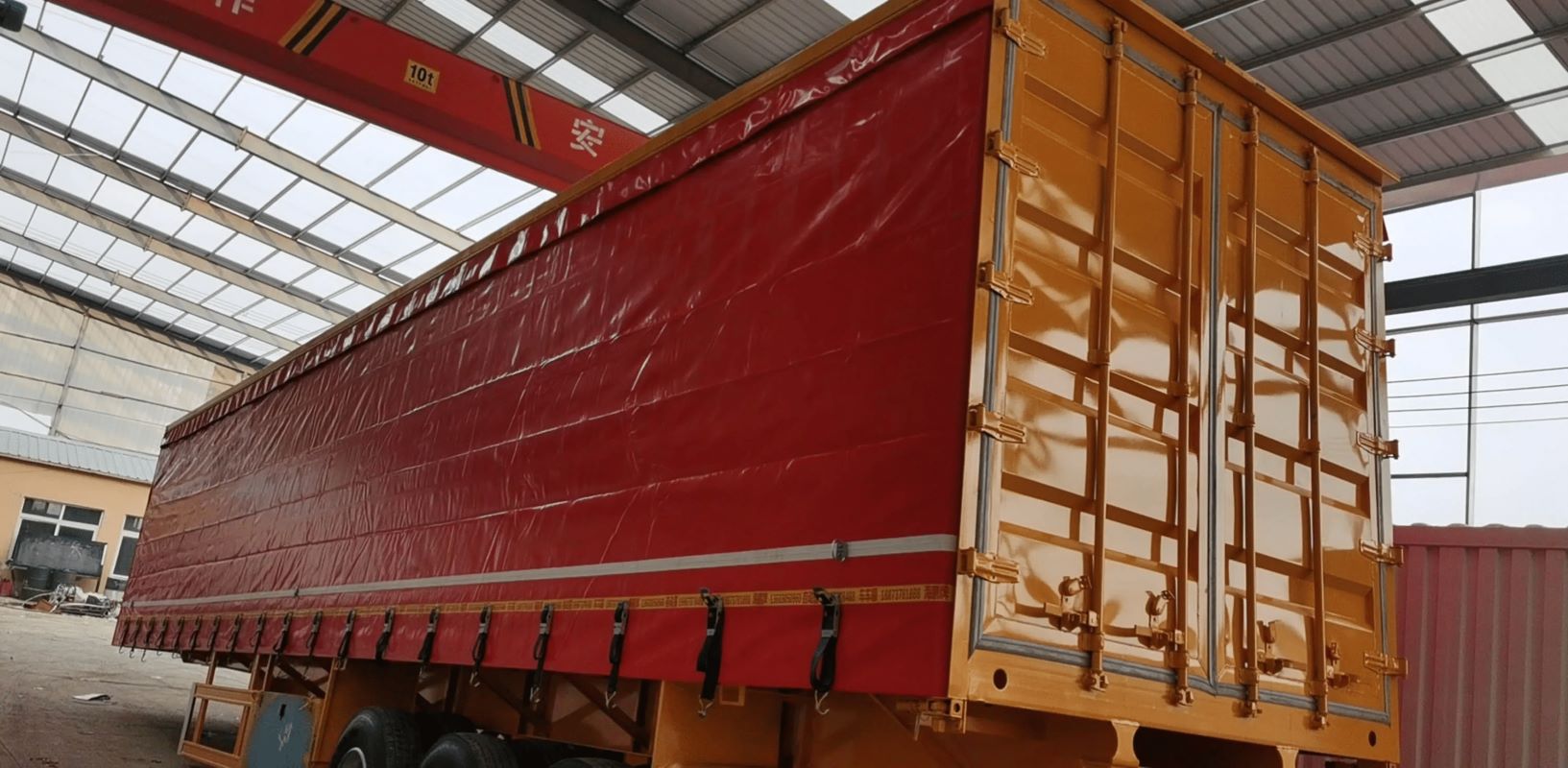

Straight Beam Curtain Side Trailer
It is highly adaptable and applicable in multiple scenarios. It is suitable for the transportation of a variety of goods, such as coal, ore, steel, fruits and vegetables, etc., and can meet the transportation needs of different industries. Pallet transportation is suitable for palletized transportation, which can optimize the layout of goods, evenly distribute the load, and reduce component wear.
Safety protection, cargo fixation, equipped with a variety of cargo fixing devices, can effectively fix the cargo and ensure transportation safety. Anti-theft performance, compared with traditional side curtain vehicles, some new straight beam side curtain semi-trailers have retractable side walls and anti-theft functions. Strong structure, strong load-bearing capacity, the straight beam structure design provides good load-bearing capacity and stability, and is suitable for various road conditions.
Product Paramenters
一、半挂车型号和主要配置： | |||
外形尺寸（长度和宽度：最外端不可拆解的金属物之间；栏板车高度为厢板高度，仓栅车高度为底板至仓栅顶部高度，厢车为厢高高度）长： 13.6米； 宽： 2.55 米； 高： 总高度4米 | |||
产品名称： 直梁侧帘半挂车 产品型号：出口型 上牌吨位： 数量 | |||
纵梁高度（mm) | 400 mm | 轴距 | 按设计 |
纵梁上下翼板厚度（mm) | 12mm/ 12mm | 是否带篷布杆 | / |
纵梁腹板厚度（mm) | 6 mm | 是否带篷布架（爬梯） | / |
边梁规格 | 16折弯件 | 箱内横拉、斜拉样式 | / |
贯穿梁规格 | 支腿形式 | 28吨 单动 外置 | |
牵引销规格 | 工具箱尺寸/数量 | 标准 一个 长度按照设计 | |
悬挂系统 | 国产空气悬架 前桥提升 | 后防护网形式 | 按设计 |
立板加固 | 内加固 | 备胎架规格/数量 | 2个 |
低平板前脖 | 颜色（与主机颜色可能有色差） | 车架： /聚氨酯 | |
车厢：/聚氨酯 | |||
防水槽 | 无 | 轮胎规格/数量 | 名称：玲珑轮胎 |
底板形式/厚度（mm） | 木底板 | 385/65R22.5 | |
厢板形式/扇数 | / | 6条 | |
合页形式 | / | 钢圈规格/数量 | 6条 |
仓栅开启方式 | / | 车轴数及型号 | 德式桥 |
立柱样式/节数/高度 | / | 板簧片数/规格 | 空气悬架 |
/ | 前桥提升 手控阀操作 | ||
仓栅高度/间距/层数 | / | 分泵规格/数量 | 6双 /2单 |
仓栅后门样式 | / | 制动阀规格 | 三桥同步阀 |
厢式门是否带密封条 | / | “ABS”规格 | 有 |
l 所运输货物及工况的特殊要求描写（货物名称，形状特征，运输路况，作业环境及其他）： | |||
二、特殊要求及特殊配置： | |||
前桥提升 全车气囊 3桥配单胎385/65R22.5 顶部开启 前后档 铁门 带篷布 | |||
