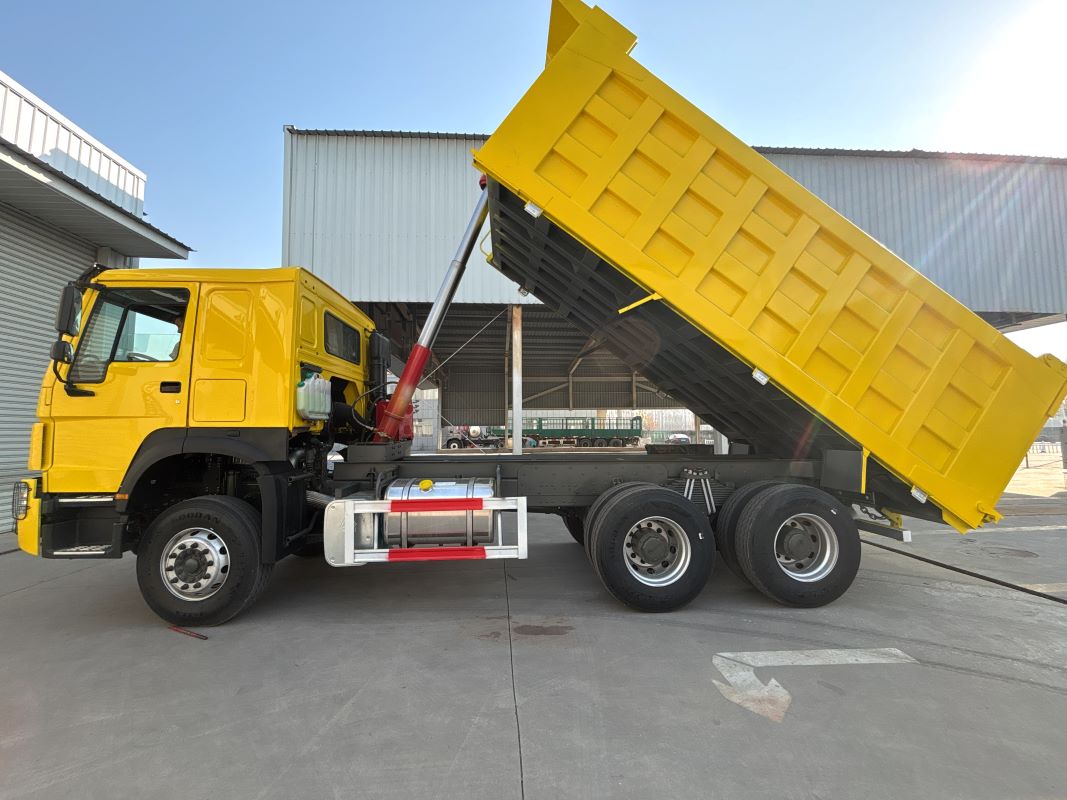

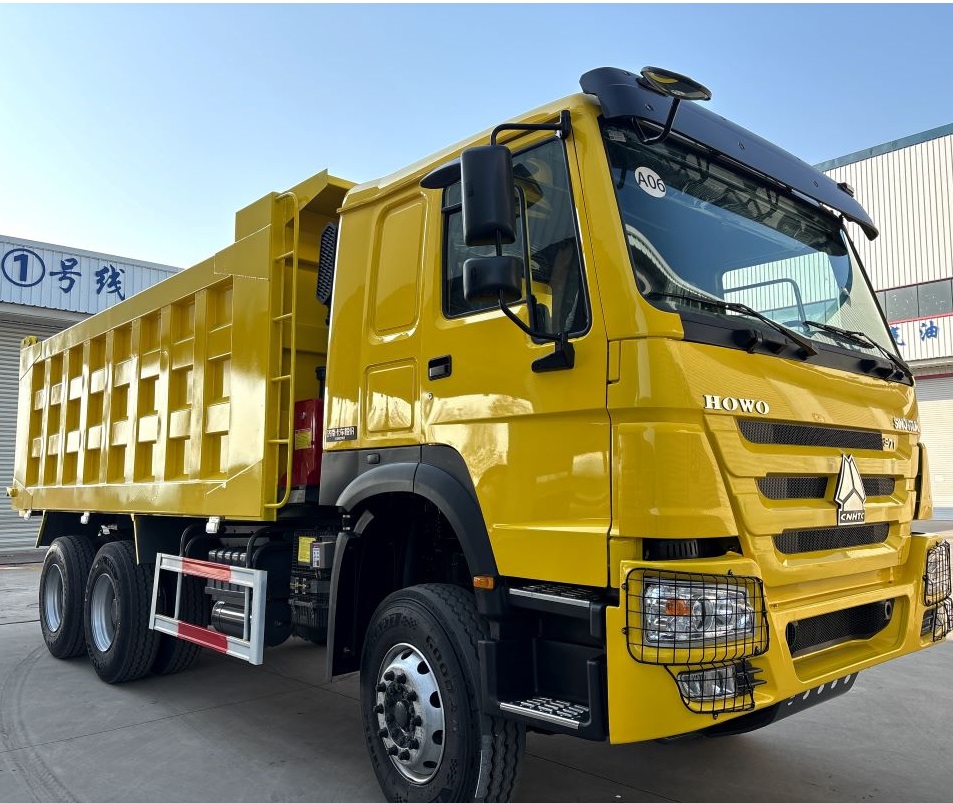

HOWO 371 Yellow Dump Truck
1.Howo dump truck is a left-side drive system, equipped with 371HP, WD615.47 engine. HW76 cabin, equipped with a sleeper. Dump truck can load about 20-30 tons of cargo, sturdy and durable to use, equipped with ABS braking system, widened brake and engine cylinder brake, ABS maintains directionality and operability under a certain braking coefficient, provides braking to keep the vehicle in a state of abnormal braking, and the vehicle brakes are stable. The typical overall performance and braking effect are greatly improved.

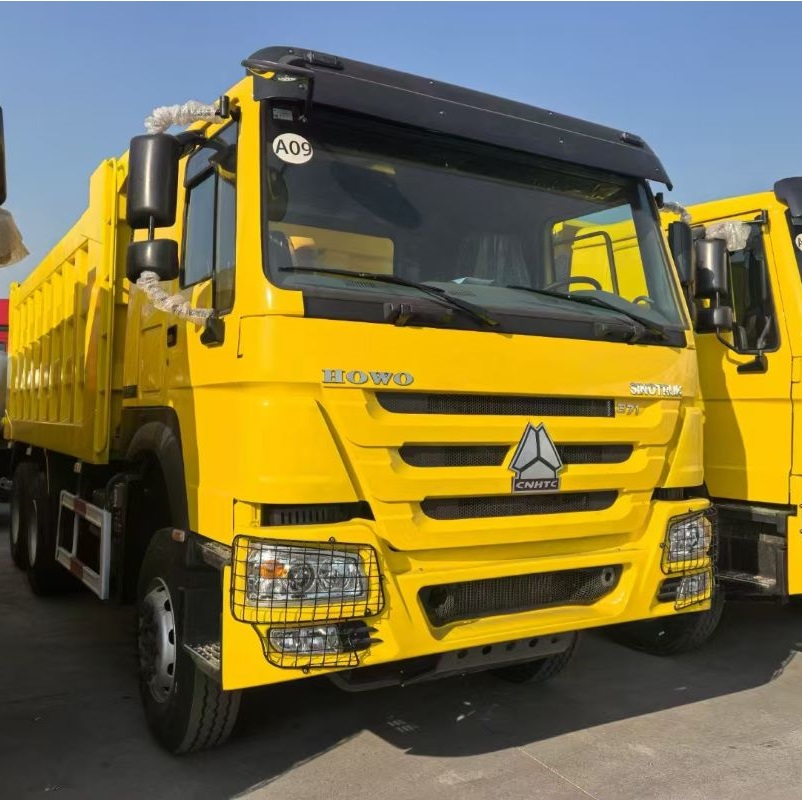

2.The cab body is an integral steel frame structure and has passed strict collision tests. Some models, such as HOWO T7H, are equipped with integrated reflectors, supplementary mirrors, front ground mirrors, etc. to improve the field of vision; the cab top and sunshade are equipped with dual-stage width lights, the bumper is made of thickened metal, and the headlights are built-in lenses, LEDs and other light sources to improve active safety.
HOWO 371 Yellow Dump Truck

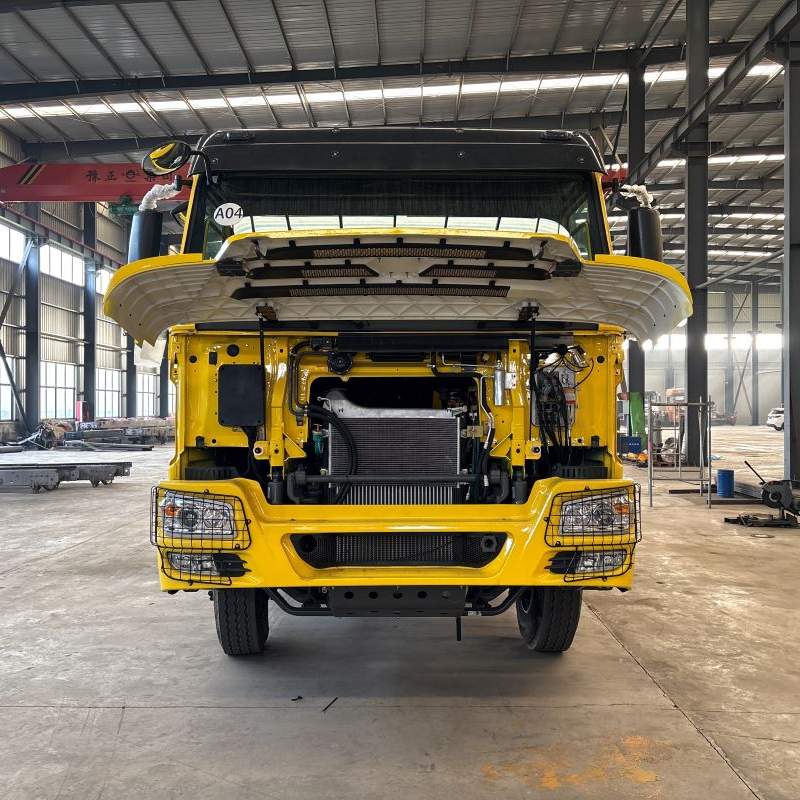

The engine is a Sinotruk 6-cylinder diesel engine. The pressure shape is 6X4, and the maximum horsepower is 371. The gearbox adopts the HW19710 elite gearbox, with up to 10 gears, and the continuity of power, transmission capacity and burst pressure are all very outstanding. HOWO trains the HOWO dump truck by using the tuning strategy of the transition stage, so that the engine and transmission can run in the best state. When you step on the accelerator, it will produce a constant response pressure, allowing the driver to feel the pleasure of real control. In general, the power and response capabilities of the HOWO dump truck have significant advantages among similar models.

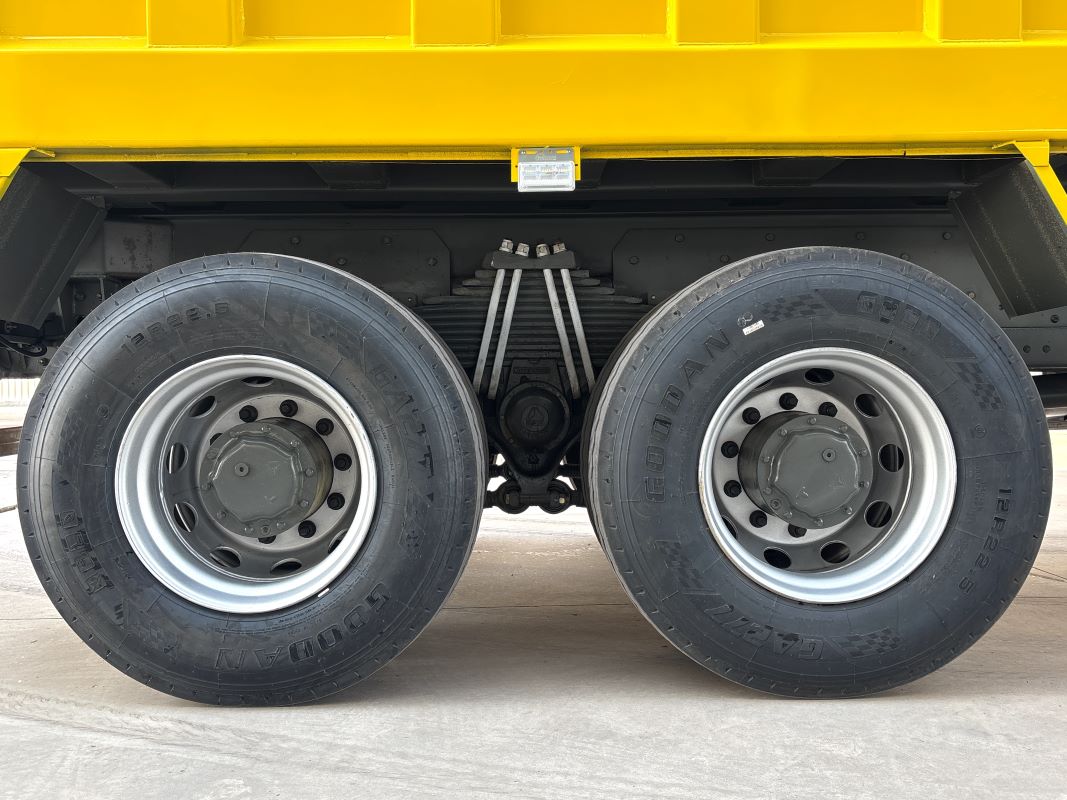

Iron steel rims and 12.00R20 radial steel tires, combined with the Mahjong block pattern design with strong grip, further improve the vehicle's ability to escape from difficult environments and durability. The optimized chassis layout not only expands the reserved space for later upper equipment, but also ensures stability and safety during transportation. Some are equipped with aluminum alloy wheels, which reduces the weight of the vehicle and helps reduce fuel consumption. At the same time, the front and rear axles and drive shafts of the vehicle adopt a maintenance-free design, reducing the number of maintenance and repair costs.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 6*4 | ||
Wheelbase/轴距(mm) | 3775+1400 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | WD615.47 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 371HP/276KW | ||
Cylinder in line 直列缸数 | 6 | ||
Air filter element/空滤器 | Oil bath air filter 油浴式空滤器 | ||
Displacement (L)/排量 | 9.97L | ||
Transmission/变速箱 | Type 类型 | Manual 手动 | |
Model/型号 | SINOTRUK HW19710 10-speed manual transmission 中国重汽HW19710 10挡 手动变速箱 | ||
Front axle/前轴 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | HF9 | ||
Rear axle/后桥 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | 16T AC16双级减速桥 double reduction driving axle Speed ratio 速比：5.262 | ||
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | Type 类型 | Bottle neck, double frame前宽后窄，双层车架 | |
Dimension (mm) 车架尺寸 | 940-850 (W) 300 (H) | ||
Section thickness (mm) 厚度 | 8+8 | ||
Suspension/悬架 | Front 前悬架 | Semi-elliptic 多片簧 12pcs | |
Rear 后悬架 | Semi-elliptic 多片簧 14pcs | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
CAB INTERIOR 驾驶室内部配置 | Driver seat 驾驶室座椅 | mechanical 机械式 | |
Lighter 点烟器 | Yes | ||
Entertainment 娱乐设置 | mp3+radio | ||
Cab maintanence titled 驾驶室翻转 | manual 手动翻转 | ||
Air conditioner 空调 | manual手动空调 | ||
Rear view mirror 后视镜 | manual手动 | ||
Sleeping bed 卧铺 | single bed 单卧铺 | ||

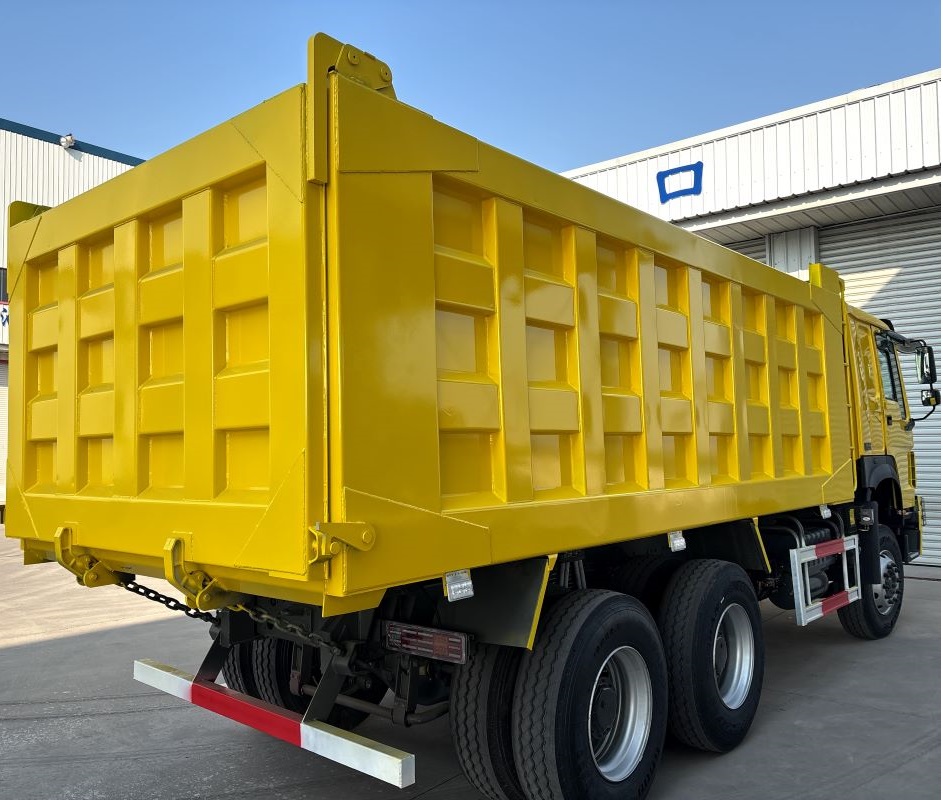

CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 5800x2300x1600(LxWxH) | |
Material 材质 | 高强钢 T700 | ||
Lifting system 举升缸 | JIAHENG 179 | ||
Thickness(mm) 板材厚度 | Bottom 14mm, sides 12mm 底板14mm，边板12mm | ||
Other 其他 | 600L Sprinkler淋水器 | ||
OVERALL DIMENSIONS/全车尺寸 | 8650×2550×3300 mm | ||
