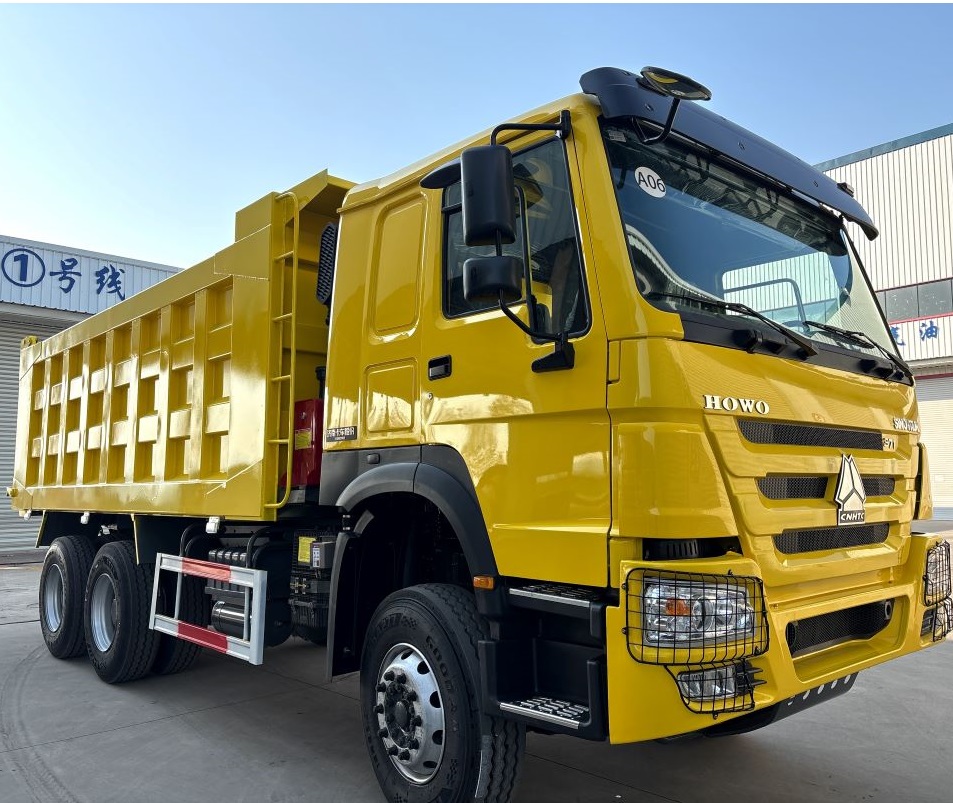

Diesel Howo 6X4 Dump Truck
1.Howo dump truck is mainly composed of a hydraulic dumping mechanism, a carriage, a frame and accessories. As a manufacturer. we specialize in used tipper dump trucks. We refurnish quality howo dump trucks made in 2014 to 2020 to meet clients’ requirements for transportation.
2.Equipped with a high-horsepower engine, it has strong power output and ample torque. It performs well under heavy loads and on hilly roads, with quick starts, smooth acceleration, and high transport efficiency.
3.The vehicle components have been specially designed and treated to provide excellent dustproof, waterproof, and corrosion-resistant properties. They can operate stably and reduce the risk of failure in harsh environments such as dusty mining areas and muddy construction sites.
Diesel Howo 6X4 Dump Truck
1.Our company promise one-year warranty preiod,during this period,under normal use if there is damage to the accessories,we will provide our customers with free new accessories,
2. Operational problems,technical configuration issures,etc. ,we will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department,will be better to serve the globle customers.
3. We offer high quality products and competitve price,customer's design is available.
4. You are guanranteed with fast deliveries and quick answer. Your satisfaction is our responsibility.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 6*4 | ||
Wheelbase/轴距(mm) | 3775+1400 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | WD615.47 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 371HP/276KW | ||
Cylinder in line 直列缸数 | 6 | ||
Air filter element/空滤器 | Oil bath air filter 油浴式空滤器 | ||
Displacement (L)/排量 | 9.97L | ||
Transmission/变速箱 | Type 类型 | Manual 手动 | |
Model/型号 | SINOTRUK HW19710 10-speed manual transmission 中国重汽HW19710 10挡 手动变速箱 | ||
Front axle/前轴 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | HF9 | ||
Rear axle/后桥 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | 16T AC16双级减速桥 double reduction driving axle Speed ratio 速比：5.262 | ||
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | Type 类型 | Bottle neck, double frame前宽后窄，双层车架 | |
Dimension (mm) 车架尺寸 | 940-850 (W) 300 (H) | ||
Section thickness (mm) 厚度 | 8+8 | ||
Suspension/悬架 | Front 前悬架 | Semi-elliptic 多片簧 12pcs | |
Rear 后悬架 | Semi-elliptic 多片簧 14pcs | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
CAB INTERIOR 驾驶室内部配置 | Driver seat 驾驶室座椅 | mechanical 机械式 | |
Lighter 点烟器 | Yes | ||
Entertainment 娱乐设置 | mp3+radio | ||
Cab maintanence titled 驾驶室翻转 | manual 手动翻转 | ||
Air conditioner 空调 | manual手动空调 | ||
Rear view mirror 后视镜 | manual手动 | ||
Sleeping bed 卧铺 | single bed 单卧铺 | ||
CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 5800x2300x1600(LxWxH) | |
Material 材质 | 高强钢 T700 | ||
Lifting system 举升缸 | JIAHENG 179 | ||
Thickness(mm) 板材厚度 | Bottom 14mm, sides 12mm 底板14mm，边板12mm | ||
Other 其他 | 600L Sprinkler淋水器 | ||
OVERALL DIMENSIONS/全车尺寸 | 8650×2550×3300 mm | ||
