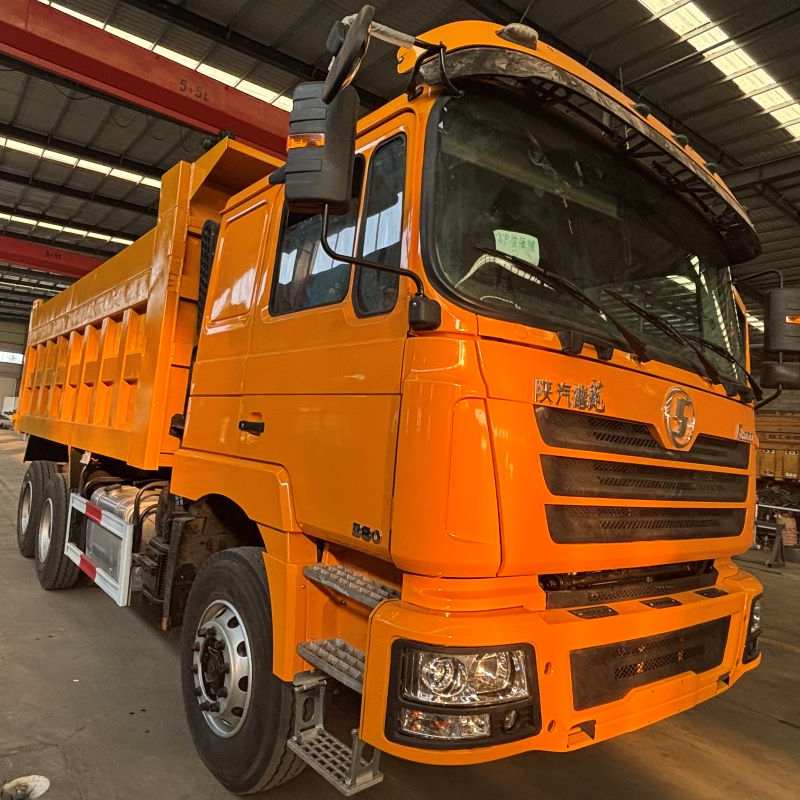

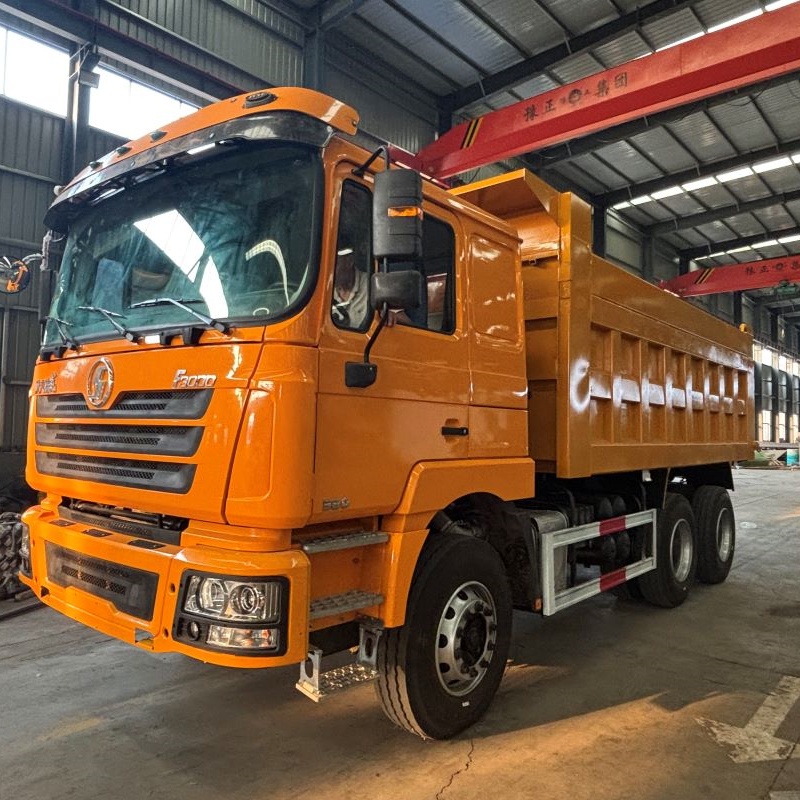

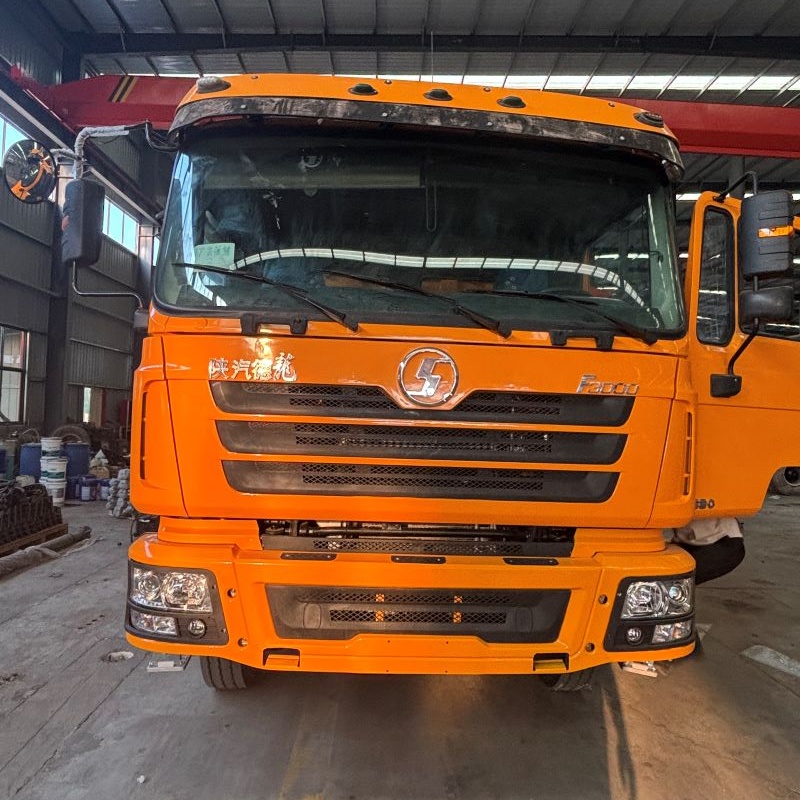

Shaanxi Auto Delong F3000 6×4 Dump Truck
1.Advanced braking system, equipped with ABS+ASR+EBL braking system, engine braking, etc., improves driving safety. Low noise environment, the cab is treated with sound insulation technology, reducing noise by 15%, creating a quiet driving environment.
2.It provides a variety of drive modes such as 6×4 to meet different transportation needs. It can adapt to various working conditions and is suitable for complex working conditions such as mining and urban construction slag transportation to meet diverse needs.
Shaanxi Auto Delong F3000 6×4 Dump Truck
The sturdy chassis design adopts MAN technology high-strength single-layer beam variable-section frame and is equipped with a 16T MAN double-stage casting bridge with strong load-bearing capacity. The optimized suspension system, front and rear multi-leaf spring suspension, and some models can be equipped with air suspension to adapt to complex road conditions and ensure transportation stability.
Shaanxi Auto Delong F3000 6×4 dump truck has become an ideal choice in the field of engineering transportation due to its strong power, reliable carrying capacity, comfortable driving experience, excellent safety performance, wide adaptability, lightweight design and perfect after-sales service.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 6*4 | ||
Wheelbase/轴距(mm) | 3800+1350mm | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | WEICHAI/潍柴 | |
Model/型号 | WP10 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 380HP/283KW | ||
Displacement (L)/排量 | 12L | ||
Transmission/变速箱 | Brand/品牌 | FAST/法士特 | |
Model/型号 | 12JSD180 | ||
Front axle/前轴 | Model/型号 | MAN 9T | |
Rear axle/后桥 | Model/型号 | 16T STR 双级减速桥 double reduction driving axle Speed ratio 速比：4.769 | |
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | 850x300(8+8) | ||
Suspension/悬架 | Front and rear multi-leaf spring twelve main flims + four horse riding 前后多片簧 十二主片+四骑马 | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
驾驶室 | 液压主座椅、四点机械悬浮驾驶室、电控自动恒温空调、手动摇窗机、手动翻转、油浴式空滤器、金属保险杠 二级上车踏板，165Ah 维护蓄电池 Hydraulic main seat, four-point mechanical suspension cab, electronically controlled temperature air conditioner, manual operation window shaker, manual flip, oil bath air filter, metal bumper Two-stage car pedal, 165Ah maintenance battery, SHACMAN identification | ||

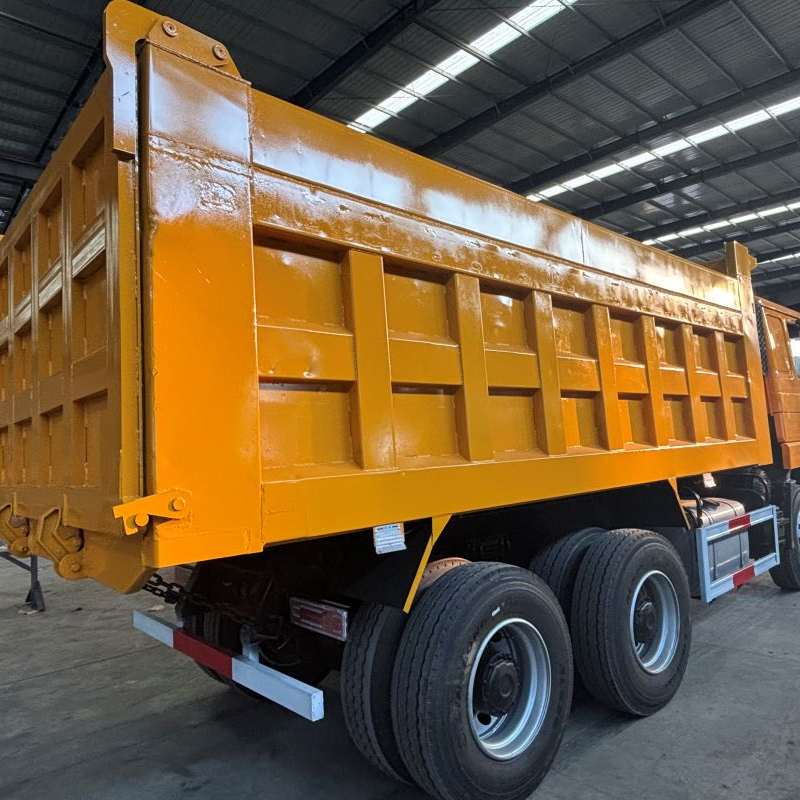

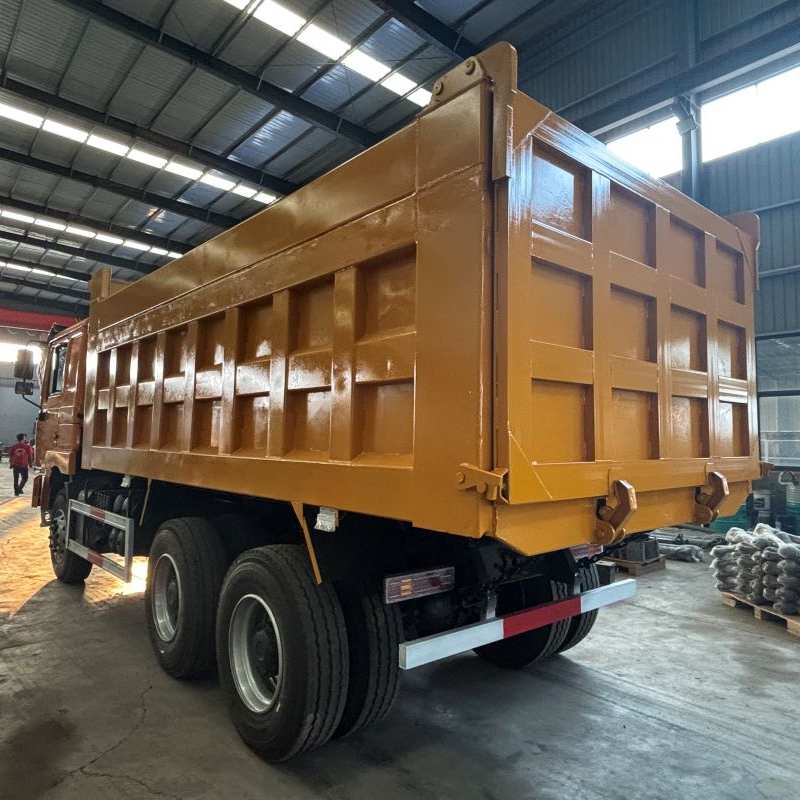

CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 5800x2300x1600(LxWxH) | |
Material 材质 | 高强钢 T700 | ||
Lifting system 举升缸 | JIAHENG 179 | ||
Thickness(mm) 板材厚度 | Bottom 14mm, sides 12mm 底板14mm，边板12mm | ||
Other 其他 | 600L Sprinkler淋水器 | ||
OVERALL DIMENSIONS/全车尺寸 | 8650×2550×3300 mm | ||
