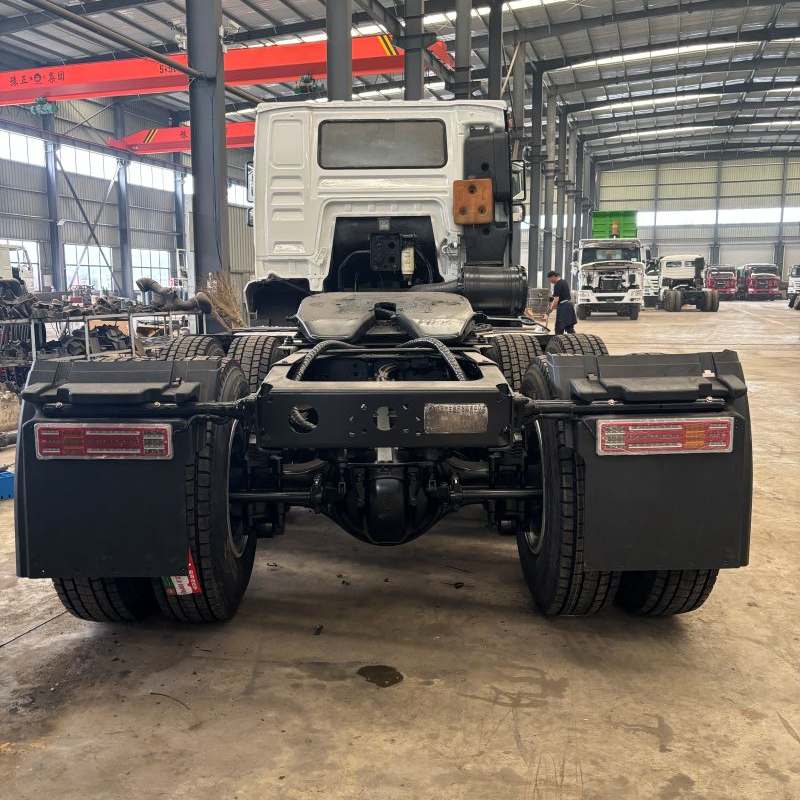

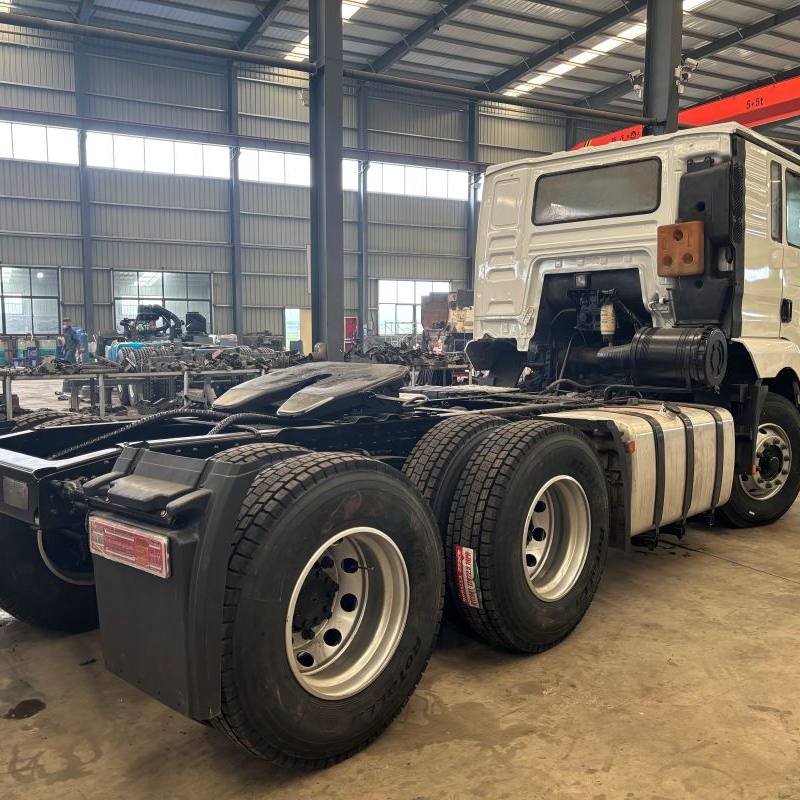

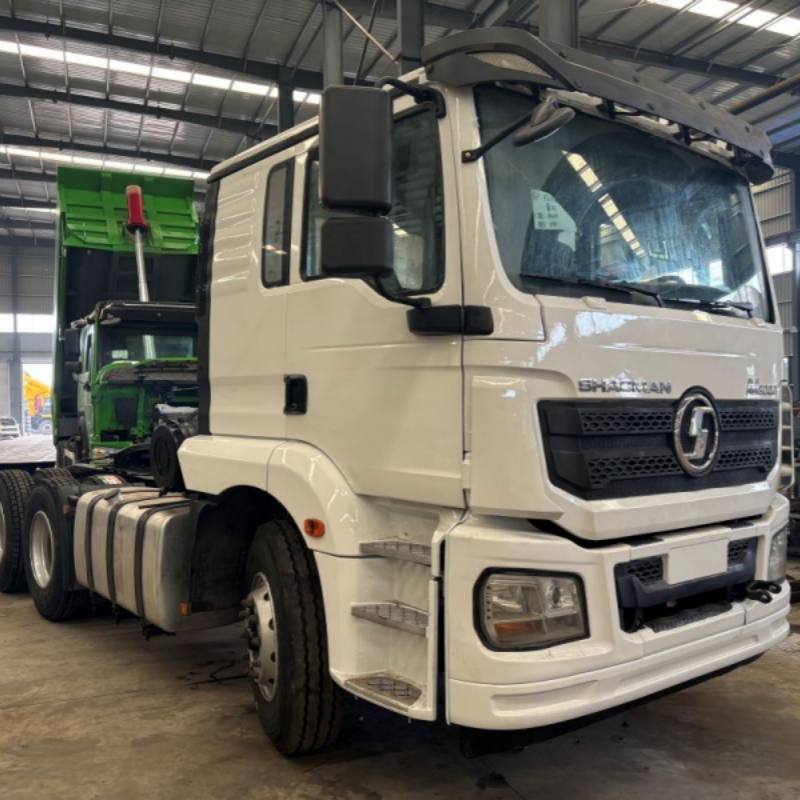

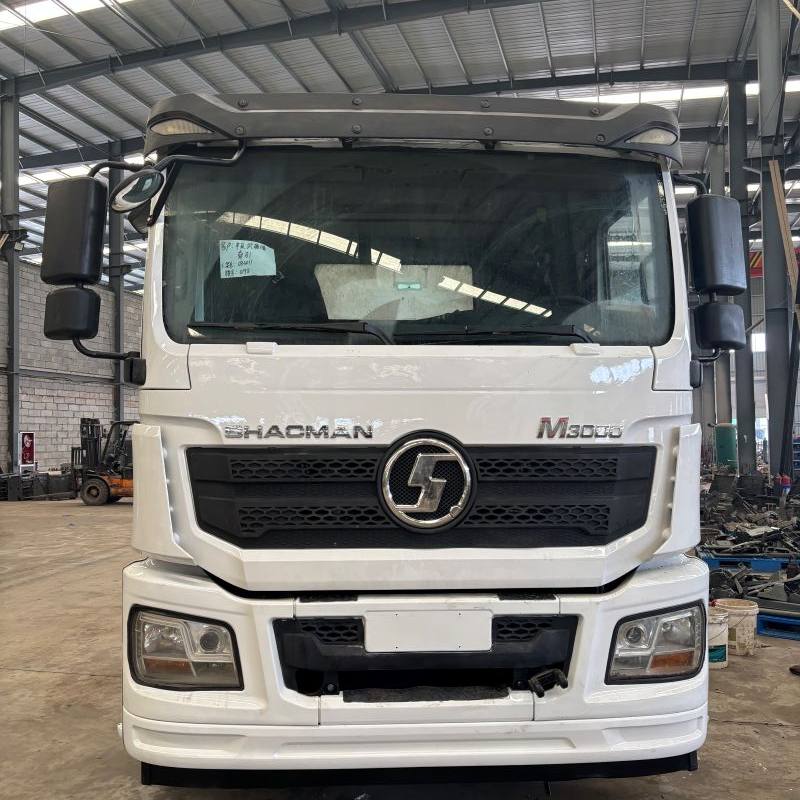

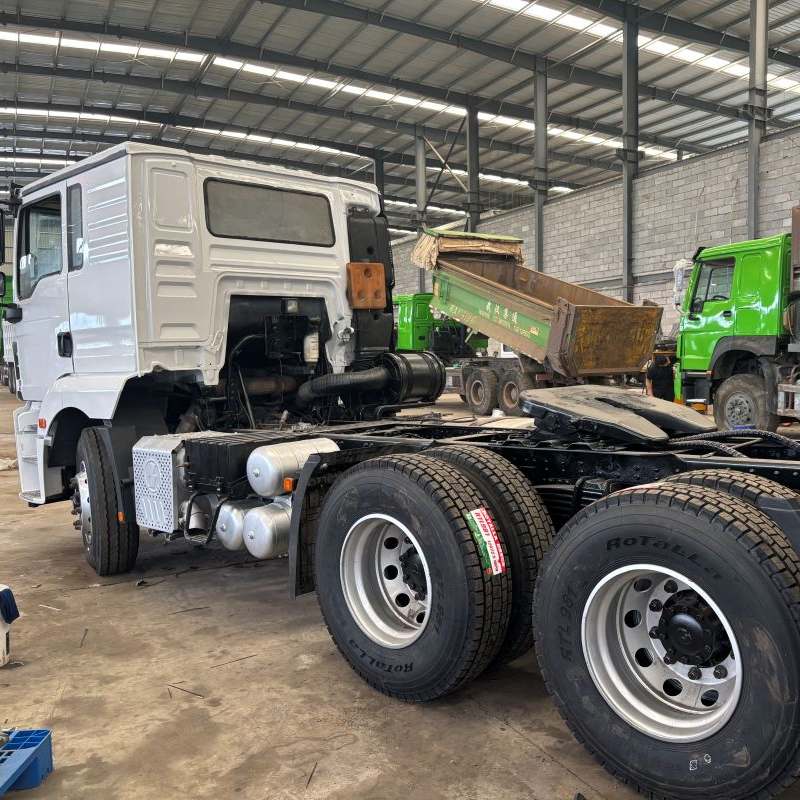

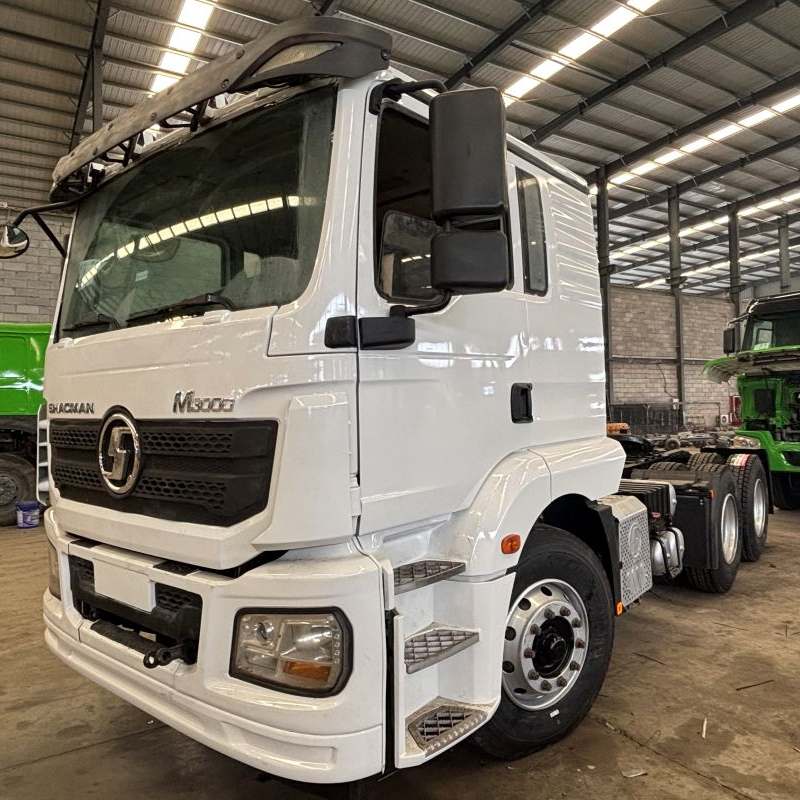

Shaanxi Automobile M3000 White Tractor Truck
1.Strong power, equipped with Weichai WP10 engine, 380 horsepower, to meet various working conditions. There is also a 460 horsepower version, matching the golden industrial chain assembly, with strong power and explosive force, suitable for medium and long-distance standard load composite transportation. Optimized transmission, matching Fast gearbox, such as 12JSD180TA manual gearbox, smooth shifting, high transmission efficiency, and improved fuel economy.
2.Fuel-saving technology, using low-speed, high-torque engines, saving 2-3kg of fuel per 100 kilometers, reducing operating costs. Braking system, standard engine exhaust brake, equipped with 220mm wide drum brake, shortening the braking distance by more than 10%, improving driving safety.
Shaanxi Automobile M3000 White Tractor Truck
Lightweight materials, using lightweight design and new materials, the vehicle has a low deadweight. For example, the version with a deadweight of 8.33 tons can reach a compliant loading weight of about 34.67 tons, which improves transportation efficiency. The short wheelbase design, with a wheelbase of only 3600mm and a small turning radius, is suitable for operations in narrow places such as ports, reducing the driving burden on drivers.
Maintenance-free components, 500,000 km maintenance-free rear stage and 5.5-ton front axle maintenance-free design, reduce maintenance costs and time. Fashionable appearance, family-style "stylish" appearance, headlights integrate multiple functions, "Z"-shaped LED daytime running lights to enhance recognition, and frame-type cab design synchronized with Europe.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | |
Driver position/驾驶员位置 | 左舵 Left Hand | |
Driving type/驱动形式 | 6*4 | |
Wheelbase/轴距(mm) | 3175+1400mm | |
Max. Speed/最高车速(km/h) | 100 km/h | |
Engine/发动机 | Brand/品牌 | WEICHAI/潍柴 |
Model/型号 | WP10 | |
Emission Standard/排放 | EURO II | |
Rated output power/功率（PS） | 380HP/283KW | |
Displacement (L)/排量 | 10L | |
Transmission/变速箱 | Brand/品牌 | FAST/法士特 |
Model/型号 | 12JSD180 | |
Front axle/前轴 | Model/型号 | MAN 9T |
Rear axle/后桥 | Model/型号 | HANDE 汉德 16T |
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | |
Steering/转向机 | ZF technology/ ZF技术 | |
Fuel tank/燃油箱 | 400L铝合金 Aluminum alloy | |
Frame/车架 | 850x300(8+8) | |
Wheels and tires/轮胎 | 12R22.5 | |
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | |
Parking brake:Air discharging with spring control/停车制动 | ||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | ||
驾驶室 | 液压主座椅、四点机械悬浮驾驶室、电控自动恒温空调、手动摇窗机、手动翻转、油浴式空滤器、金属保险杠 二级上车踏板，165Ah 维护蓄电池 Hydraulic main seat, four-point mechanical suspension cab, electronically controlled temperature air conditioner, manual operation window shaker, manual flip, oil bath air filter, metal bumper Two-stage car pedal, 165Ah maintenance battery, SHACMAN identification | |
