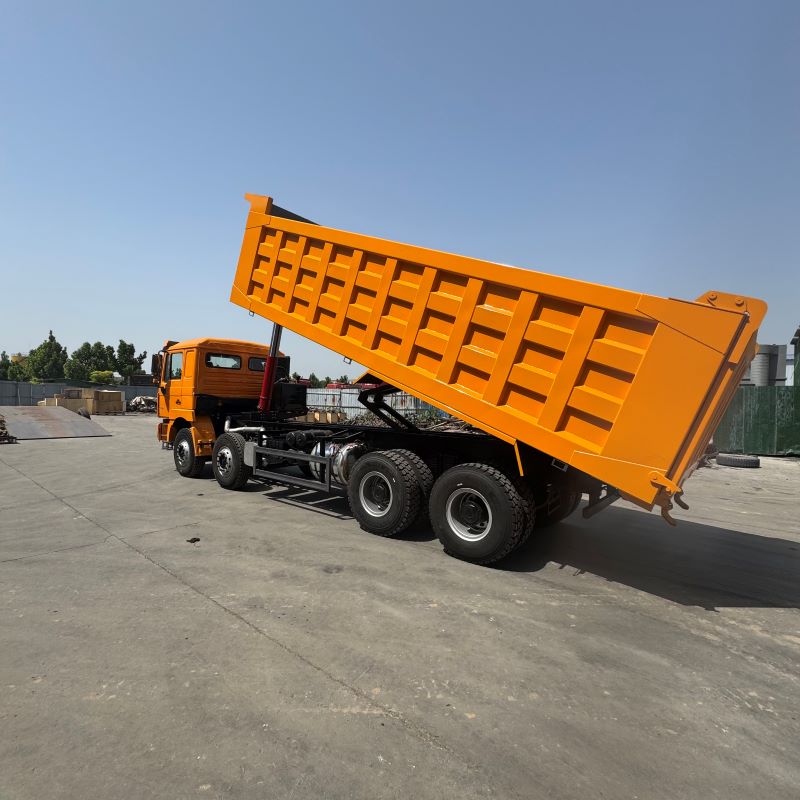

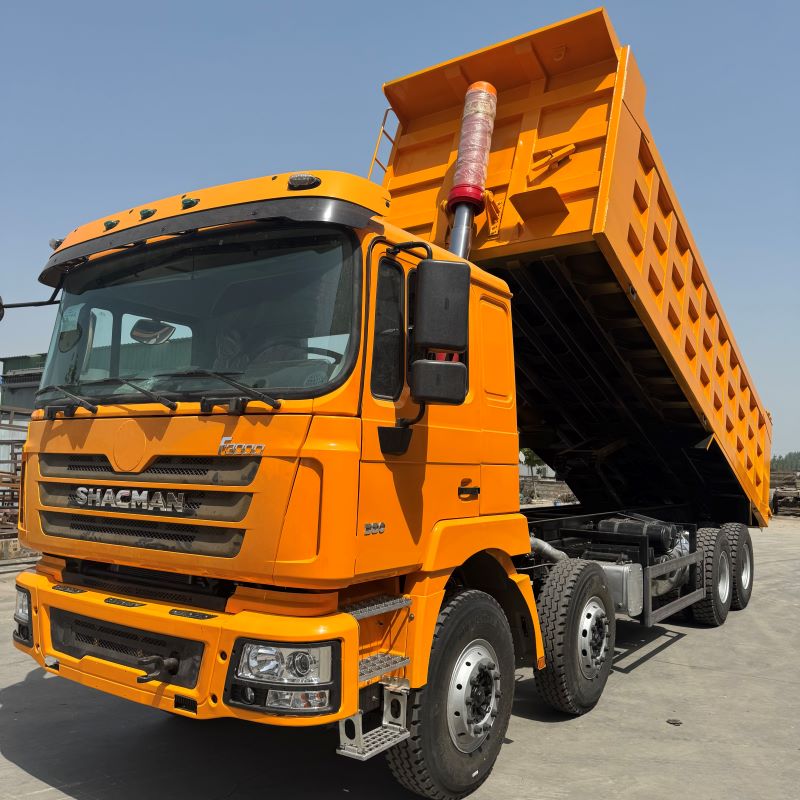

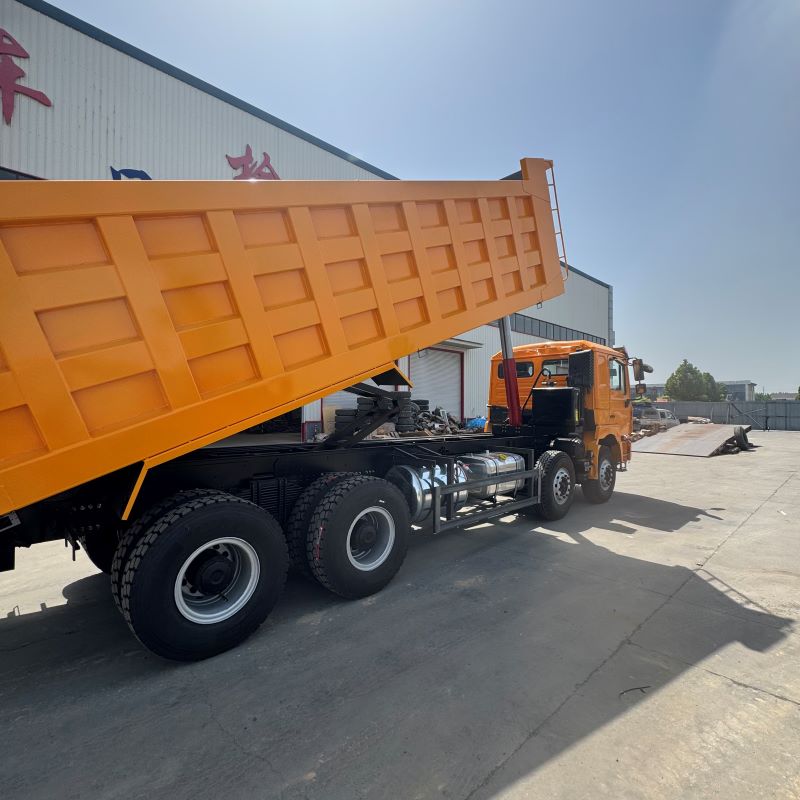

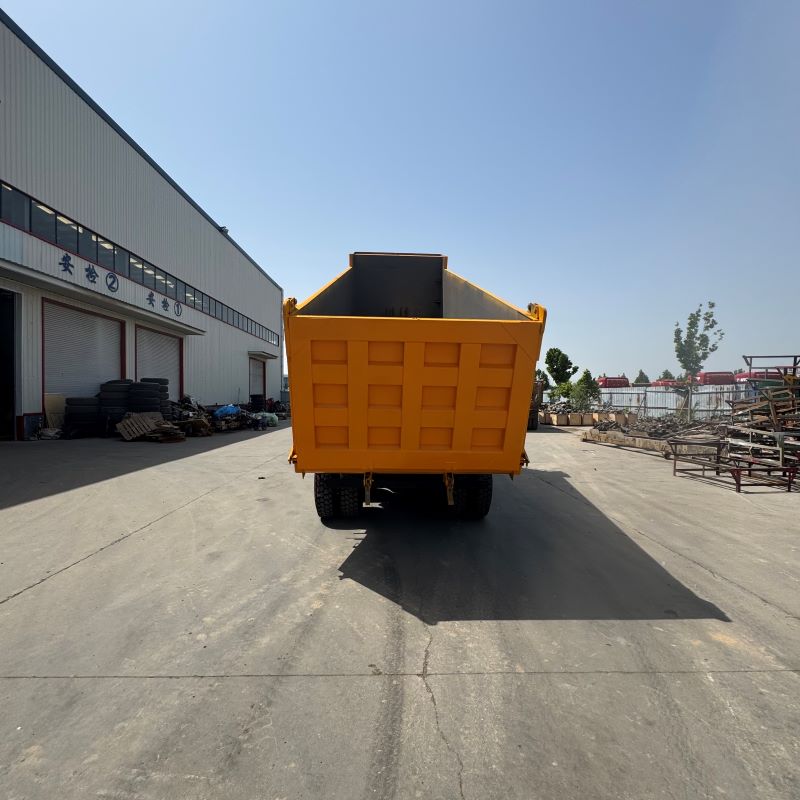

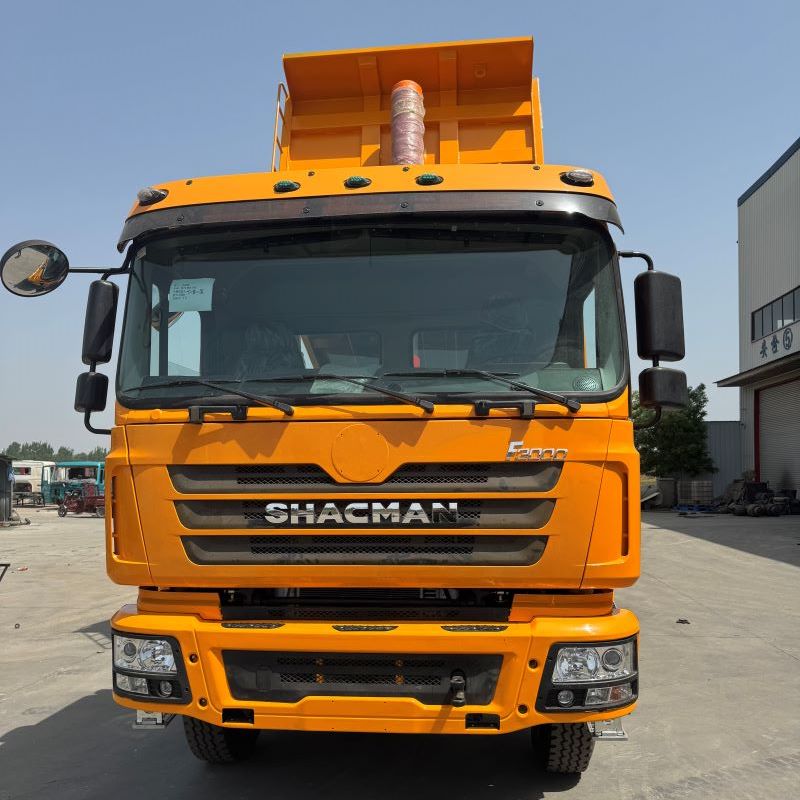

Shaanxi Automobile F3000 8×4 Dump Truck
1.A variety of horsepower options are available, including 290 hp, 336 hp, 340 hp, and 380 hp engine configurations to meet different working conditions. Well-known brand engine: Equipped with a Weichai engine, it has stable and reliable performance and sufficient power output.
2.Large-capacity cargo boxes, with lengths ranging from 8 to 9.3 meters, meet a variety of transportation needs. High rated loads, with a rated load of over 15 tons, improve transportation efficiency.
Shaanxi Automobile F3000 8×4 Dump Truck
The high-quality chassis, based on Shaanxi Automobile's heavy-duty truck chassis, has undergone rigorous testing and is suitable for a variety of complex road conditions. Durable features, including key components such as the clutch and suspension, are constructed from high-quality materials to ensure long-term stable operation. A safe and stable braking system is equipped with a reliable braking system to ensure driving safety. A robust body structure: The high strength of the body effectively protects the driver and cargo.
The 8×4 drive system provides strong traction and passability, adapting to complex road conditions. The reasonable wheelbase and well-designed wheelbase provide a small turning radius and high flexibility.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 8*4 | ||
Wheelbase/轴距(mm) | 1950+3225+1350 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | WEICHAI/潍柴 | |
Model/型号 | WP10 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 380HP/283KW | ||
Displacement (L)/排量 | 12L | ||
Transmission/变速箱 | Type 类型 | FAST/法士特 | |
Model/型号 | 12JSD180 | ||
Front axle/前轴 | Model/型号 | MAN 9T | |
Rear axle/后桥 | Model/型号 | 16T STR 双级减速桥 double reduction driving axle Speed ratio 速比：4.769 | |
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | Type 类型 | Bottle neck, double frame前宽后窄，双层车架 | |
Dimension (mm) 车架尺寸 | 940-850 (W) 300 (H) | ||
Section thickness (mm) 厚度 | 8+8+8 | ||
Suspension/悬架 | Front 前悬架 | Semi-elliptic 多片簧 12pcs | |
Rear 后悬架 | Semi-elliptic 多片簧 14pcs | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
驾驶室 | 液压主座椅、四点机械悬浮驾驶室、电控自动恒温空调、手动摇窗机、手动翻转、油浴式空滤器、金属保险杠 二级上车踏板，165Ah 维护蓄电池 Hydraulic main seat, four-point mechanical suspension cab, electronically controlled temperature air conditioner, manual operation window shaker, manual flip, oil bath air filter, metal bumper Two-stage car pedal, 165Ah maintenance battery, SHACMAN identification | ||
CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 7800x2300x1500+250mm (LxWxH) | |
Material 材质 | 高强钢 T700 | ||
Lifting system 举升缸 | JIAHENG 191 | ||
Thickness(mm) 板材厚度 | Bottom 10mm, sides 8mm 底板10mm，边板8mm | ||
OVERALL DIMENSIONS/全车尺寸 | 10080×2550×3300 mm | ||
