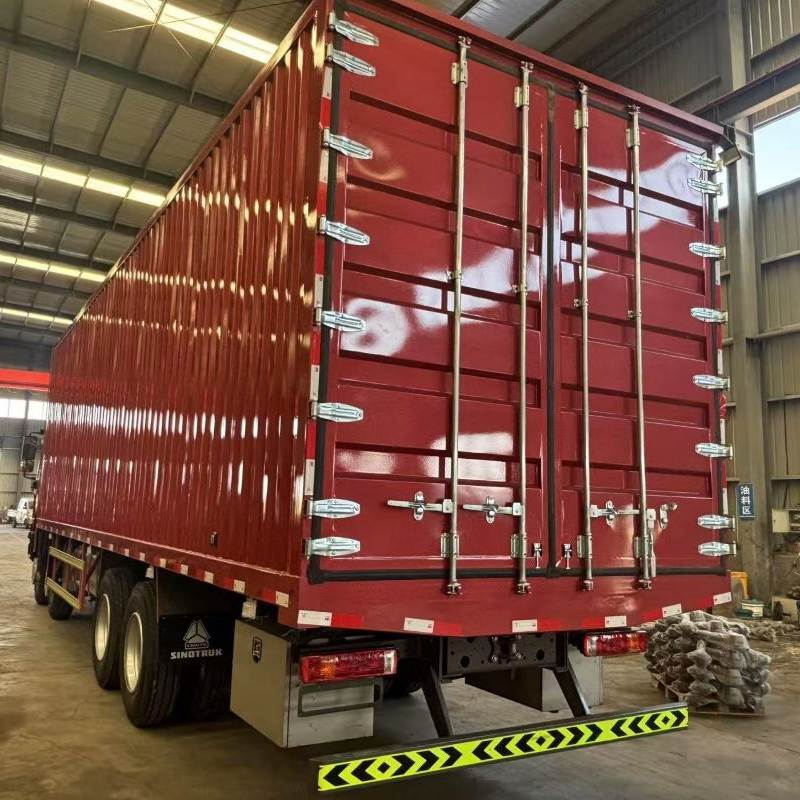

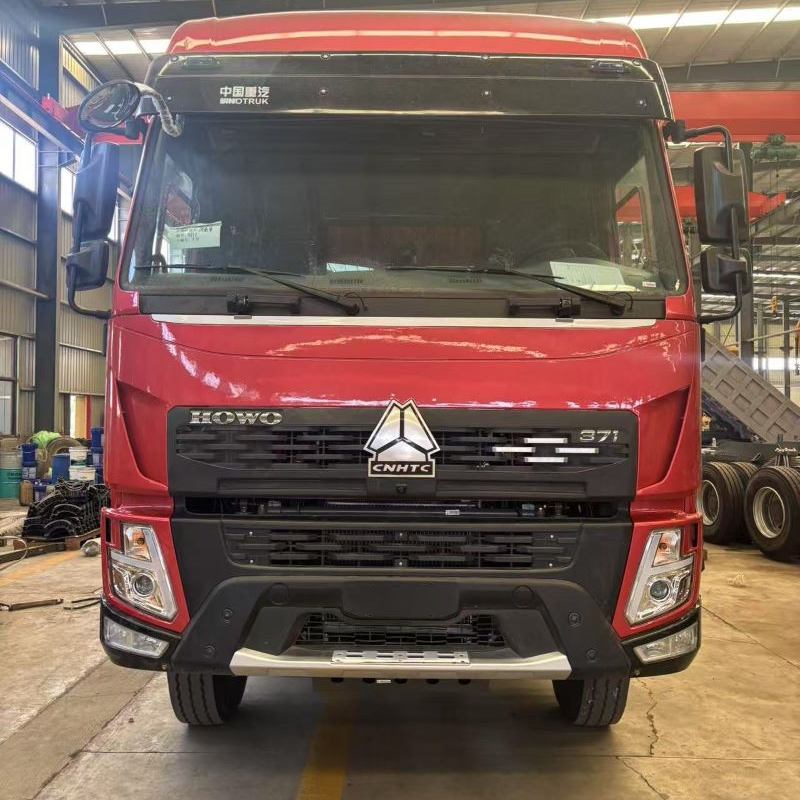

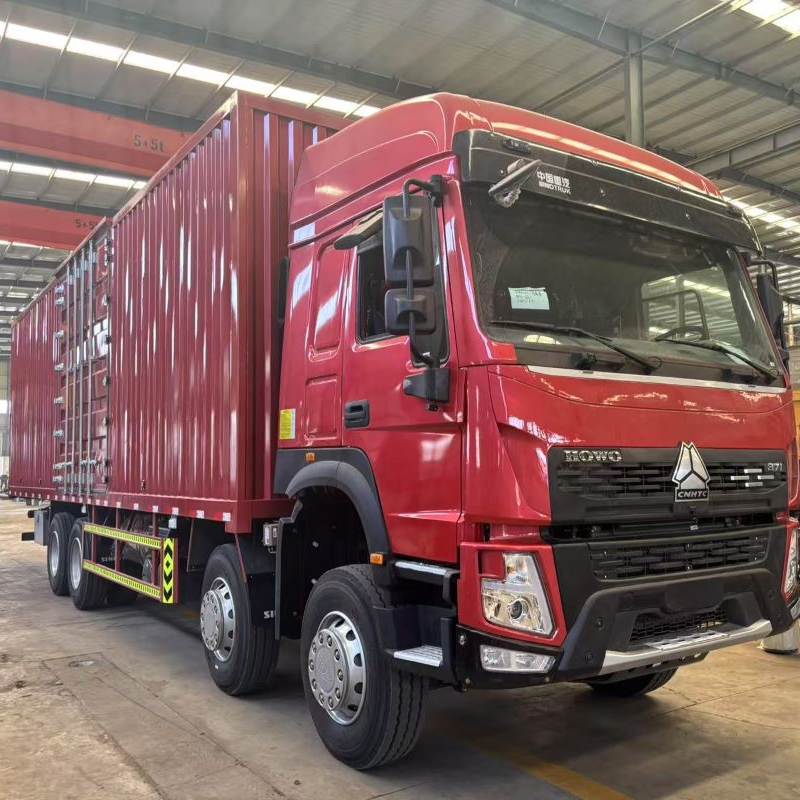

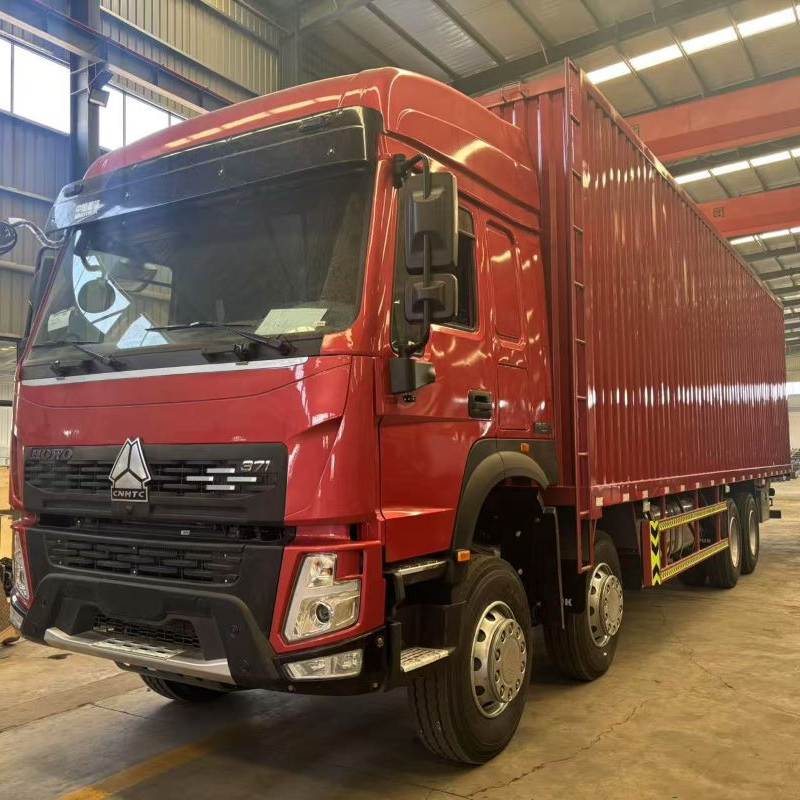

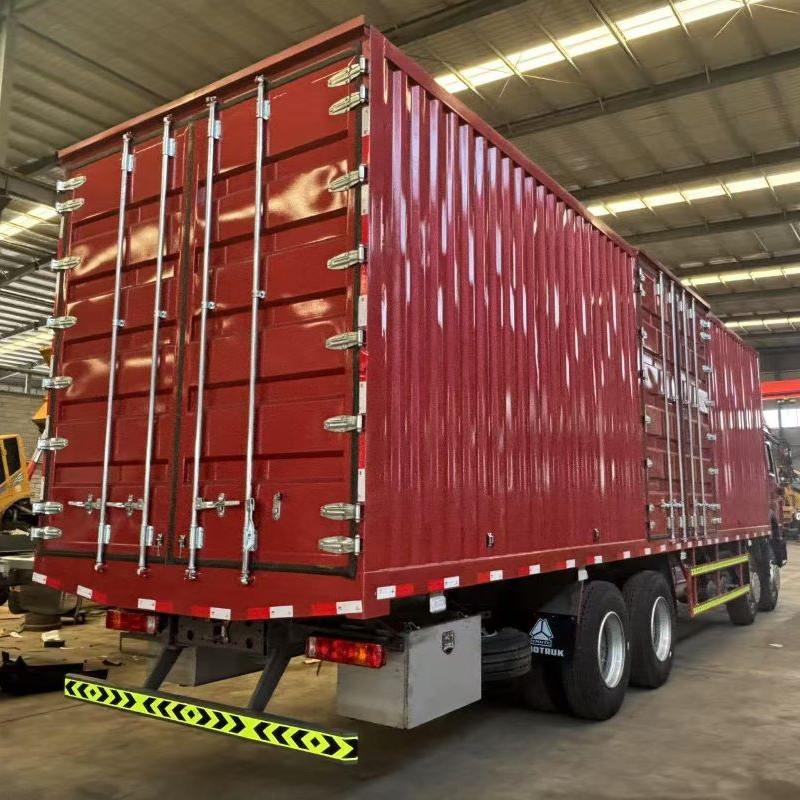

HOWO 8×4 Red Box Truck
1.The highly efficient WD615.47 engine boasts a maximum power of 371 horsepower and a maximum torque of 2,300 Nm, providing powerful power to meet diverse transportation needs.
2.The intelligent transmission, matched to the Sinotruk HW19710 10-speed manual transmission, delivers smooth shifting and quick response, improving fuel economy.
3.The highly efficient drive axle, utilizing German MAN technology, delivers high transmission efficiency and enhances overall vehicle performance.
HOWO 8×4 Red Box Truck
The connected car system monitors vehicle status in real time, provides remote diagnostics and maintenance recommendations, and improves operational efficiency. The multimedia conafiguration, equipped with a 12.3-inch LCD screen, navigation system, and reversing camera, provides a wealth of entertainment and navigation features.
Depending on the model, the cargo box can be 9.5 to 9.6 meters long, 2.35 to 2.47 meters wide, and 1.5 to 2.5 meters high, meeting diverse cargo transport needs. The box is constructed of high-strength steel or aluminum alloy, featuring a lightweight design that increases cargo capacity.The cab options include a high-roof double-bedroom or flat-roof single-bedroom cabin, offering spacious interiors for comfortable rest. Comfort features include airbag-assisted shock-absorbing seats, a multi-function steering wheel, automatic air conditioning, power doors and windows, and power rearview mirrors, enhancing driving comfort.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 8*4 | ||
Wheelbase/轴距(mm) | 1950+4225+1350 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | WD615.47 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 371HP/276KW | ||
Cylinder in line 直列缸数 | 6 | ||
Displacement (L)/排量 | 9.97L | ||
Transmission/变速箱 | Type 类型 | Manual 手动 | |
Model/型号 | SINOTRUK HW19710 10-speed manual transmission 中国重汽HW19710 10挡 手动变速箱 | ||
Front axle/前轴 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | HF9 | ||
Rear axle/后桥 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | HC13 速比：4.7 | ||
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | Type 类型 | Bottle neck, double frame前宽后窄，双层车架 | |
Dimension (mm) 车架尺寸 | 940-850 (W) 300 (H) | ||
Section thickness (mm) 厚度 | 8+8 | ||
Suspension/悬架 | Front 前悬架 | Semi-elliptic 多片簧 12pcs | |
Rear 后悬架 | Semi-elliptic 多片簧 14pcs | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
驾驶室配置 （高顶） | Driver seat 驾驶室座椅 | mechanical 机械式 | |
Lighter 点烟器 | Yes | ||
Entertainment 娱乐设置 | mp3+radio | ||
Cab maintanence titled 驾驶室翻转 | manual 手动翻转 | ||
Air conditioner 空调 | manual手动空调 | ||
Rear view mirror 后视镜 | manual手动 | ||
Sleeping bed 卧铺 | single bed 单卧铺 | ||
货箱参数 | Material 材质 | 高强钢 Q355 | |
Lifting system 举升缸 | JIAHENG 191 | ||
Thickness(mm) 板材厚度 | Bottom 5mm, sides 3mm 底板5mm，边板3mm | ||
DIMENSIONS (mm) 尺寸 | 10200x2700x2700(LxWxH) | ||
Other 其他 | 工具箱（两个）Toolbox (two) | ||
