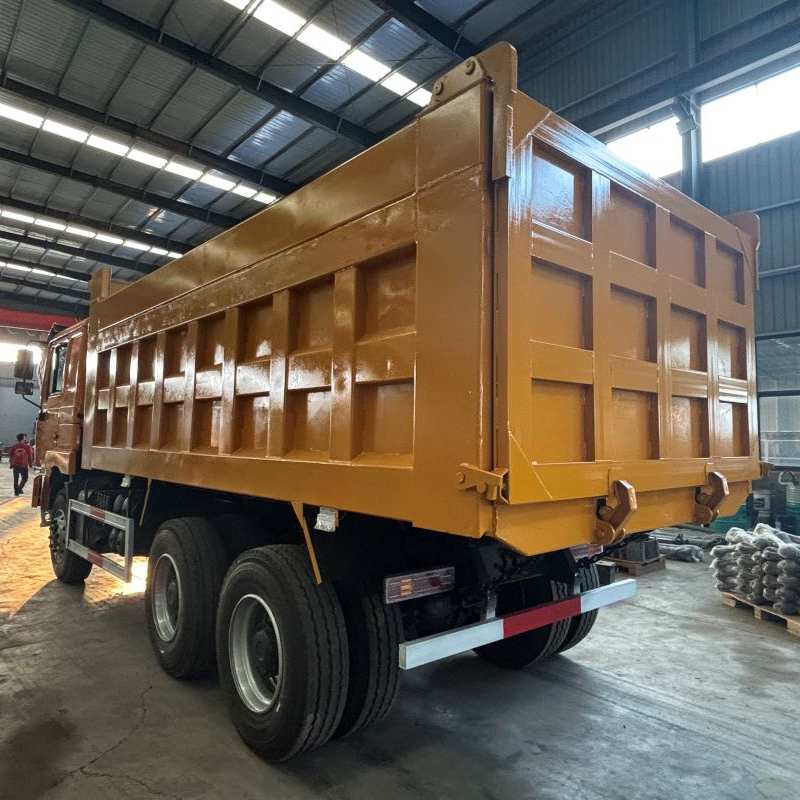

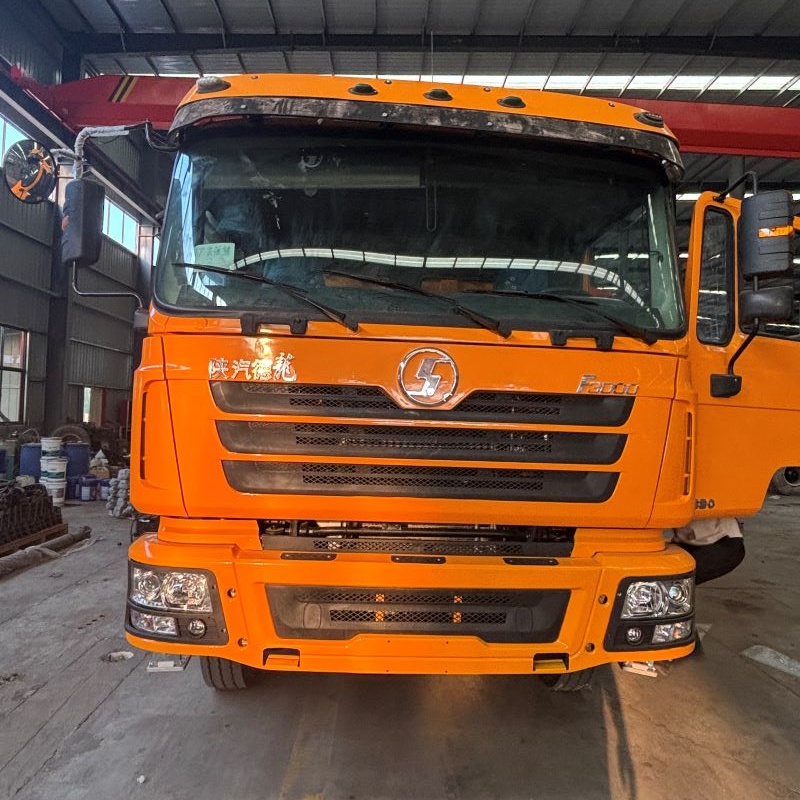

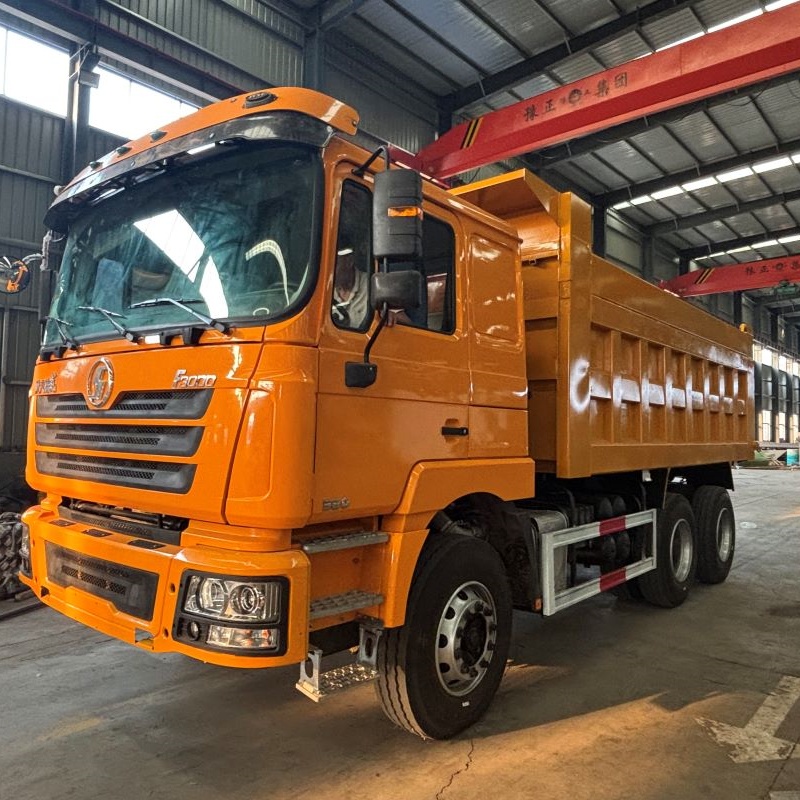

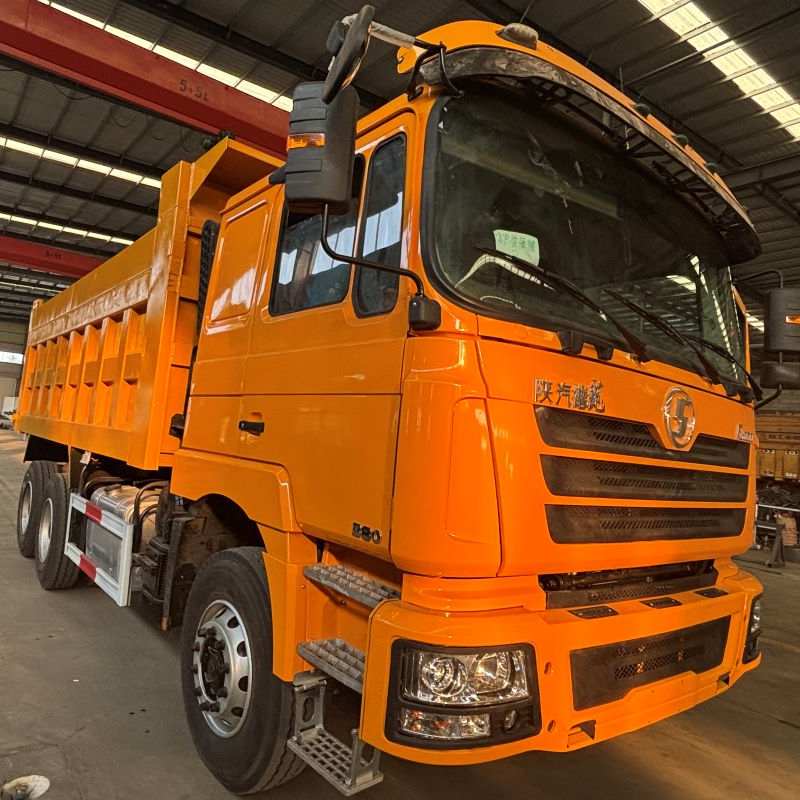

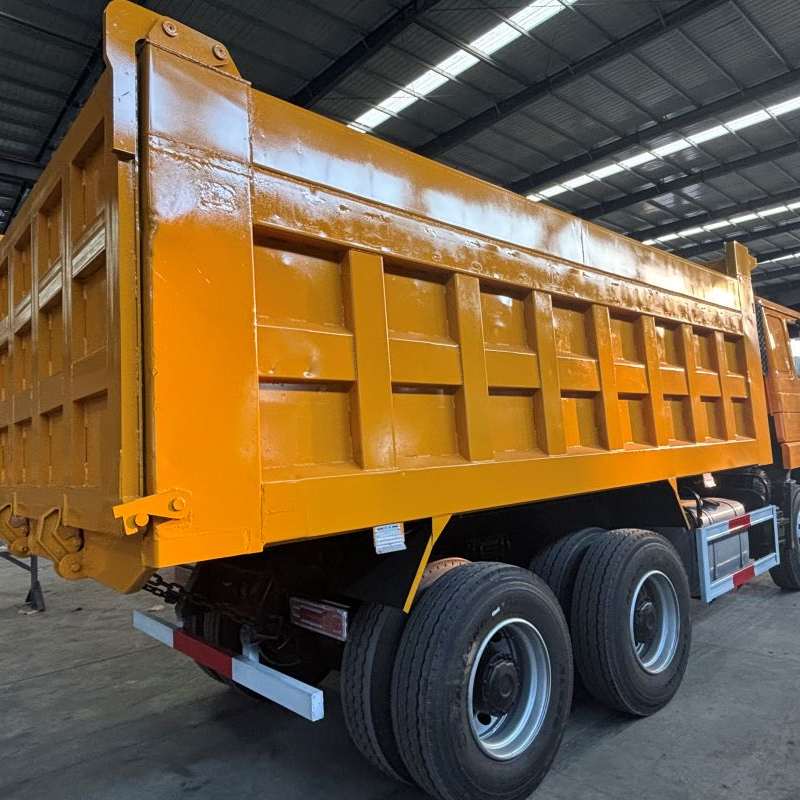

Shaanxi Automobile F3000 6×4 Yellow Square Box
1.The engine configuration is diverse, equipped with Weichai or Cummins engines, covering a wide power range. For example, the Weichai WP10 engine has a maximum horsepower of 380 and a torque of 1900N·m. It has high reliability and inherits the advantage of high reliability of Weichai products. It has nearly 70 years of engine research and development experience, strong power, strong load capacity, and meets the requirements of load mutation conditions.
2.The driving form is superior, adopting 6×4 drive, front axle drive plus rear double axle drive, which improves the passability and load-bearing capacity and adapts to complex road conditions. The gearbox is well matched, equipped with Fast gearbox, such as 10JSD140, 10JSD180, etc., with a reasonable number of gears, smooth shifting and high transmission efficiency.
Shaanxi Automobile F3000 6×4 Yellow Square Box
The body size is large, the body length is generally more than 8 meters, the cargo box length can be 5.4 meters, 5.6 meters, 7 meters, etc., the width and height are also large, providing sufficient loading space. The chassis structure is solid, made of high-strength steel, and the optimized design lowers the center of gravity and improves driving stability. For example, the Hande 16-ton MAN double-stage cast bridge has a strong carrying capacity.
It is suitable for transportation operations in complex working conditions such as urban construction waste, mines, construction sites, etc. It has strong off-road and carrying capacity and can meet various engineering transportation needs.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 6*4 | ||
Wheelbase/轴距(mm) | 3800+1350mm | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | WEICHAI/潍柴 | |
Model/型号 | WP10 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 380HP/283KW | ||
Displacement (L)/排量 | 12L | ||
Transmission/变速箱 | Brand/品牌 | FAST/法士特 | |
Model/型号 | 12JSD180 | ||
Front axle/前轴 | Model/型号 | MAN 9T | |
Rear axle/后桥 | Model/型号 | 16T STR 双级减速桥 double reduction driving axle Speed ratio 速比：4.769 | |
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | 850x300(8+8) | ||
Suspension/悬架 | Front and rear multi-leaf spring twelve main flims + four horse riding 前后多片簧 十二主片+四骑马 | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
驾驶室 | 液压主座椅、四点机械悬浮驾驶室、电控自动恒温空调、手动摇窗机、手动翻转、油浴式空滤器、金属保险杠 二级上车踏板，165Ah 维护蓄电池 Hydraulic main seat, four-point mechanical suspension cab, electronically controlled temperature air conditioner, manual operation window shaker, manual flip, oil bath air filter, metal bumper Two-stage car pedal, 165Ah maintenance battery, SHACMAN identification | ||
CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 5800x2300x1600(LxWxH) | |
Material 材质 | 高强钢 T700 | ||
Lifting system 举升缸 | JIAHENG 179 | ||
Thickness(mm) 板材厚度 | Bottom 14mm, sides 12mm 底板14mm，边板12mm | ||
Other 其他 | 600L Sprinkler淋水器 | ||
OVERALL DIMENSIONS/全车尺寸 | 8650×2550×3300 mm | ||
