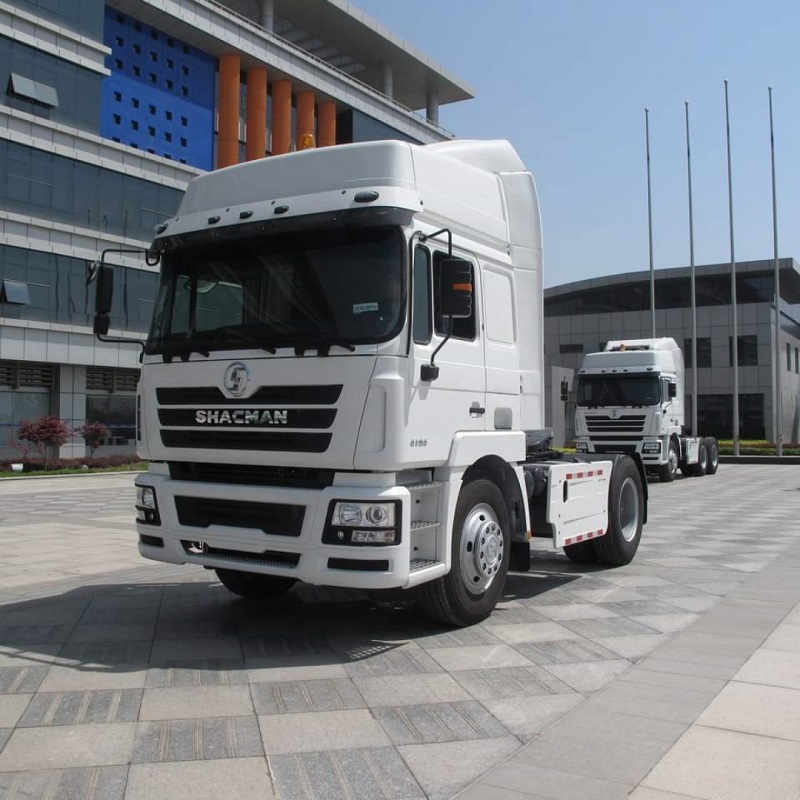

Shacman F3000 Tractor Truck

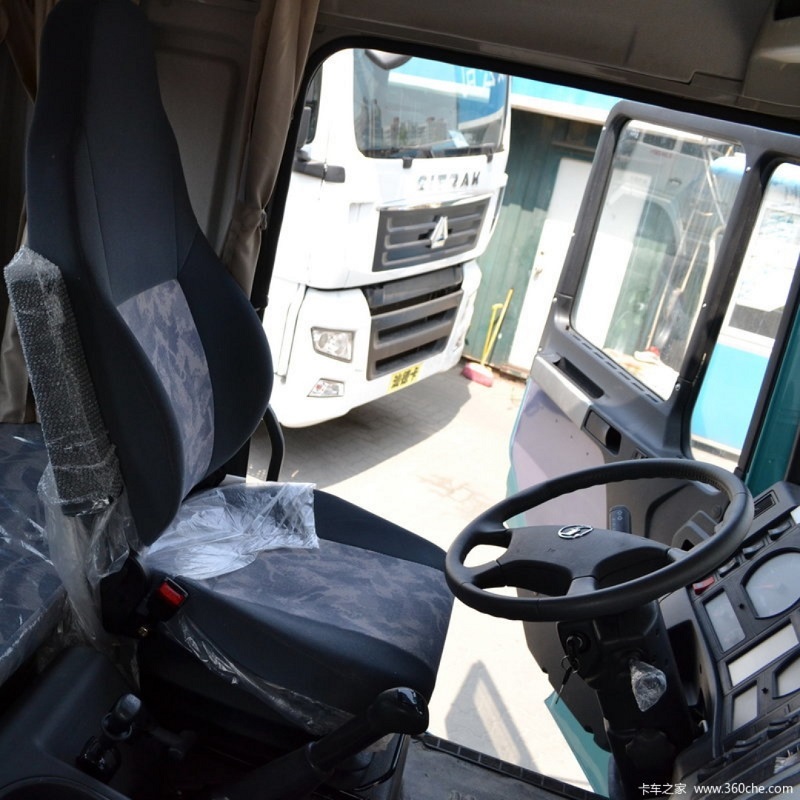

1.The tractor is equipped with a comfortable cab and ergonomic features that provide a comfortable driving experience for long-distance transportation, ensuring the driver's physical and mental health and work efficiency.
2.Since truck tractors are often required to travel on long highways, they are equipped with comfortable cabs and advanced handling systems to provide a comfortable driving experience and stable handling performance.
3.Under the premise of ensuring the strength and safety of the vehicle, the lightweight design of the body, frame and other components reduces the deadweight of the vehicle, which in turn reduces the driving resistance of the vehicle, further improves fuel economy and saves operating costs.
Shacman F3000 Tractor Truck
Shacman Tracotr Truck adopts key advanced assemblies and makes reasonable technical connections.
The vehicle layout is reasonable and the main assemblies are coordinated, unified and reliable, which
makes it perform well in terms of vehicle power, economy, reliability and environmental protection.
Details

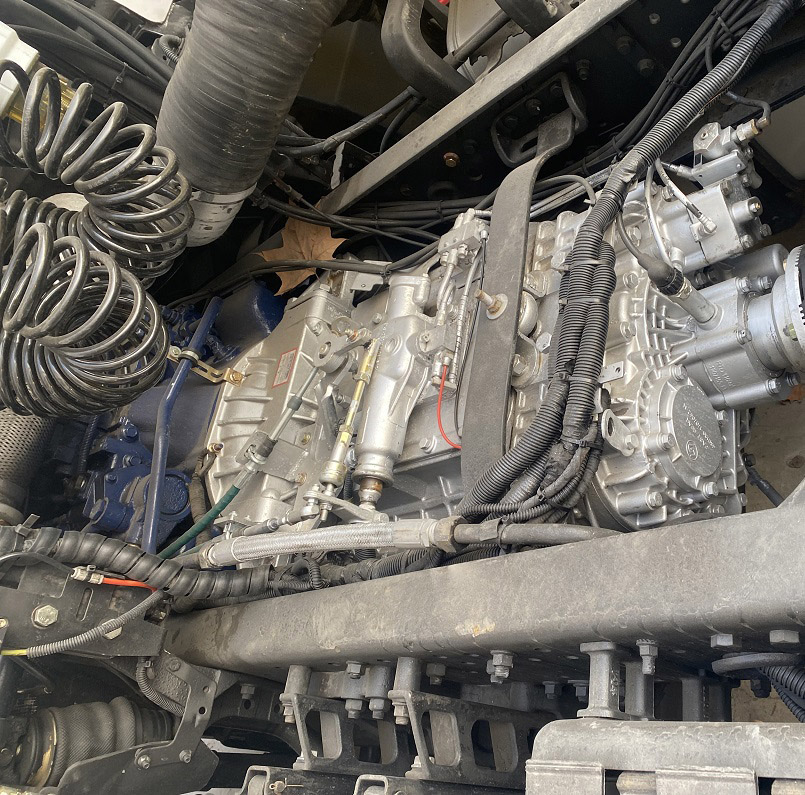

The Shacman F3000 transmission adopts advanced gear design and shifting mechanism, which can
achieve smooth shifting operation, reduce the sense of frustration during shifting, make the vehicle more
stable during acceleration and deceleration, and improve driving comfort; its internal structure is reaso-
-nably designed, and the shifting mechanism is responsive, which can quickly complete the shifting action,
effectively shorten the shifting time, improve the power transmission efficiency of the vehicle, and enable
the vehicle to adapt to different road conditions and driving needs more quickly during driving.
The F3000 tractor uses an aluminum alloy fuel tank, which is lightweight and can reduce the vehicle's
weight to a certain extent, thereby improving fuel economy and reducing transportation costs. At the same
time, the aluminum alloy fuel tank has strong corrosion resistance and can resist the erosion of the chemical
substances in the oil, thus extending the service life of the fuel tank.
Product Paramenters
MODEL | SX4186NN361 | |
Driver position | Left Hand | |
Driving type | 4*2 | |
Wheelbase(mm) | 3600 | |
Max. Speed(km/h) | 91 km/h | |
Engine | Brand | WP |
Model | WP10.300E40 | |
Emission Standard | EURO IV | |
Rated output power（PS） | 300HP/221KW | |
Displacement (L) | 9.726L | |
Transmission
| Brand | FAST |
Model | 9JS135B | |
Rear axle | Brand | SINOTRUK |
Argument | 11000kg 13T MAN Speed ratio ：4.111 | |
Clutch | ￠430 diaphragm clutch | |
Steering | ZF technology | |
Frame | (940-850)×300(8)mm | |
Fuel tank | 400LAluminum alloy | |
Wheels and tires | 12R22.5 | |
Cabin | The saddle height from the ground 1300±20mm center control lock (with remote control) extended high top cab with top side guide hood Extended flat top cab with top guide hood | |
