Drilling Machine 200 To 300m
Strong mobility: It adopts HOWO brand 6x4 truck chassis, which is small in overall size and light in weight. It can be moved to the drilling site quickly and conveniently without carrying large equipment, which can reduce manpower and material costs. It can also be flexibly transferred between different work sites and adapt to various complex construction environments, which improves the efficiency of drilling operations and reduces transportation costs.
Good disassembly: Some drilling rigs can be disassembled into several parts such as the main engine, pump station, and operating console. They are easy to disassemble and carry, and are convenient for transfer and installation in different work sites. For example, the KD300 tunnel drilling rig weighs only 300kg, and its various parts have a compact structure, making it convenient to transport and install.
Drilling Machine 200 To 300m

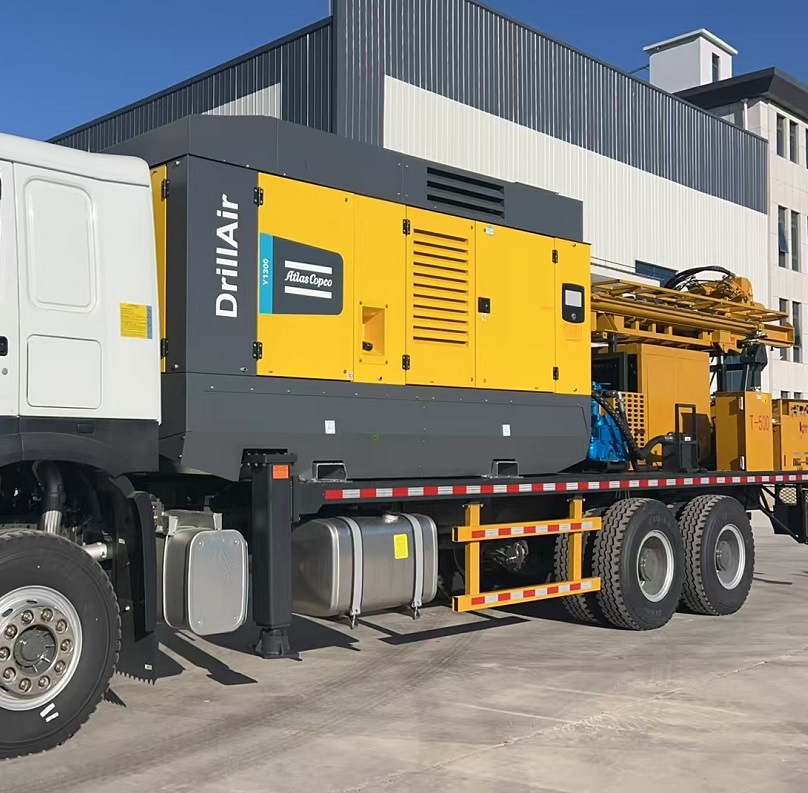

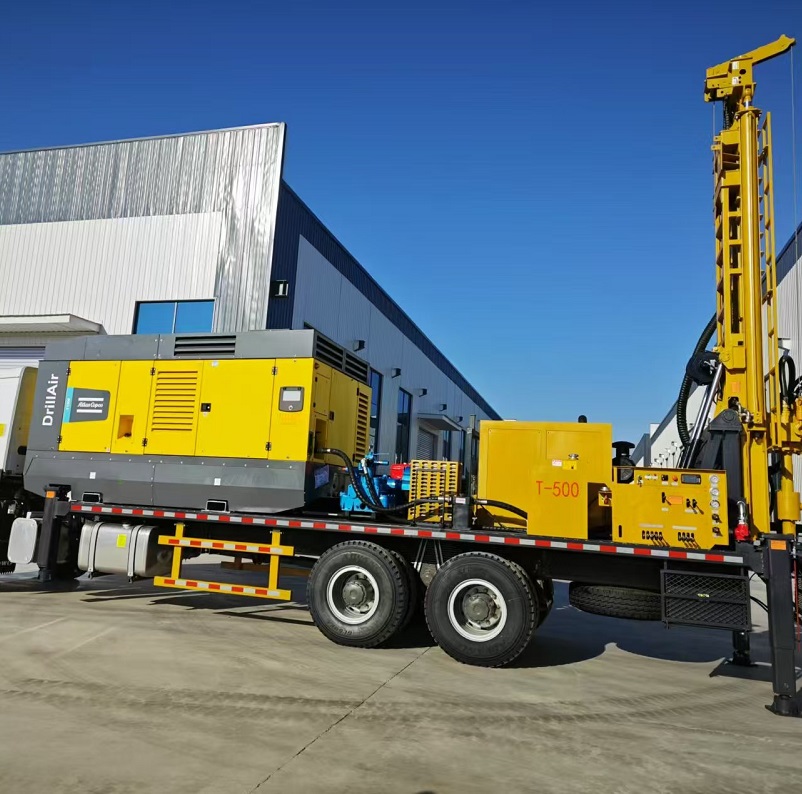

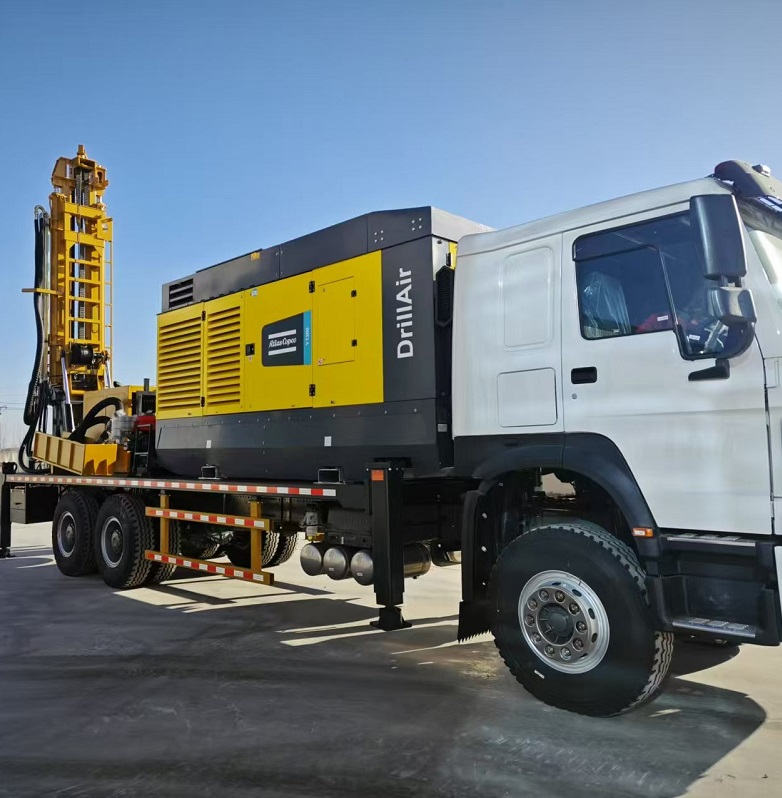

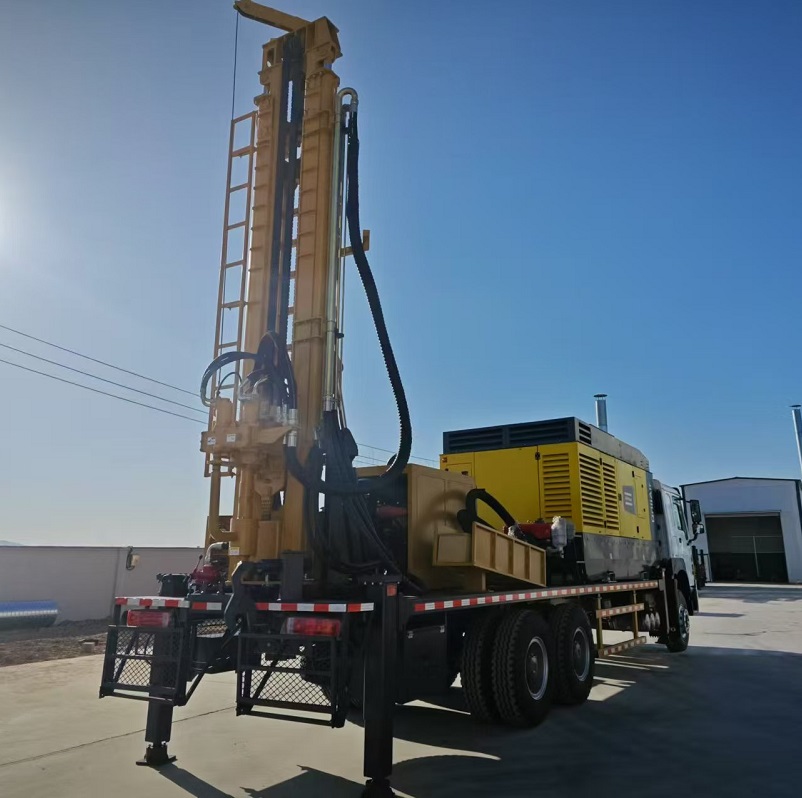

HOWO 200 to 300 meter drilling rig is a vehicle-mounted drilling rig based on HOWO truck chassis, with excellent maneuverability and adaptability. It adopts a hydraulic drive system, which is powerful and flexible to operate, and can achieve efficient drilling operations. The drilling depth of the drilling rig can reach 300 meters, which can meet a variety of drilling needs, such as hydrogeological water well drilling, engineering geological exploration, etc. It is equipped with advanced drilling equipment and tools, which can adapt to different formation conditions, whether it is soft soil or hard rock layer, to ensure the efficiency and quality of drilling. In addition, the drilling rig also has good stability and safety. By equipping it with devices such as hydraulic retractable stabilizers, it ensures the smooth operation of the drilling rig during the drilling process and guarantees the safety of operators and equipment.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 6*4 | ||
Wheelbase/轴距(mm) | 3775+1400 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | WD615.47 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 371HP/276KW | ||
Cylinder in line 直列缸数 | 6 | ||
Air filter element/空滤器 | Oil bath air filter 油浴式空滤器 | ||
Displacement (L)/排量 | 9.97L | ||
Transmission/变速箱 | Type 类型 | Manual 手动 | |
Model/型号 | SINOTRUK HW19710 10-speed manual transmission 中国重汽HW19710 10挡 手动变速箱 | ||
Front axle/前轴 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | HF9 | ||
Rear axle/后桥 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | 16T AC16双级减速桥 double reduction driving axle Speed ratio 速比：5.262 | ||
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | Type 类型 | Bottle neck, double frame前宽后窄，双层车架 | |
Dimension (mm) 车架尺寸 | 940-850 (W) 300 (H) | ||
Section thickness (mm) 厚度 | 8+8 | ||
Suspension/悬架 | Front 前悬架 | Semi-elliptic 多片簧 12pcs | |
Rear 后悬架 | Semi-elliptic 多片簧 14pcs | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
CAB INTERIOR 驾驶室内部配置 | Driver seat 驾驶室座椅 | mechanical 机械式 | |
Lighter 点烟器 | Yes | ||
Entertainment 娱乐设置 | mp3+radio | ||
Cab maintanence titled 驾驶室翻转 | manual 手动翻转 | ||
Air conditioner 空调 | manual手动空调 | ||
Rear view mirror 后视镜 | manual手动 | ||
Sleeping bed 卧铺 | single bed 单卧铺 | ||
CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 5800x2300x1600(LxWxH) | |
Material 材质 | 高强钢 T700 | ||
Lifting system 举升缸 | JIAHENG 179 | ||
Thickness(mm) 板材厚度 | Bottom 14mm, sides 12mm 底板14mm，边板12mm | ||
Other 其他 | 600L Sprinkler淋水器 | ||
OVERALL DIMENSIONS/全车尺寸 | 8650×2550×3300 mm | ||
