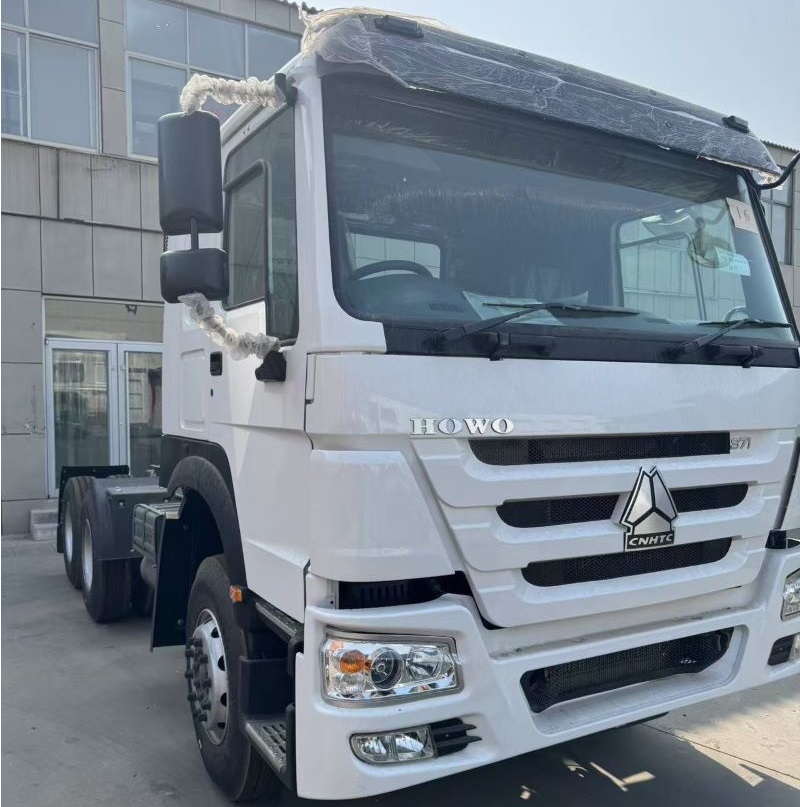

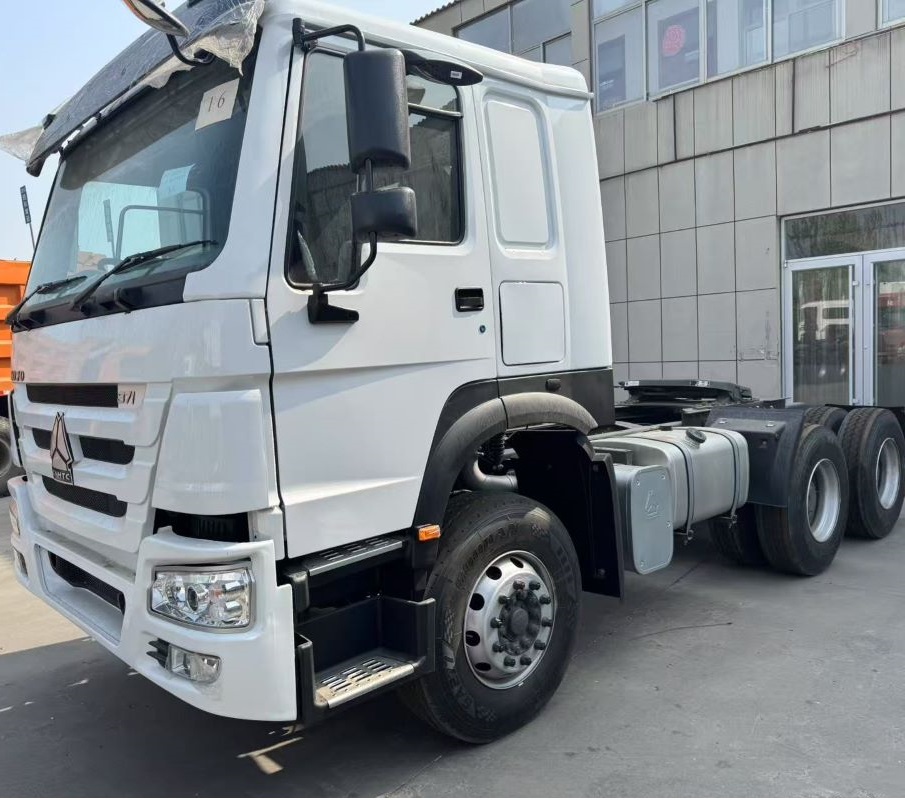

HOWO 6X4 Tractor Truck
1.Reliable transmission system: matched with China National Heavy Duty Truck Group's independently developed gearbox, such as China National Heavy Duty Truck Group's HW19710 10 10 speed manual gearbox, which adopts a main gearbox dual secondary shaft full helical gear design and a secondary gearbox planetary reduction structure, with smooth shifting and a wide range of speed ratios.
2.Lightweight design: By using aluminum alloy wheels, aluminum alloy fuel tanks and air reservoirs, lightweight frames, etc., the weight of the entire vehicle is effectively reduced. Under the limit of the total weight of the vehicle and cargo, more goods can be loaded in compliance and transportation revenue can be increased.
3.Humanized cab design: high roof, half row design, spacious space, equipped with airbag suspension seats, reducing driving fatigue
Excellent engine performance: Equipped with various high-performance engines, such as the China National Heavy Duty Truck Group WD615.47 engine, it has a large displacement of 9.97 liters and a maximum output of 371 horsepower, with strong power output that can easily cope with various complex road conditions and working conditions.Matched with the independently developed gearbox of China National Heavy Duty Truck Group, such as the HW19710 10 10 speed manual gearbox, it has smooth shifting and a wide range of speed ratios. Provide additional safety protection for vehicles in mountainous downhill and other scenarios, while allowing them to go downhill faster and safely, and can carry more cargo when loaded

Tires play a crucial role in the overall performance of dump trucks. Considering that road conditions vary greatly across different countries. Some countries may have smooth and well paved highways, while others may have rugged rural roads with potholes and gravel. Extreme weather conditions in some countries can also affect roads, such as heavy snow in cold regions or extreme heat in desert areas. Given these different situations, we have chosen the best quality tires. These high-quality tires are made with advanced materials and manufacturing techniques. They have excellent durability, strong grip, and good shock absorption capabilities, suitable for most roads around the world, whether it is flat city roads or challenging off-road environments.

Choosing HOWO 6 × 4 tractor not only means choosing a high-performance transportation vehicle, but also choosing an efficient, safe, and economical operating mode. No matter how complex and varied your transportation needs are, HOWO 6 × 4 tractor can provide you with strong support, helping you navigate smoothly on the transportation road and win every challenge.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 右舵 right rudder | ||
Driving type/驱动形式 | 6*4 | ||
Wheelbase/轴距(mm) | 2020+1830 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | WD615.47 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率(PS) | 371HP/276KW | ||
Cylinder in line 直列缸数 | 6 | ||
Displacement (L)/排量 | 9.97L | ||
Transmission/变速箱 | Type 类型 | Manual 手动 | |
Model/型号 | SINOTRUK HW19710 10-speed manual transmission 中国重汽HW19710 10挡 手动变速箱 | ||
Front axle/前轴 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | HF9 | ||
Rear axle/后桥 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | 13T AC13 双级减速桥 double reduction driving axle Speed ratio 速比:4.7 | ||
Clutch/离合器 | ¢430 diaphragm clutch¢430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Fuel tank/燃油箱 | 400L铝合金 Aluminum alloy | ||
Frame/车架 | 850x300(8+8) | ||
Suspension/悬架 | Front and rear multi-leaf spring twelve main flims+four horse riding 前后多片簧 十二主片+四骑马 | ||
Wheels and tires/轮胎 | 12R22.5 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
CAB INTERIOR 驾驶室内部配置 | Driver seat 驾驶室座椅 | mechanical 机械式 | |
Lighter 点烟器 | Yes | ||
Entertainment 娱乐设置 | mp3+radio | ||
Cab maintanence titled 驾驶室翻转 | manual 手动翻转 | ||
Air conditioner 空调 | manual手动空调 | ||
Rear view mirror 后视镜 | manual手动 | ||
Sleeping bed 卧铺 | single bed 单卧铺 | ||
OVERALL DIMENSIONS/全车尺寸 | 7500×2500×3300 mm | ||
