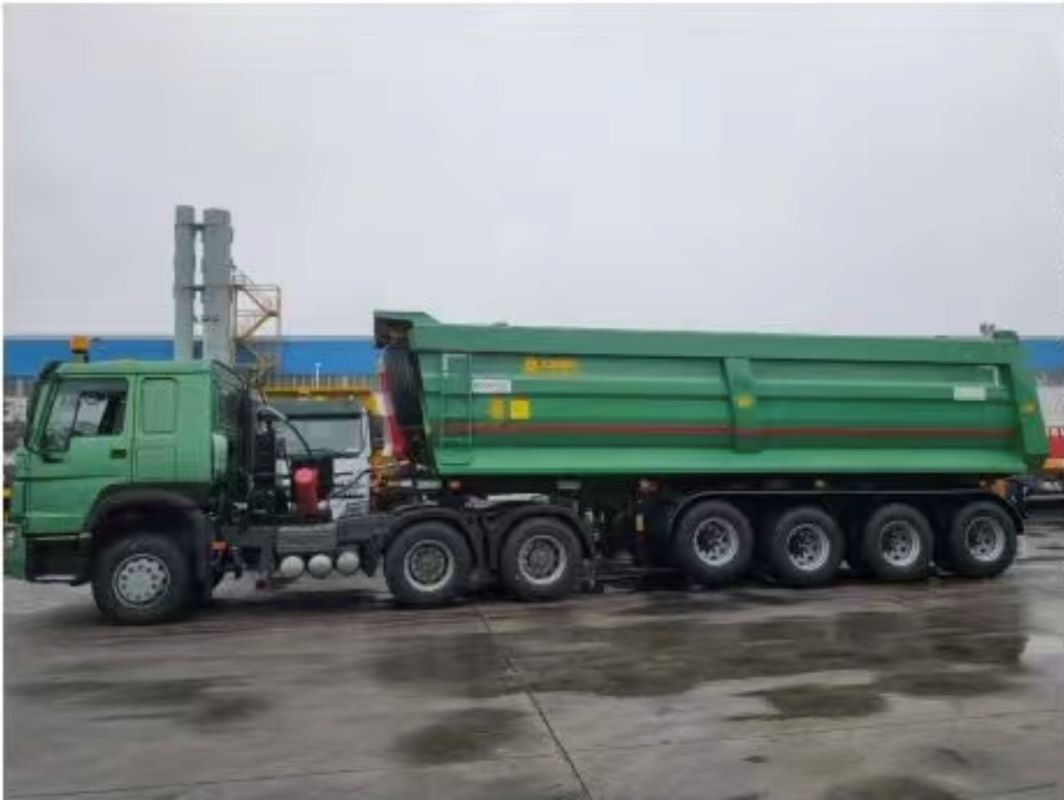

4-Axle U-Shaped Dump Truck

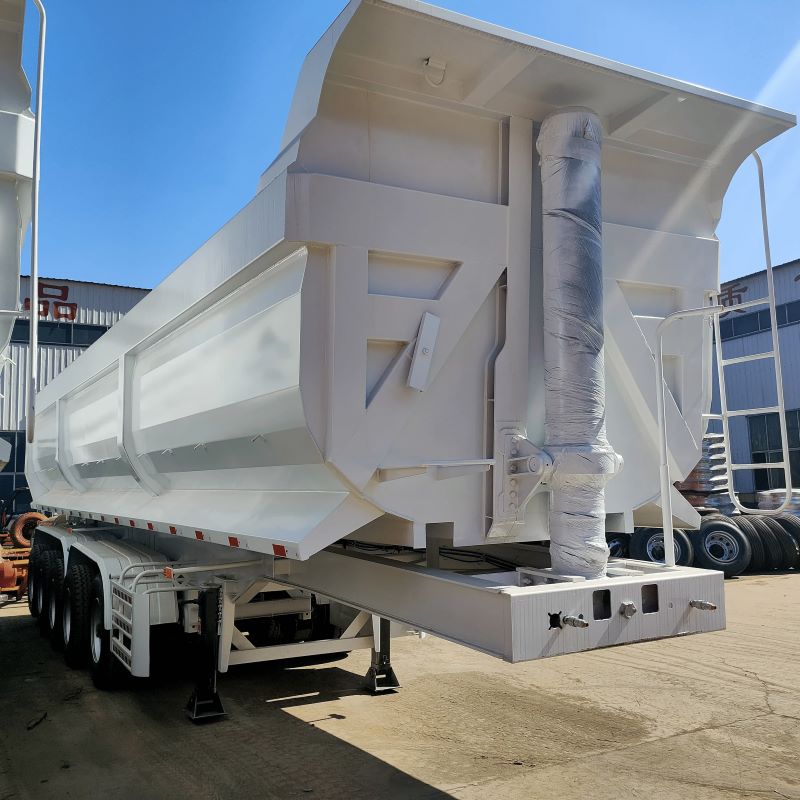

1.The bottom of the U-shaped cargo box is designed to lower the center of gravity of the vehicle, making driving more stable and reducing the risk of rollover. The internal streamlined structure has no dead corners, fast unloading speed and low residue rate.
2.Made of high-quality high-strength steel, the bottom plate is 4mm and the side plate is 3mm, which has high durability and corrosion resistance, prolongs service life and reduces maintenance costs. The integrated box plate design increases the cargo capacity, facilitates cargo loading and unloading, and prevents cargo accumulation.
4-Axle U-Shaped Dump Truck

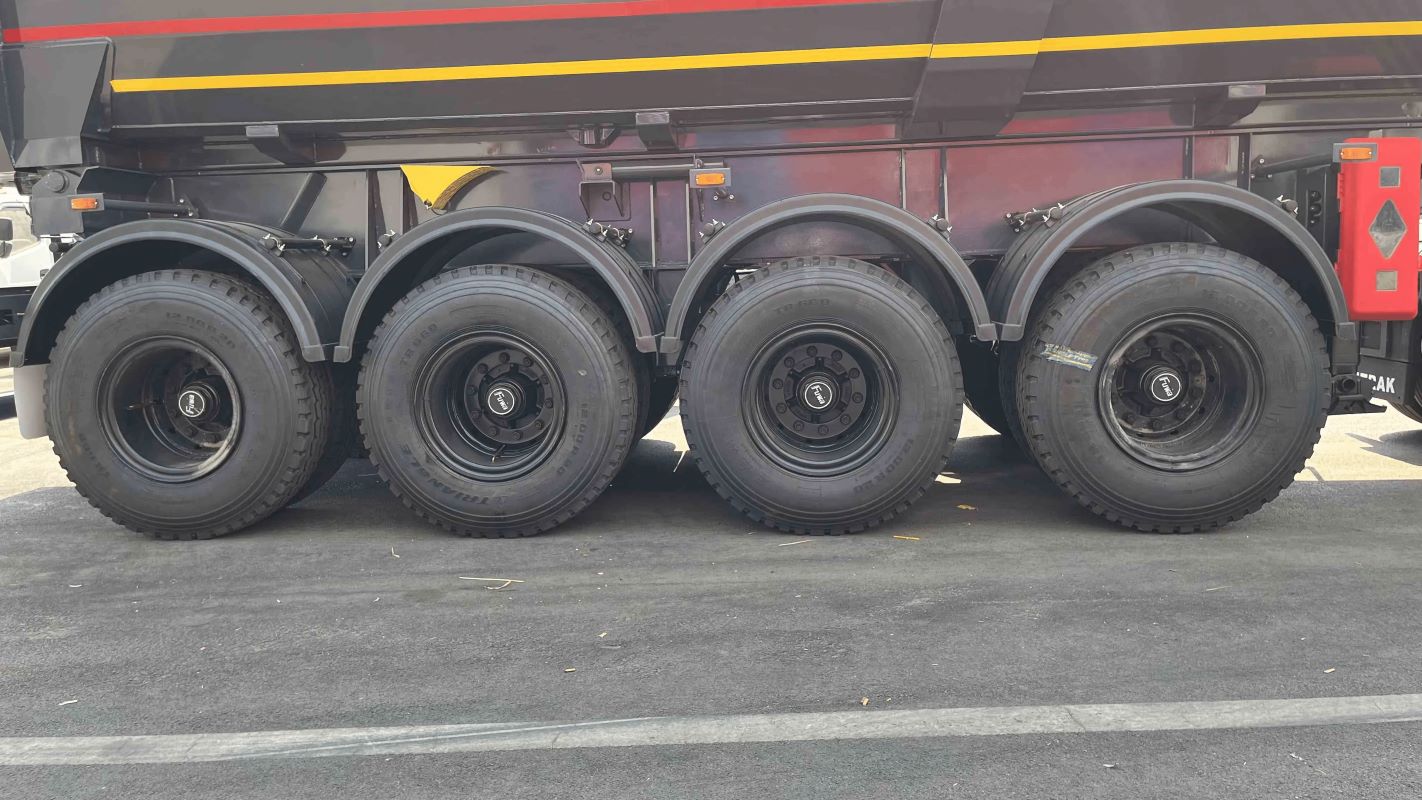

Usually equipped with 16 tires of specifications such as 12R22.5, with good wear resistance and load-bearing capacity, tires play a vital role in the overall performance of the rear dump truck. Considering that road conditions vary greatly from country to country. Some countries may have smooth and flat well-paved highways, while others may have rugged country roads with potholes and gravel. There are also countries with extreme weather conditions that affect the roads, such as heavy snow in cold areas or scorching heat in desert areas. In view of these different situations, we have selected the best quality tires. These high-quality tires are made with advanced materials and manufacturing technology. With excellent durability, strong grip and good shock absorption, they are suitable for most roads around the world, whether it is a smooth city road or a challenging off-road environment.

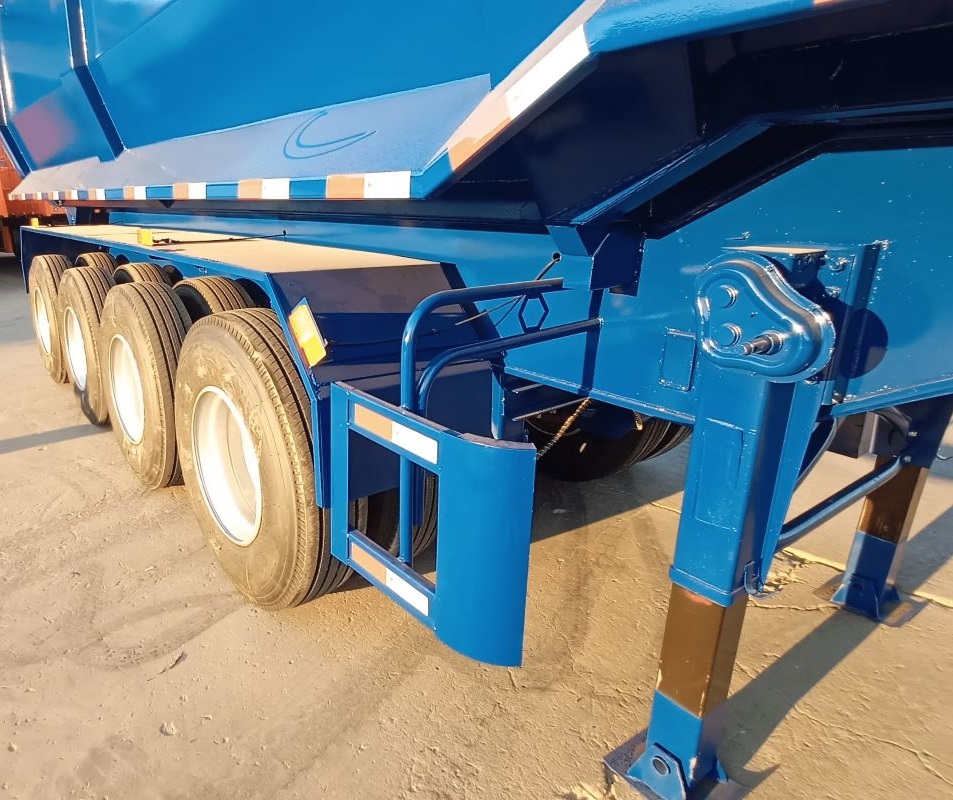

The 4-axle design increases the load-bearing capacity and improves the vehicle stability, making it suitable for transporting heavy goods. The suspension system is an American mechanical suspension, and the optimized chassis layout not only expands the reserved space for later upper equipment, but also ensures stability and safety during transportation.
Product Paramenters
一、半挂车型号和主要配置： | |||
外形尺寸（长度和宽度：最外端不可拆解的金属物之间；栏板车高度为厢板高度，仓栅车高度为底板至仓栅顶部高度，厢车为厢高高度）长： 10648mm； 宽： 3010mm； 高： 3900mm | |||
产品名称：50方U型后翻自卸 4轴 产品型号：出口型 上牌吨位： 数量： 台 | |||
纵梁高度（mm) | 500 mm | 轴距 | 前悬,轴距按设计 |
纵梁上下翼板厚度（mm) | 16 mm / 18 mm mm宽 | ||
纵梁腹板厚度（mm) | 双6 mm ( Q700) | 箱内横拉/斜拉 | 横拉圆管 两道 |
边梁规格 | 高强折弯件( Q700) | 支腿规格 | 厂配 28吨 联动 |
底板 | 4.0mm 高强 (NM450) | 备胎架规格/数量 | 1个吊式 在前挡一侧 |
边板 | 3.0mm 高强 (NM450) | 后防护网 | 西非款 |
立柱样式 | 两道立柱 | 变速箱型号 | 牵引车自带 |
工具箱 | 1个 按设计 加厚 | 取力器与齿轮泵 | 牵引车进厂 |
后门样式 | 一体吊开 | 颜色 | 车架：灰色 烤漆 车厢：灰色 烤漆 |
主架结构 | 直梁 | 轮胎规格/数量 | 名称 1200 真空胎 |
副架结构 | 四道( Q700) | 12R22.5 | |
油缸品牌 | ☑国产 □海沃HYVA | 16条 | |
油缸规格/数量 | 5TG-214 1支 | 钢圈规格/数量 | 9.0*22.5 16只 |
移位顶/副顶 | 无 | 车轴数及型号 | 数量： 型号：山东富华 16吨吨 加宽刹车片 4桥设计 带前桥气囊提升 |
牵引销规格 | 90# 装配式 | 板簧片数/规格 | 90*13*120 |
立板加固 | 内外加固 | 进出油口位置 | 前端 |
悬架系统 | 美式机械悬架 | 分泵规格/数量 | 4双 / 单 |
箱板样式/数量 | 一体式 | 制动阀规格 | 厂配 |
自卸形式 | □后翻 | “ABS”规格 | / |
l 所运输货物及工况的特殊要求描写（货物名称，形状特征，运输路况，作业环境及其他）： | |||
