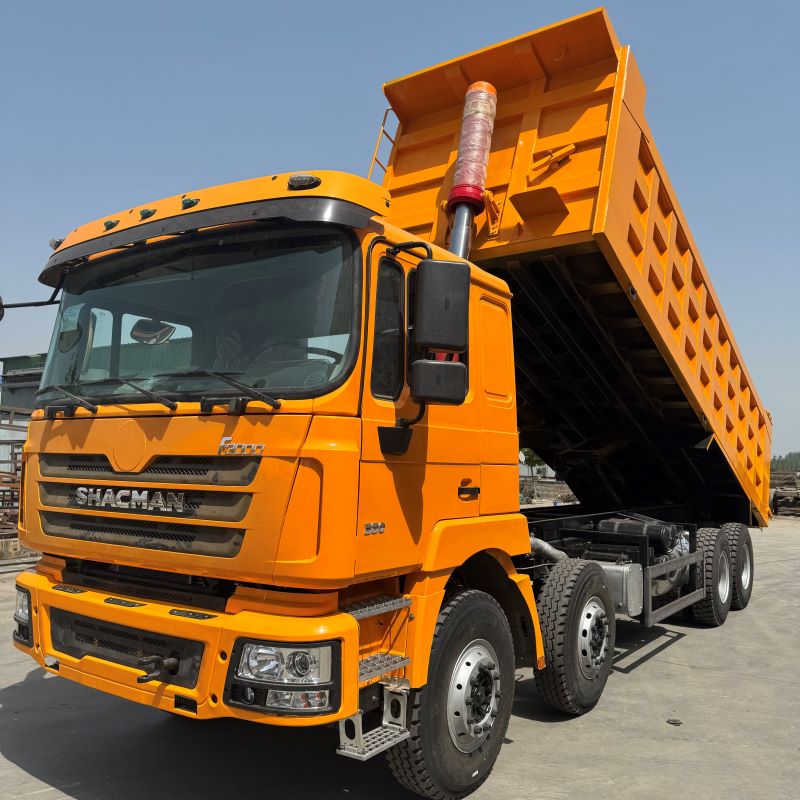

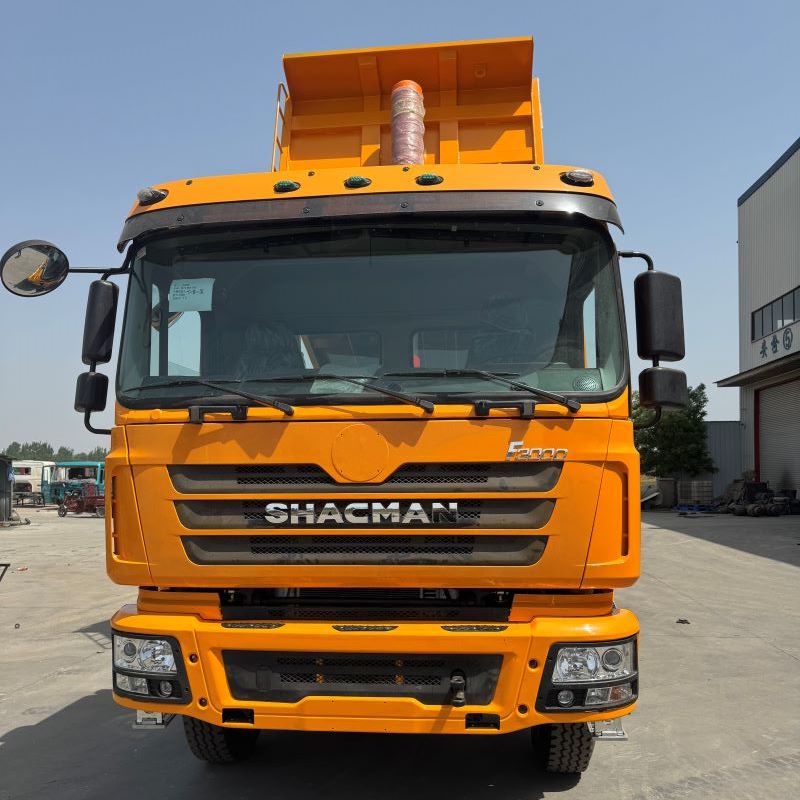

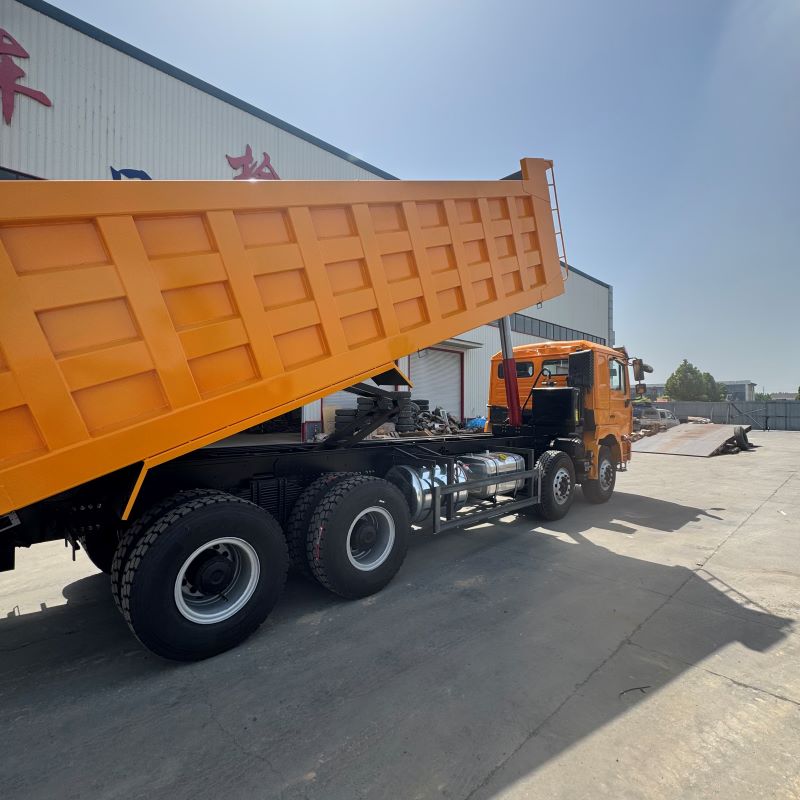

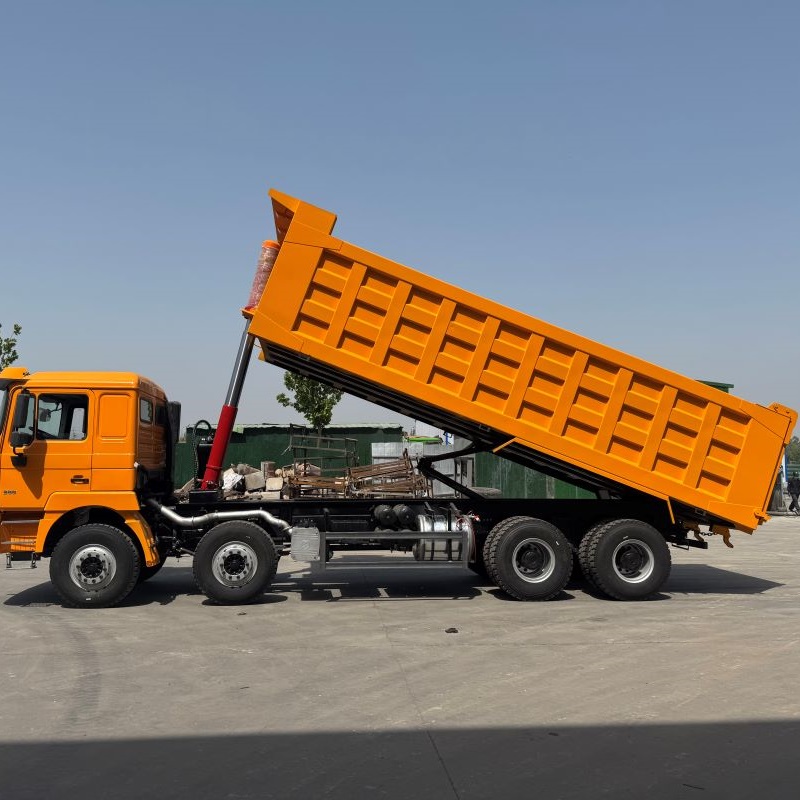

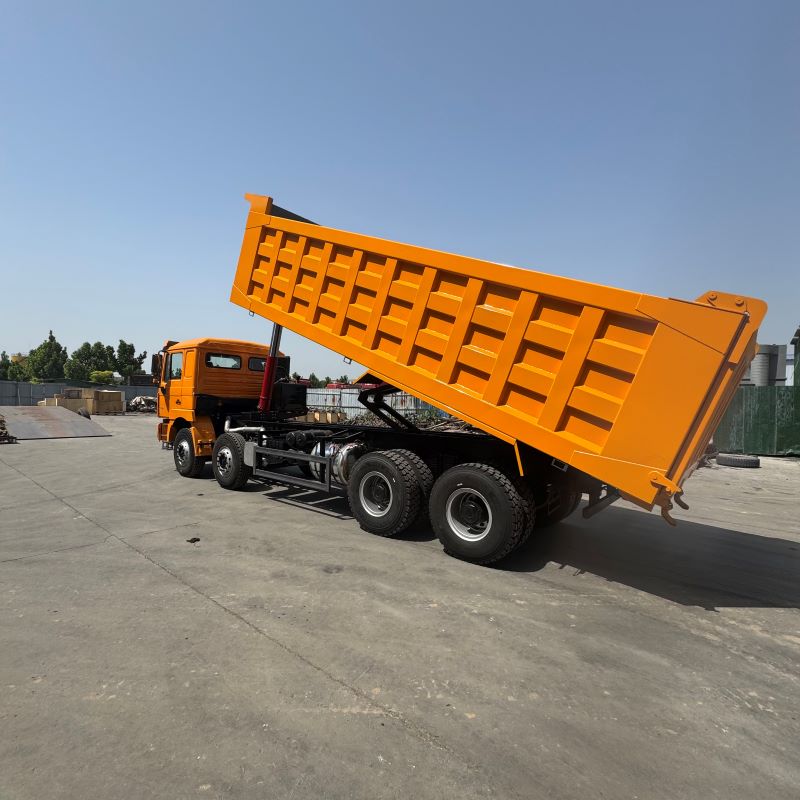

Shacman F3000 8×4 Yellow Dump Truck
1.Shaanxi Automobile F3000 8×4 dump truck can meet the diverse needs of users and improve transportation efficiency and economic benefits with its advantages such as lightweight, efficient transportation, safety and reliability, comfort and convenience, and strong adaptability.
2.The frame is made of high-strength steel plates and has undergone internationally leading finite element topology optimization and CAE analysis. The frame structure is designed with double-layer pressing and one-time molding. The inner lining beam of the beam is optimized from 7mm to 5mm, with a more reasonable structure, a lower center of gravity, lighter weight and stronger carrying capacity.
Shacman F3000 8×4 Yellow Dump Truck
The multi-leaf spring suspension system, combined with the MAN9T front axle and 16T STR double-stage reduction axle, has a load-bearing capacity superior to domestic lightweight dump trucks of the same level. The application of lightweight drive shafts, aluminum alloy gas cylinders and fuel tanks further reduces the weight.
Equipped with Weichai Landking WP10 series high-horsepower engine, it has large low-speed torque, strong heavy-load climbing ability, and a power range of 240-375 horsepower. It is matched with Fast 12JSD180 gearbox, 12 forward gears, and 2 reverse gears, providing a smooth shifting experience. The unique main and auxiliary box double intermediate shaft structure and Hande Steyr technology drive axle have higher transmission efficiency.

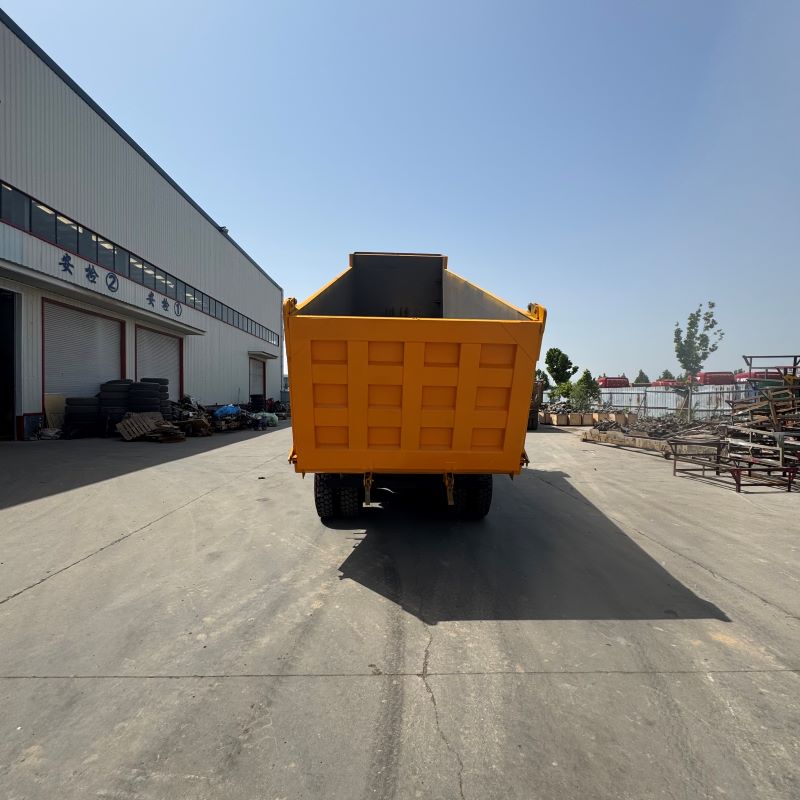

The large box has a small weight and a low center of gravity, which increases the vehicle's payload, improves driving stability, reduces fuel consumption per unit payload, reduces tire wear, has low material sliding resistance and fast unloading, effectively reducing material transportation costs and improving vehicle transportation efficiency.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 8*4 | ||
Wheelbase/轴距(mm) | 1950+3225+1350 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | WEICHAI/潍柴 | |
Model/型号 | WP10 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 380HP/283KW | ||
Displacement (L)/排量 | 12L | ||
Transmission/变速箱 | Type 类型 | FAST/法士特 | |
Model/型号 | 12JSD180 | ||
Front axle/前轴 | Model/型号 | MAN 9T | |
Rear axle/后桥 | Model/型号 | 16T STR 双级减速桥 double reduction driving axle Speed ratio 速比：4.769 | |
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | Type 类型 | Bottle neck, double frame前宽后窄，双层车架 | |
Dimension (mm) 车架尺寸 | 940-850 (W) 300 (H) | ||
Section thickness (mm) 厚度 | 8+8+8 | ||
Suspension/悬架 | Front 前悬架 | Semi-elliptic 多片簧 12pcs | |
Rear 后悬架 | Semi-elliptic 多片簧 14pcs | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
驾驶室 | 液压主座椅、四点机械悬浮驾驶室、电控自动恒温空调、手动摇窗机、手动翻转、油浴式空滤器、金属保险杠 二级上车踏板，165Ah 维护蓄电池 Hydraulic main seat, four-point mechanical suspension cab, electronically controlled temperature air conditioner, manual operation window shaker, manual flip, oil bath air filter, metal bumper Two-stage car pedal, 165Ah maintenance battery, SHACMAN identification | ||
CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 7800x2300x1500+250mm (LxWxH) | |
Material 材质 | 高强钢 T700 | ||
Lifting system 举升缸 | JIAHENG 191 | ||
Thickness(mm) 板材厚度 | Bottom 10mm, sides 8mm 底板10mm，边板8mm | ||
OVERALL DIMENSIONS/全车尺寸 | 10080×2550×3300 mm | ||
