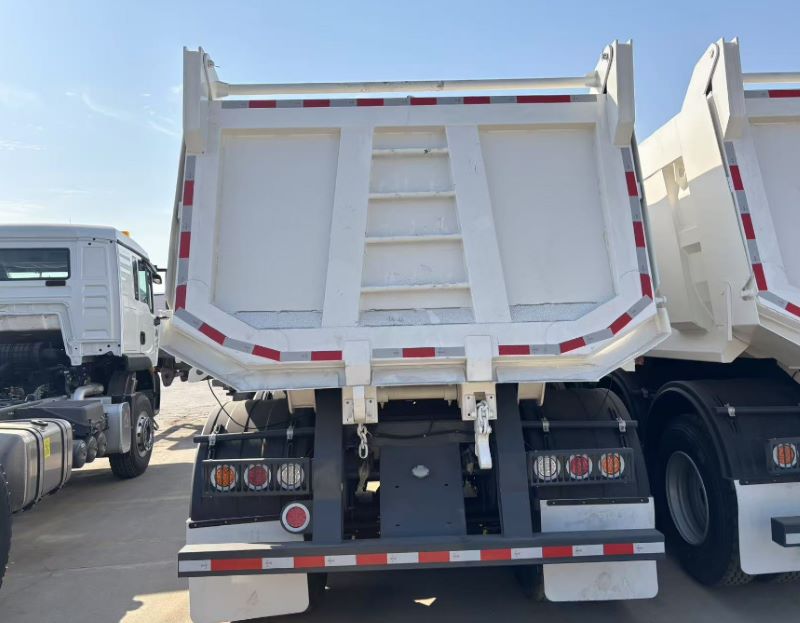

U-Type Three-Axle Rear Dump Semi-Trailer
1.The U-shaped three-axle rear-dump dump semi-trailer has become an ideal choice in the field of cargo transportation due to its strong loading capacity, efficient unloading performance, sturdy and durable structure and good stability.
2.Lightweight design, using high-strength steel, reduces deadweight, increases cargo capacity, and reduces transportation costs. The U-shaped design reduces cargo residue, facilitates cleaning, and improves transportation efficiency.
3.It can be customized according to different needs, such as different volumes, special materials, etc., to adapt to various transportation scenarios.
U-Type Three-Axle Rear Dump Semi-Trailer

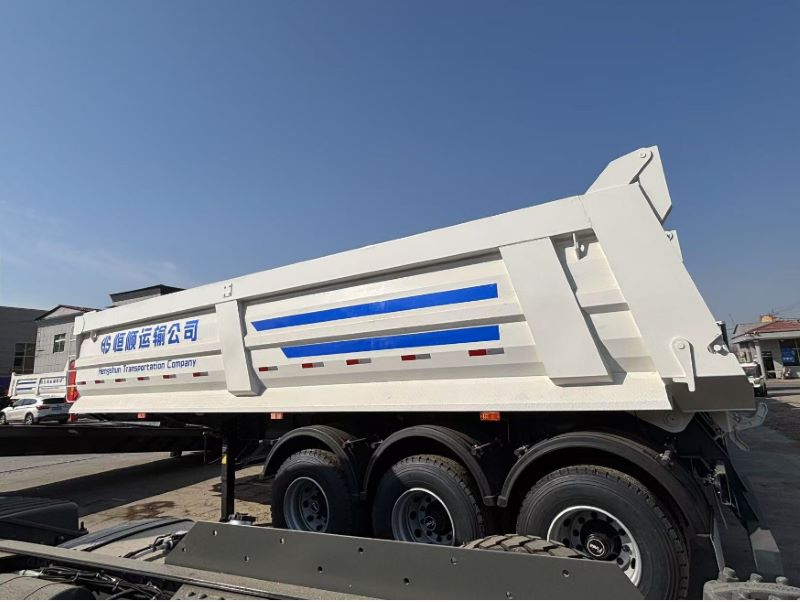

The frame is made of high-strength steel, with strong load-bearing capacity and good torsion resistance. The cargo box is designed with a U-shaped structure, high-strength plate, and reinforced side and bottom plates for corrosion resistance. The U-shaped design has a variety of volumes, such as 33 cubic meters and 45 cubic meters, which is convenient for loading and unloading goods and improves transportation efficiency.

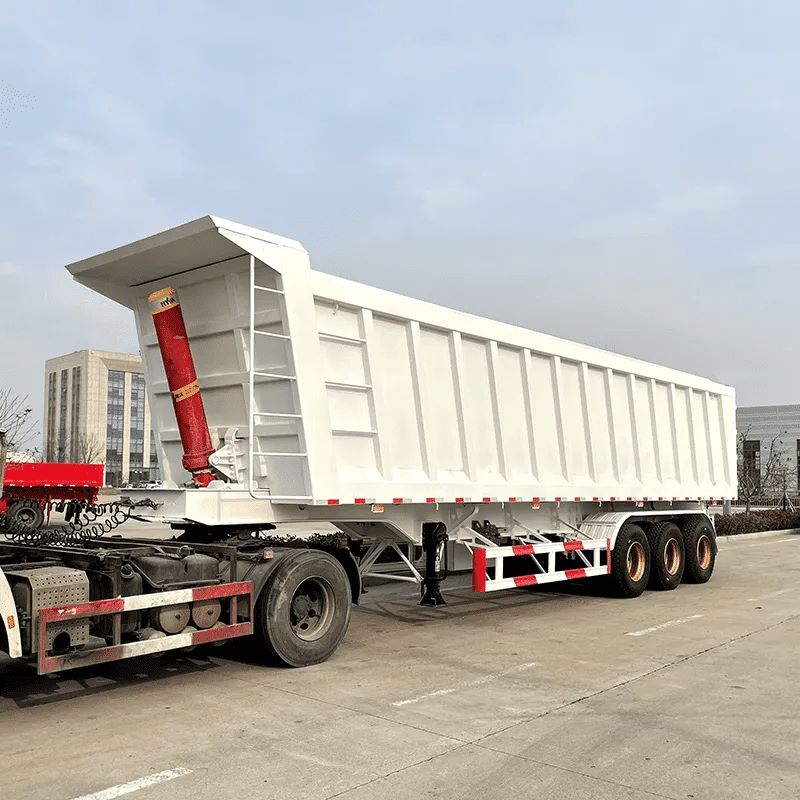

The hydraulic lifting system is used to achieve fast unloading and reduce unloading time. Depending on the model, the loading capacity can reach 40 tons, 60 tons, and 80 tons to meet various transportation needs.
Low center of gravity design: The U-shaped carriage has a lower center of gravity, making the vehicle more stable during driving and unloading, reducing the risk of rollover. Strengthened suspension system: The equipped suspension system improves the stability of the vehicle and adapts to complex road conditions.
Product Paramenters
半挂车型号和主要配置： | |||
外形尺寸（长度和宽度：最外端不可拆解的金属物之间；栏板车高度为厢板高度，仓栅车高度为底板至仓栅顶部高度，厢车为厢高高度）长： 10.5米； 宽： 3050mm； 高： 按设计 米 | |||
产品名称：三轴后翻自卸半挂车 产品型号：出口型 上牌吨位： 数量： 台 | |||
纵梁高度（mm) | 550 mm | 轴距 | 前悬,轴距按设计 |
纵梁上下翼板厚度（mm) | 16 mm / 20 mm 140mm宽 | 上边梁规格 | 6mm 厚 高强折弯件( Q700) |
纵梁腹板厚度（mm) | 12 mm | 箱内横拉/斜拉 | 横拉圆管 两道 |
边梁规格 | 高强折弯件( Q700) | 支腿规格 | JOST E300 28吨单动 下部加固 |
底板 | 6.0mm 高强 (NM450) | 备胎架规格/数量 | 1个吊式 在前挡一侧 |
边板 | 8.0mm 高强 (NM450) | 后防护网 | 西非款 |
立柱样式 | 两道立柱 | 变速箱型号 | 牵引车自带 |
工具箱 | 1个 中集样式 加厚 | 取力器与齿轮泵 | 牵引车进厂 |
后门样式 | 一体吊开 | 颜色 | 车架：待定 烤漆 车厢：待定 烤漆 |
主架结构 | 直梁 | 轮胎规格/数量 | 名称：三角（3道顺） |
副架结构 | 120*120*6.0mm方管 四道( Q700) | 1200R20-18PR 玲珑 钢丝胎 | |
油缸品牌 | □国产 ☑海沃HYVA | 12条 | |
油缸规格/数量 | 海沃214# 1 整套 | 钢圈规格/数量 | 8.5-20 12只 |
移位顶/副顶 | 无 | 车轴数及型号 | 数量：3 型号：富华20吨 加宽刹车片220mm |
牵引销规格 | JOST 90# 装配式 KZ1016 | 板簧片数/规格 | 120*16*12 |
立板加固 | 内外加固 | 进出油口位置 | 前端 |
悬架系统 | 美式机械悬架（中集款） | 分泵规格/数量 | 6双 / 单 |
箱板样式/数量 | 一体式 | 制动阀规格 | WABCO 双回路断气刹 |
自卸形式 | ☑后翻 | “ABS”规格 | / |
l 所运输货物及工况的特殊要求描写（货物名称，形状特征，运输路况，作业环境及其他）： | |||
