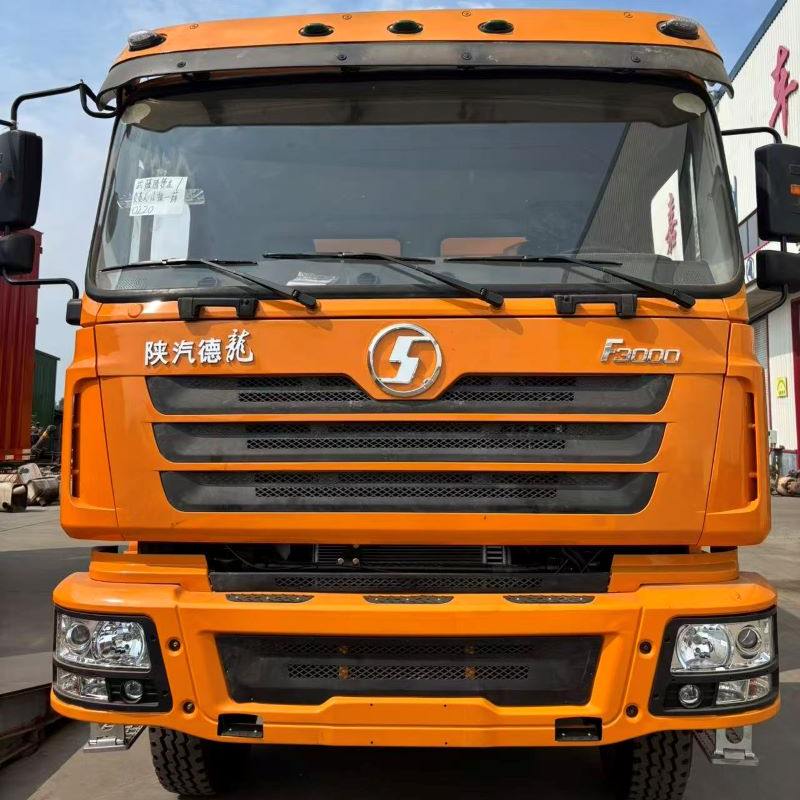

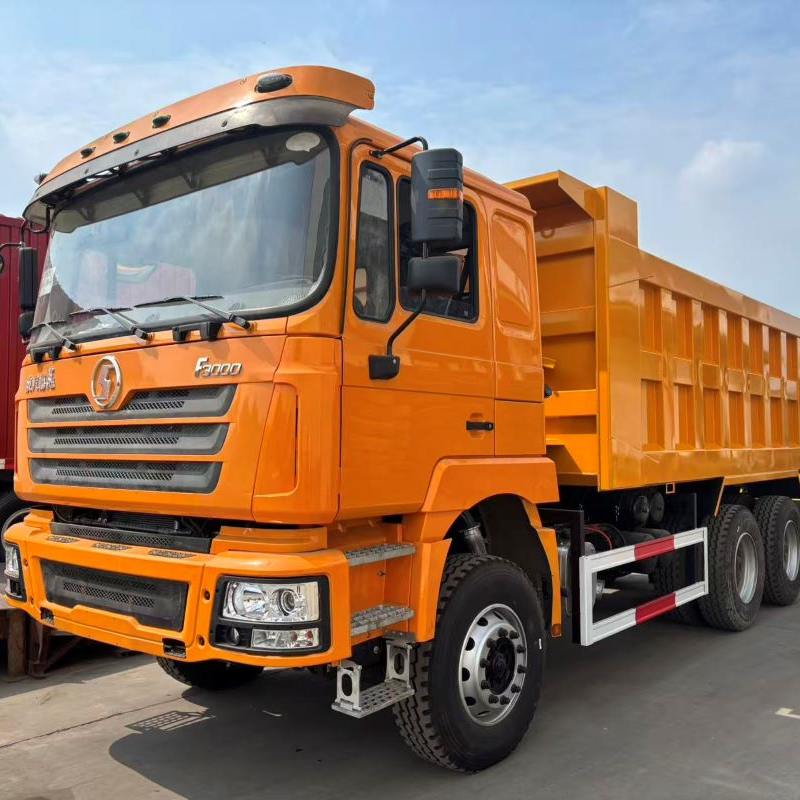

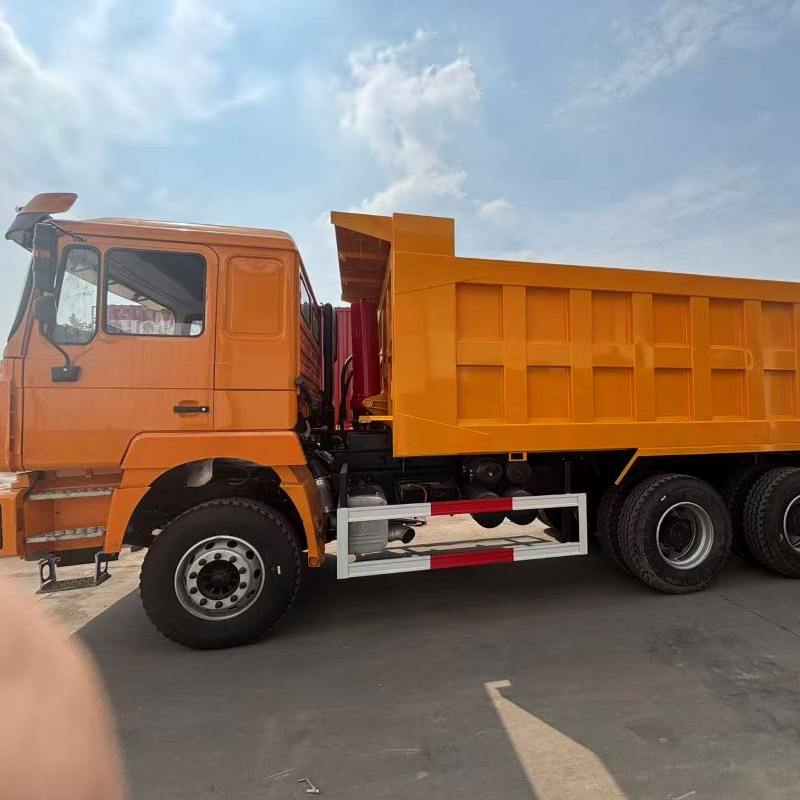

Shacman F3000 Dump Tipper Truck
1.Hard-core power: equipped with a Weichai high-horsepower engine with strong torque, easy climbing of heavy loads and high transportation efficiency.
2.Load-bearing and durable: reinforced frame + dedicated axle, with outstanding load-bearing capacity and strong durability in handling heavy work such as sand, gravel, and slag.
3.Adapt to complex road conditions: Optimized chassis tuning and equipped with anti-skid tires ensure stable driving on muddy and bumpy construction sites with a high pass rate.
Shacman F3000 Dump Tipper Truck
The Shaanxi Automobile F3000 6x4 dump truck boasts exceptional power. For example, the commonly used Weichai WP10 engine, equipped with a water-cooled, four-stroke engine featuring exhaust valve braking, direct injection, and turbocharged intercooler technology, delivers a maximum horsepower of 380, a maximum power of 283 kW, and a maximum torque of 2100 Nm. This maximum torque is available between 1600 and 2200 rpm. This powerful engine allows it to handle a variety of complex operating conditions with ease. For example, in mining operations, where a fully loaded ore truck needs to climb a slope, the engine's powerful torque output easily propels the vehicle uphill, ensuring smooth completion of the transport mission. On construction sites, frequent starts and stops, as well as heavy-loaded starting operations, are no problem for the truck, ensuring rapid response and improved operational efficiency with its ample power on hand.
The transmission system is a critical link in vehicle power transmission. The Shaanxi Automobile F3000 6x4 dump truck is equipped with a Fast transmission, such as the 12JSD180T model, which features 12 forward gears and two reverse gears, offering smooth and easy shifting. During driving, the driver can easily select the appropriate gear based on road conditions and load, ensuring efficient power output. Whether driving at high speed on flat roads or climbing at low speed on rugged mountain roads, precise shifting keeps the engine operating at optimal levels, ensuring both vehicle performance and fuel economy.
Product parameters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 6*4 | ||
Wheelbase/轴距(mm) | 3800+1350mm | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | WEICHAI/潍柴 | |
Model/型号 | WP10 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 380HP/283KW | ||
Displacement (L)/排量 | 12L | ||
Transmission/变速箱 | Brand/品牌 | FAST/法士特 | |
Model/型号 | 12JSD180 | ||
Front axle/前轴 | Model/型号 | MAN 9T | |
Rear axle/后桥 | Model/型号 | 16T STR 双级减速桥 double reduction driving axle Speed ratio 速比：4.769 | |
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | 850x300(8+8) | ||
Suspension/悬架 | Front and rear multi-leaf spring twelve main flims + four horse riding 前后多片簧 十二主片+四骑马 | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
驾驶室 | 液压主座椅、四点机械悬浮驾驶室、电控自动恒温空调、手动摇窗机、手动翻转、油浴式空滤器、金属保险杠 二级上车踏板，165Ah 维护蓄电池 Hydraulic main seat, four-point mechanical suspension cab, electronically controlled temperature air conditioner, manual operation window shaker, manual flip, oil bath air filter, metal bumper Two-stage car pedal, 165Ah maintenance battery, SHACMAN identification | ||

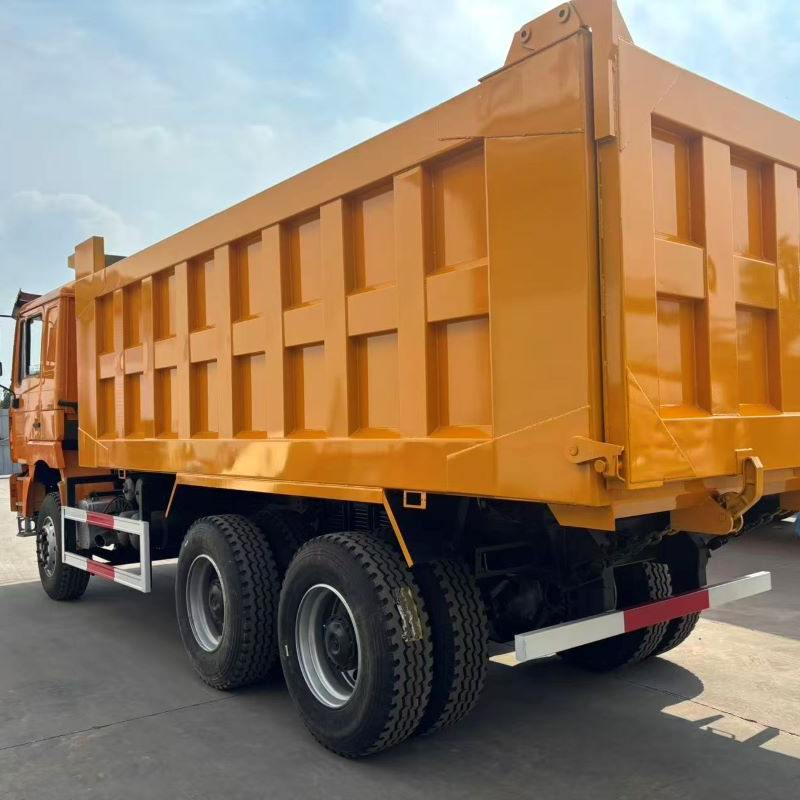

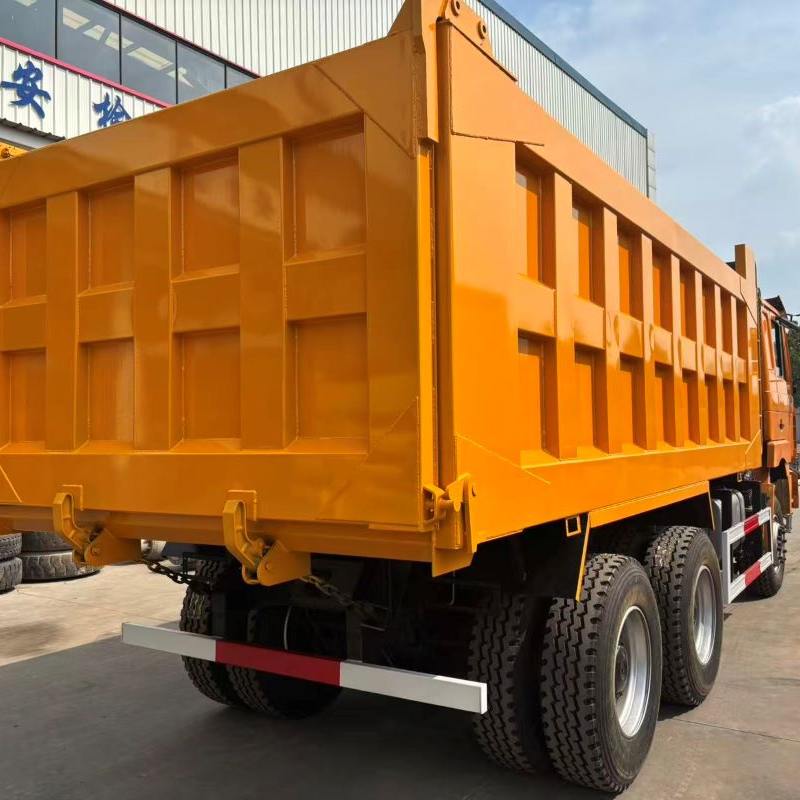

CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 5800x2300x1600(LxWxH) | |
Material 材质 | 高强钢 T700 | ||
Lifting system 举升缸 | JIAHENG 179 | ||
Thickness(mm) 板材厚度 | Bottom 14mm, sides 12mm 底板14mm，边板12mm | ||
Other 其他 | 600L Sprinkler淋水器 | ||
OVERALL DIMENSIONS/全车尺寸 | 8650×2550×3300 mm | ||
