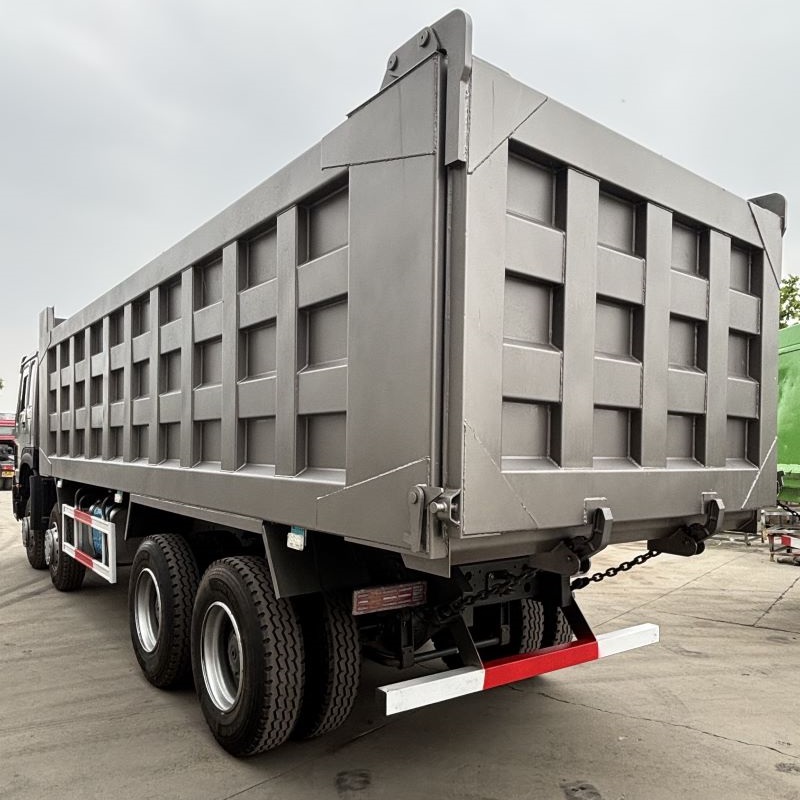

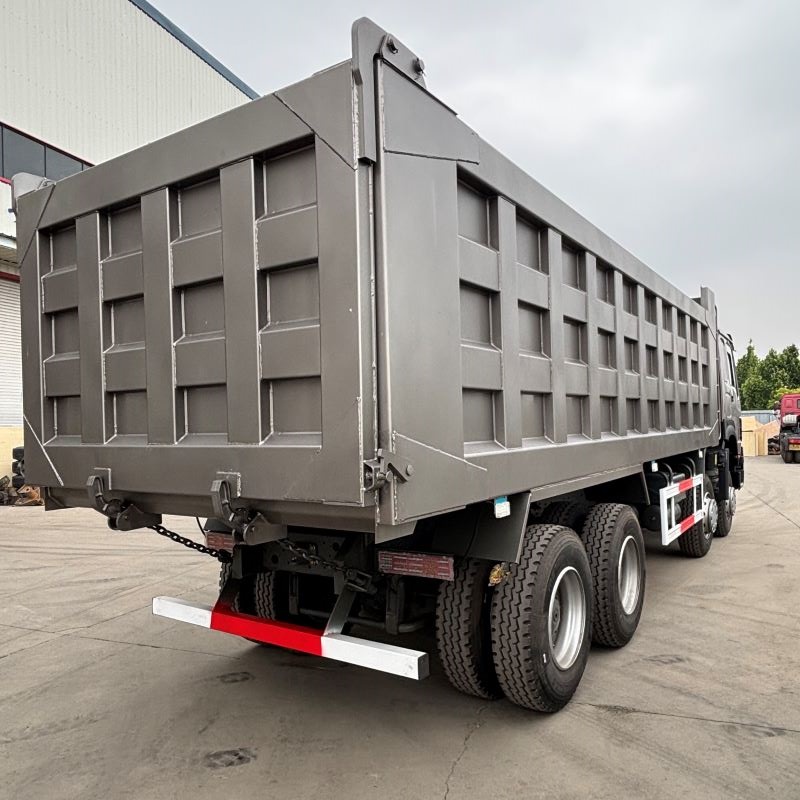

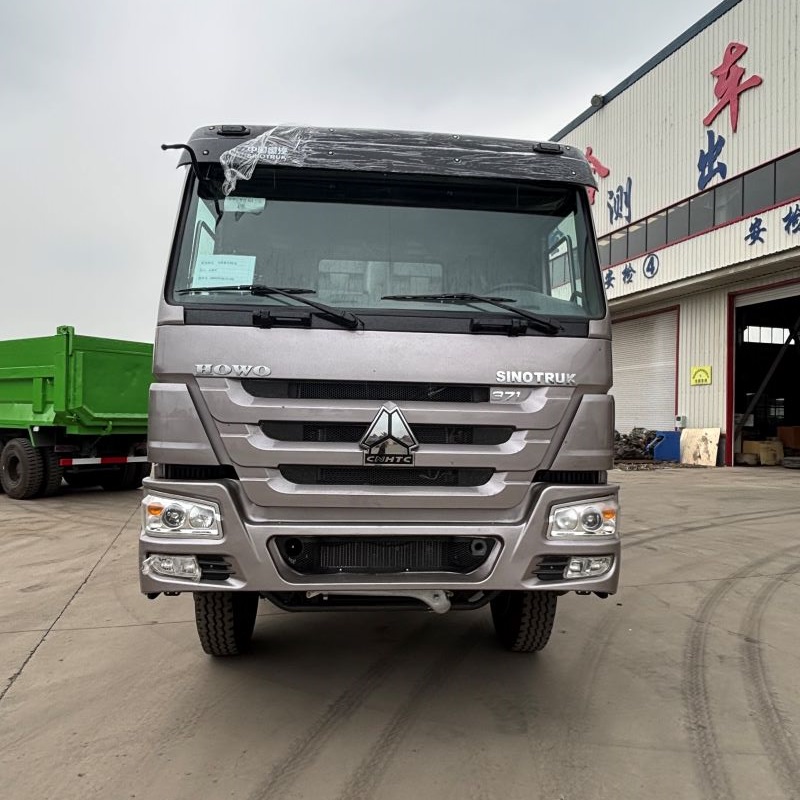

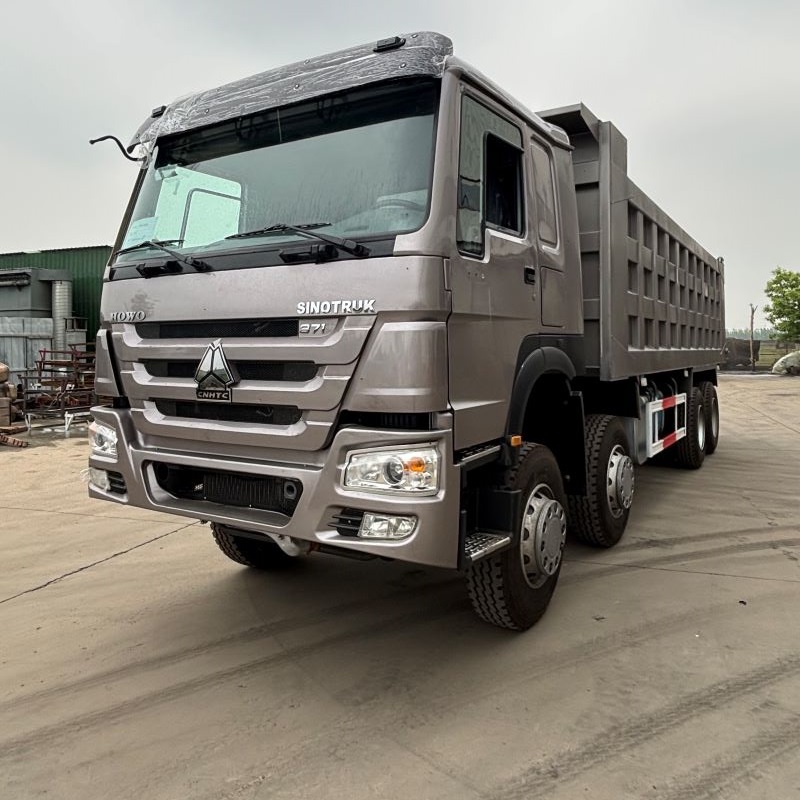

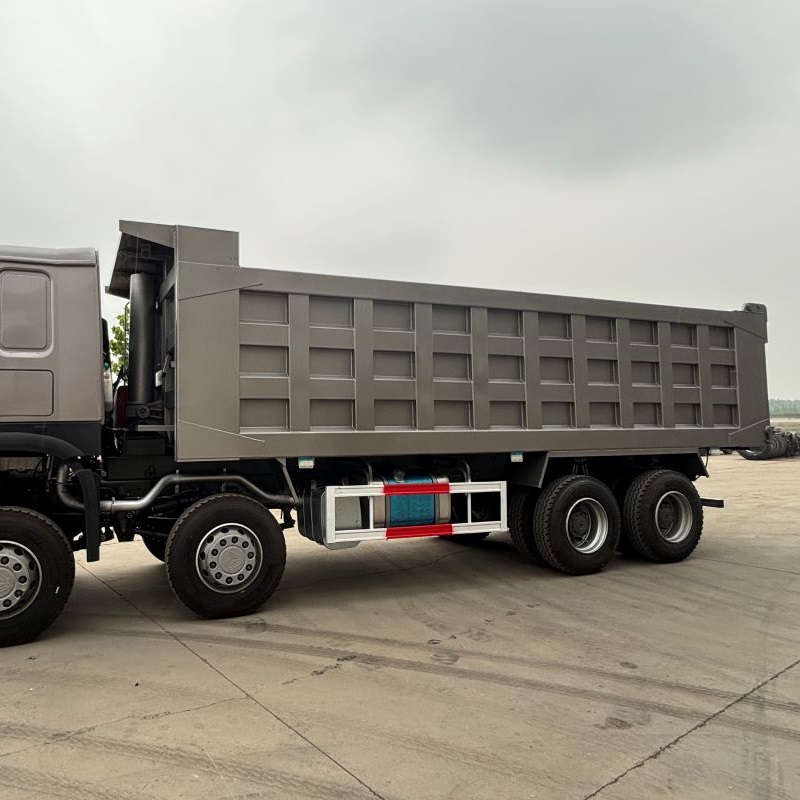

Grey HOWO 8×4 Square Box
1.The cargo box has a large capacity and optional length, such as 6.8 meters, 8 meters, etc. The width and height of the cargo box are also large, which can load more goods. It has strong adaptability to road conditions and 8×4 drive form, with good passability and climbing ability, and can adapt to various complex road conditions, such as construction sites, mines, etc.
2.The engine has strong performance and is equipped with a high-power engine, such as the China National Heavy Duty Truck WD615.47 engine, which has a power of up to 371 horsepower, providing sufficient power output and easily coping with heavy-load transportation.
Grey HOWO 8×4 Square Box
Howo dump truck is a left-side drive system, equipped with 371HP, WD615.47 engine. HW76 cabin, equipped with a sleeper. Dump truck can load about 20-30 tons of cargo, sturdy and durable to use, equipped with ABS braking system, widened brake and engine cylinder brake, ABS maintains directionality and operability under a certain braking coefficient, provides braking to keep the vehicle in a state of abnormal braking, and the vehicle brakes are stable. The typical overall performance and braking effect are greatly improved.
The transportation scenarios are wide, and it is suitable for urban construction, mining, logistics and transportation, such as transporting sand, gravel, earth, coal and other goods.
Product Paramenters
MODEL/车型 | ZZ3257M1755A | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 8*4 | ||
Wheelbase/轴距(mm) | 1950+3225+1350 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | WD615.47 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 371HP/276KW | ||
Cylinder in line 直列缸数 | 6 | ||
Displacement (L)/排量 | 9.97L | ||
Transmission/变速箱 | Type 类型 | Manual 手动 | |
Model/型号 | SINOTRUK HW19710 10-speed manual transmission 中国重汽HW19710 10挡 手动变速箱 | ||
Front axle/前轴 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | HF9 | ||
Rear axle/后桥 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | 16T AC16双级减速桥 double reduction driving axle Speed ratio 速比：5.262 | ||
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | Type 类型 | Bottle neck, double frame前宽后窄，双层车架 | |
Dimension (mm) 车架尺寸 | 940-850 (W) 300 (H) | ||
Section thickness (mm) 厚度 | 8+8+8 | ||
Suspension/悬架 | Front 前悬架 | Semi-elliptic 多片簧 12pcs | |
Rear 后悬架 | Semi-elliptic 多片簧 14pcs | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
CAB INTERIOR 驾驶室内部配置 | Driver seat 驾驶室座椅 | mechanical 机械式 | |
Lighter 点烟器 | Yes | ||
Entertainment 娱乐设置 | mp3+radio | ||
Cab maintanence titled 驾驶室翻转 | manual 手动翻转 | ||
Air conditioner 空调 | manual手动空调 | ||
Rear view mirror 后视镜 | manual手动 | ||
Sleeping bed 卧铺 | single bed 单卧铺 | ||
CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 7800x2300x1500+250mm (LxWxH) | |
Material 材质 | 高强钢 T700 | ||
Lifting system 举升缸 | JIAHENG 191 | ||
Thickness(mm) 板材厚度 | Bottom 10mm, sides 8mm 底板10mm，边板8mm | ||
OVERALL DIMENSIONS/全车尺寸 | 10080×2550×3300 mm | ||
