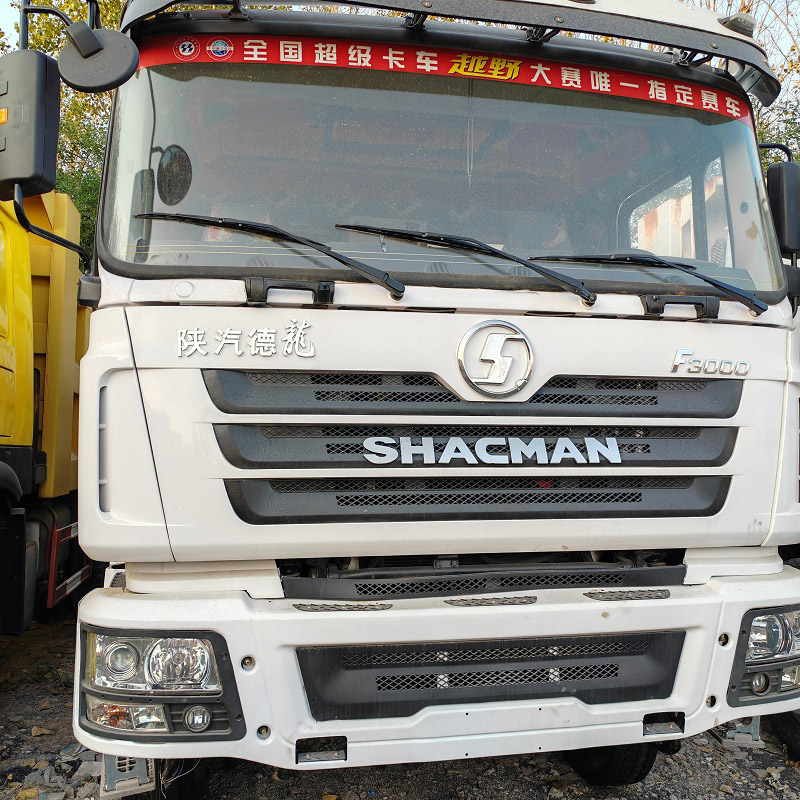

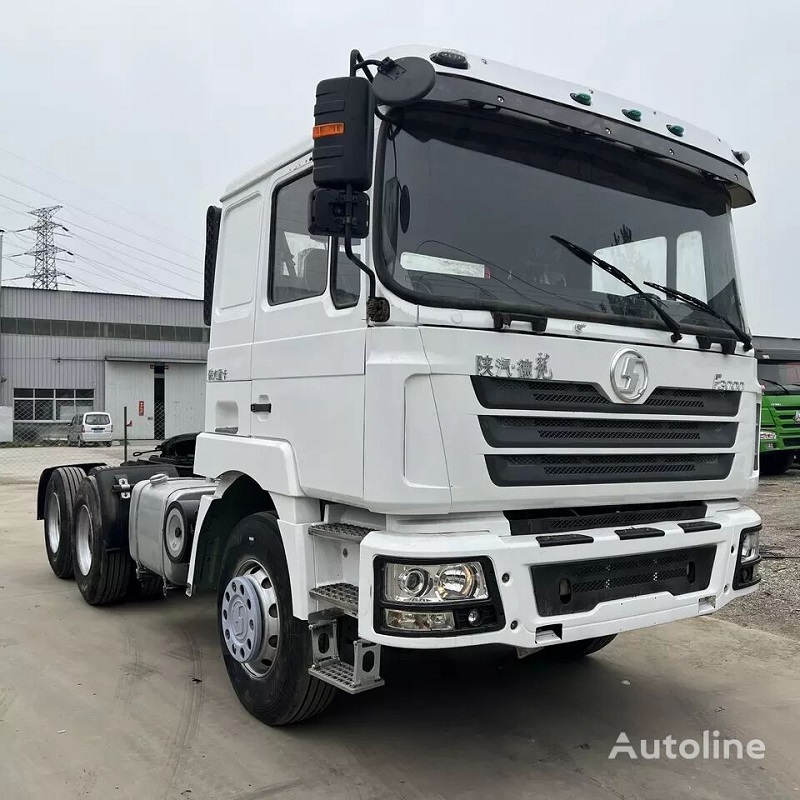

Shacman F3000 White Tractor Truck
1.A variety of powerful engines are available: the new WP12 four-valve dedicated Weichai and Cummins ISME National III engines are standard, with a power range of 270-460 horsepower and a maximum torque increased by 30% to 2110N.m. The low-speed and high-torque characteristics make it easier for the vehicle to climb hills with heavy loads.
2.Golden powertrain matching: It adopts the matching method known in the industry as Shaanxi Automobile's unique "golden combination", namely Weichai and Cummins engines, Fast gearbox and Hande MAN technology drive axle, ensuring efficient and stable power transmission.
Shacman F3000 White Tractor Truck
Shaanxi Auto Delong F3000 tractor adopts original MAN chassis technology. It has high reliability. After rigorous testing for one million kilometers, it has achieved 1.32 million kilometers without major repairs, and the failure rate has been reduced by 15%. In terms of power, it is equipped with the new WP12 four-valve dedicated Weichai and Cummins ISME National III engines as standard, with a power range of 270-460 horsepower and a maximum torque of 2110N・m. The low-speed and high-torque characteristics make heavy-load climbing easier. Its "golden combination" matching method, namely Weichai or Cummins engine, Fast gearbox and Hande MAN technology drive axle, ensures efficient and stable power transmission.
In terms of interior decoration and comfort, the cab of Shaanxi Auto Delong F3000 tractor adopts a four-point air suspension design, which can ensure the smoothness and comfort of the vehicle during operation. The air spring shock absorption and air seat are luxurious and comfortable, which can effectively prevent the driver from driving fatigue. The safety configuration is also excellent, equipped with ABS+ASR+EBL leading international braking system, ultra-wide brake shoes, efficient disc brake system, and high-strength integral anti-drilling bumper, as well as the domestic unique heavy-load long-distance downhill double insurance system, which provides a strong guarantee for driving safety.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | |
Driver position/驾驶员位置 | 左舵 Left Hand | |
Driving type/驱动形式 | 6*4 | |
Wheelbase/轴距(mm) | 3175+1400mm | |
Max. Speed/最高车速(km/h) | 100 km/h | |
Engine/发动机 | Brand/品牌 | WEICHAI/潍柴 |
Model/型号 | WP10 | |
Emission Standard/排放 | EURO II | |
Rated output power/功率（PS） | 380HP/283KW | |
Displacement (L)/排量 | 10L | |
Transmission/变速箱 | Brand/品牌 | FAST/法士特 |
Model/型号 | 12JSD180 | |
Front axle/前轴 | Model/型号 | MAN 9T |
Rear axle/后桥 | Model/型号 | HANDE 汉德 16T |
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | |
Steering/转向机 | ZF technology/ ZF技术 | |
Fuel tank/燃油箱 | 400L铝合金 Aluminum alloy | |
Frame/车架 | 850x300(8+8) | |
Wheels and tires/轮胎 | 12R22.5 | |
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | |
Parking brake:Air discharging with spring control/停车制动 | ||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | ||
驾驶室 | 液压主座椅、四点机械悬浮驾驶室、电控自动恒温空调、手动摇窗机、手动翻转、油浴式空滤器、金属保险杠 二级上车踏板，165Ah 维护蓄电池 Hydraulic main seat, four-point mechanical suspension cab, electronically controlled temperature air conditioner, manual operation window shaker, manual flip, oil bath air filter, metal bumper Two-stage car pedal, 165Ah maintenance battery, SHACMAN identification | |
