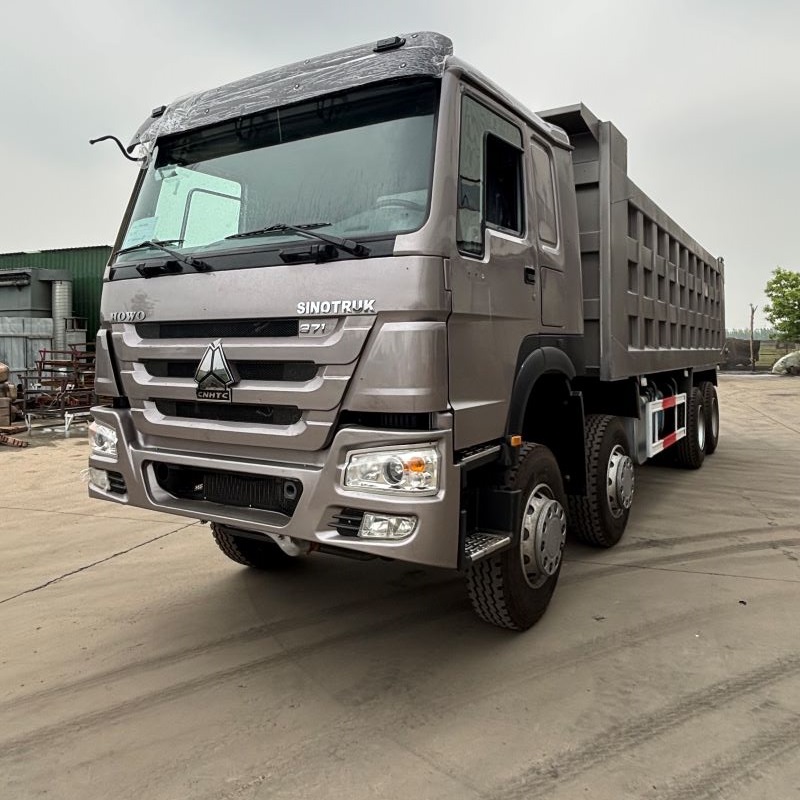

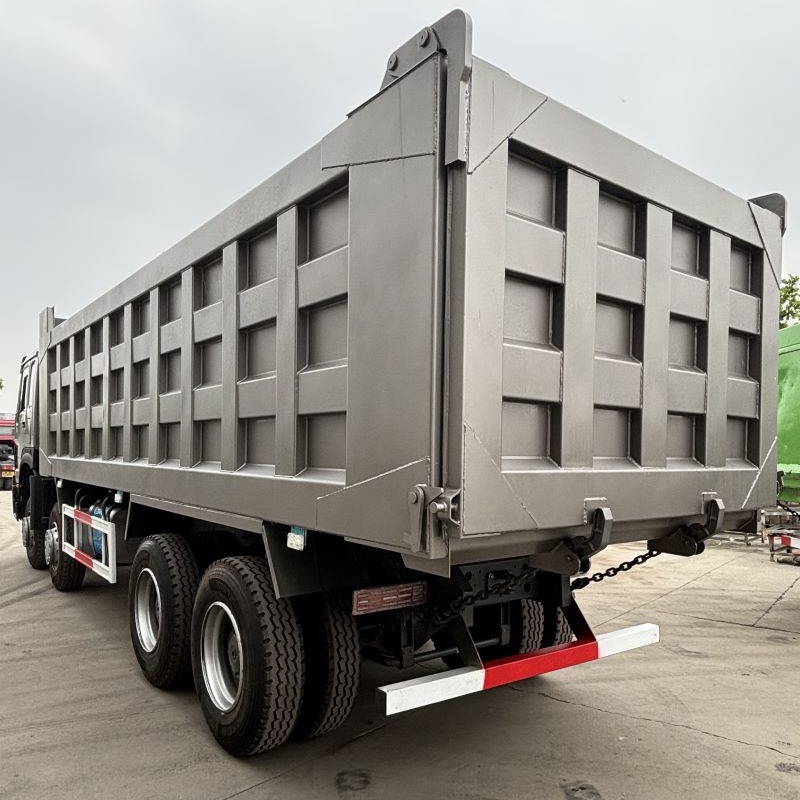

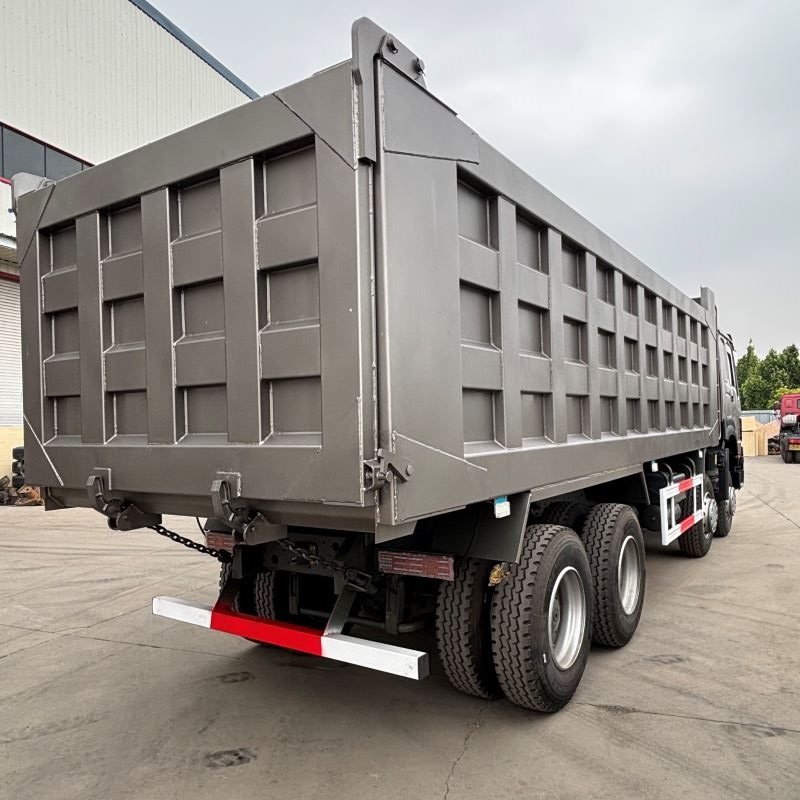

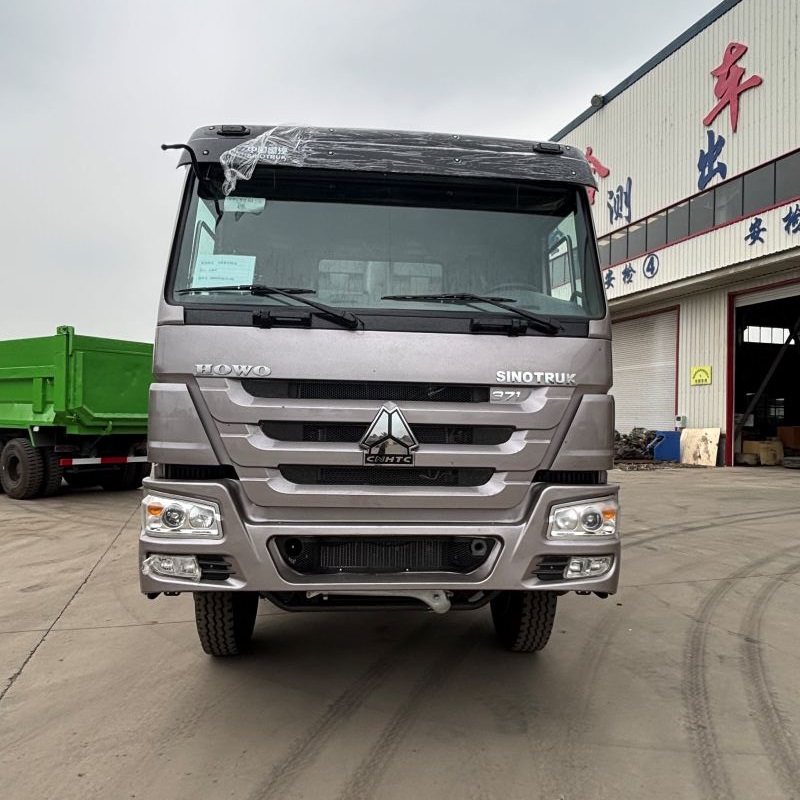

HOWO 371 8 × 4 Grey Dump Truck
1.HOWO dump trucks adopt the world-renowned chart concept, utilize MAN automotive technology, and integrate major scientific components from both domestic and international sources. The knowledge of adaptive acceleration technology endows cars with characteristics of excessive load capacity, overspeed, excessive reliability, excessive relief, and excessive efficiency.
2.The external dimensions of China National Heavy Duty Truck Group's Howo 8x4 dump truck are 10080mm * 2550mm * 3300mm. It can transport sand, stones, gravel, and other goods. The loading capacity is 40-60 tons. Ant Motors also offers different colors and designs for your logo for free, providing multiple color options such as red, green, yellow, gray, white, etc., to meet the personalized needs of different users.
HOWO 371 8 × 4 Grey Dump Truck
The HOWO dump truck is equipped with a left-hand drive system and a 371HP, WD615.47 engine. HW76 cabin, equipped with one berth. The dump truck can load about 40 tons of goods, is sturdy and durable, equipped with ABS braking system, widened brake and engine cylinder brake. ABS maintains directionality and operability under a certain braking coefficient, and provides braking to continuously defend the vehicle against abnormal braking conditions, ensuring the stability of the car brake. The typical overall performance and braking effect are greatly improved.
Adopting an 8 × 4 drive form, with a dual rear axle and single front axle structure, the front axle is responsible for supporting steering, while the rear axle is a dual drive with strong load-bearing capacity. For example, the AC16 rear axle can achieve a maximum load capacity of 18 tons, coupled with a solid chassis design and high-strength frame, the vehicle has excellent load-bearing capacity and can meet various heavy-duty transportation needs. It can transport large amounts of sand, coal, building materials and other goods.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 8*4 | ||
Wheelbase/轴距(mm) | 1950+3225+1350 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | WD615.47 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 371HP/276KW | ||
Cylinder in line 直列缸数 | 6 | ||
Displacement (L)/排量 | 9.97L | ||
Transmission/变速箱 | Type 类型 | Manual 手动 | |
Model/型号 | SINOTRUK HW19710 10-speed manual transmission 中国重汽HW19710 10挡 手动变速箱 | ||
Front axle/前轴 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | HF9 | ||
Rear axle/后桥 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | 16T AC16双级减速桥 double reduction driving axle Speed ratio 速比：5.262 | ||
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | Type 类型 | Bottle neck, double frame前宽后窄，双层车架 | |
Dimension (mm) 车架尺寸 | 940-850 (W) 300 (H) | ||
Section thickness (mm) 厚度 | 8+8+8 | ||
Suspension/悬架 | Front 前悬架 | Semi-elliptic 多片簧 12pcs | |
Rear 后悬架 | Semi-elliptic 多片簧 14pcs | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
CAB INTERIOR 驾驶室内部配置 | Driver seat 驾驶室座椅 | mechanical 机械式 | |
Lighter 点烟器 | Yes | ||
Entertainment 娱乐设置 | mp3+radio | ||
Cab maintanence titled 驾驶室翻转 | manual 手动翻转 | ||
Air conditioner 空调 | manual手动空调 | ||
Rear view mirror 后视镜 | manual手动 | ||
Sleeping bed 卧铺 | single bed 单卧铺 | ||
CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 7800x2300x1500+250mm (LxWxH) | |
Material 材质 | 高强钢 T700 | ||
Lifting system 举升缸 | JIAHENG 191 | ||
Thickness(mm) 板材厚度 | Bottom 10mm, sides 8mm 底板10mm，边板8mm | ||
OVERALL DIMENSIONS/全车尺寸 | 10080×2550×3300 mm | ||
