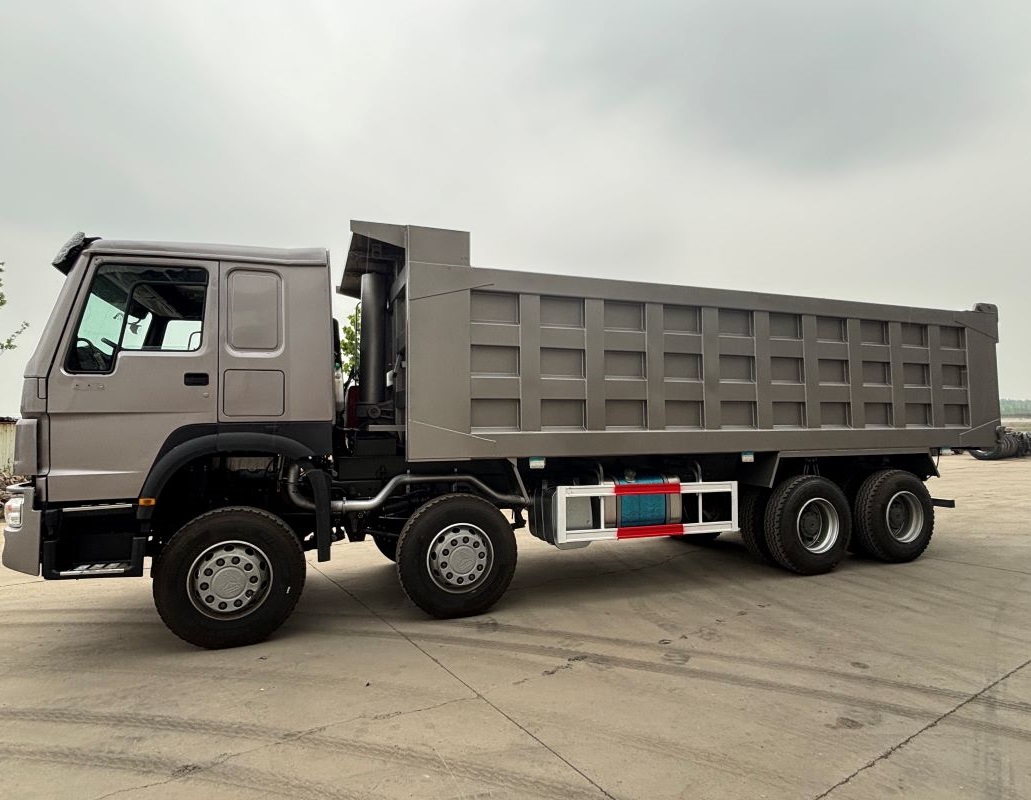

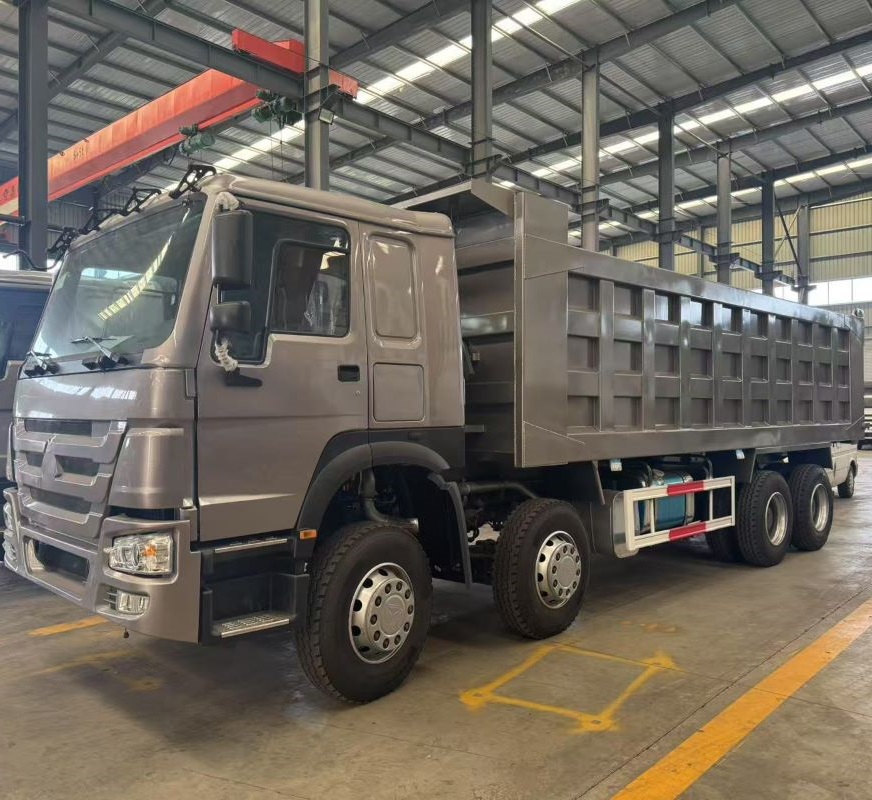

Howo8 × 4 Gray Dump Truck
1.China National Heavy Duty Truck HOWO 8 × 4 dump truck, with a rated load capacity of over 15 tons, meets the transportation needs of a large number of goods. The 8 × 4 drive form has good passability and climbing ability, and can adapt to various complex road conditions such as construction sites and mines.
2.Equipped with high-power engines, such as the China National Heavy Duty Truck Group WD615.47 engine, with a power output of up to 371 horsepower, providing sufficient power output to easily handle heavy-duty transportation.
3.Adopting high-strength manganese steel frame, engineering version power chain, etc., to improve vehicle durability and fatigue resistance, and adapt to harsh working conditions.
Howo8 × 4 Gray Dump Truck
Strong load-bearing capacity: Adopting high-strength frames, such as optional 8+8 and 8+8+8 frames, with the strongest tensile and torsional resistance in China. Equipped with HF9-ton front axle and AC16 two-stage reduction axle, it has a super strong load-bearing capacity and is matched with the classic engineering (NS07) rear suspension, which can meet different working conditions. In addition, the suspension of the car adopts a layout of 4 front and 8 rear, and is equipped with thick lateral stabilizer bars, effectively improving the stability of the chassis.

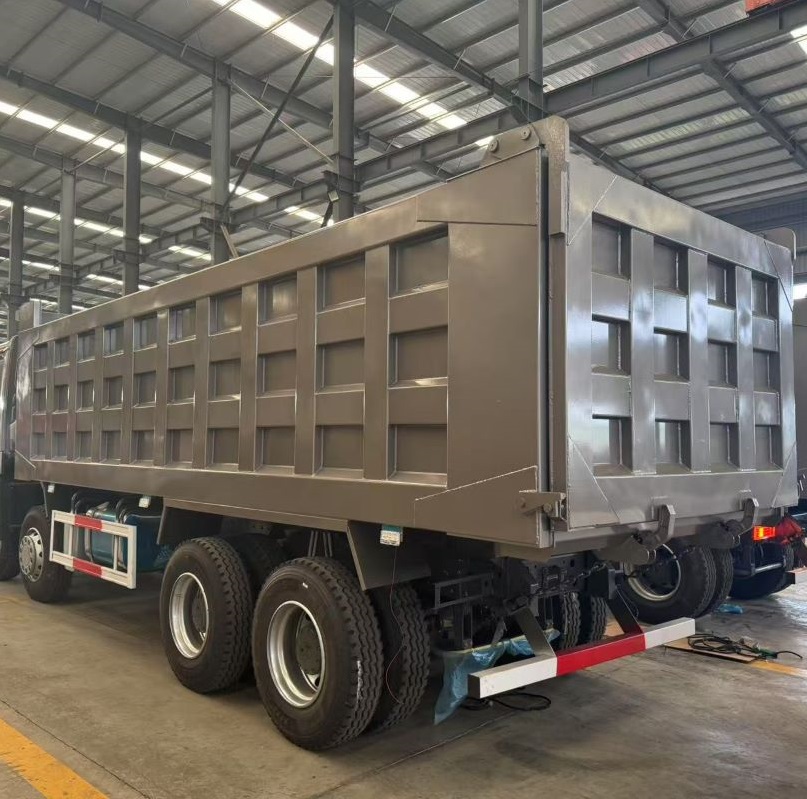

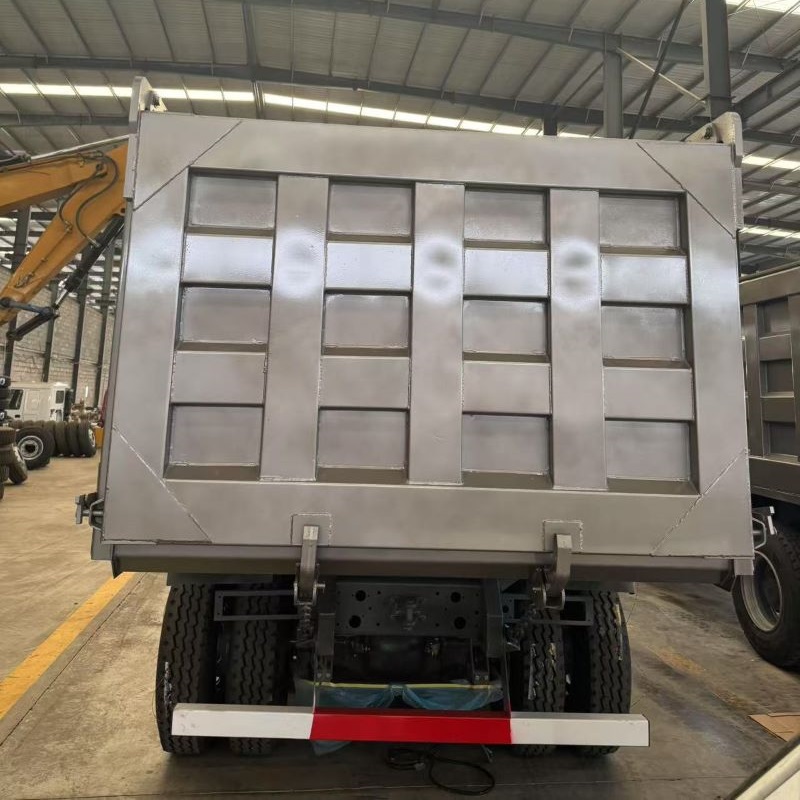

The standard size of a square cargo box (e.g. 7.8 meters long x 2.3 meters wide x 1.5 meters high) and volume are 25-28 cubic meters, which is 2-3 cubic meters more than a U-shaped box of the same size (e.g. 1.5 tons more sand and gravel per trip). A coal transportation user calculated that an average of 8 trips per day, an average of 400 tons transported per month, and an increase in income of over 8000 yuan. Adopting manganese steel+10mm bottom plate+8mm side plate, with external reinforcement bars and detachable column design (spacing can be customized to 50-80cm), the load-bearing strength can be adjusted according to the type of goods. For example, when pulling ore, the reinforcement bars should be increased (with a spacing of 50cm), and when pulling bagged cement, the spacing should be widened (80cm) and equipped with side railings, while considering the efficiency of heavy loading and unloading.
The core components are mature and reliable: using China National Heavy Duty Truck's gearbox/axle, which has been verified for millions of kilometers, adapts to harsh working conditions, and extends maintenance cycles. Optimization of chassis and cargo box: The 8+8+8 or 8+8 chassis layout has strong tensile strength, and the cargo box is designed with high-strength steel and reinforced pressure points, which are wear-resistant and deformation resistant; Optional hydraulic stabilizer to ensure unloading stability.
Choosing the HOWO 8 × 4 dump truck is not only about choosing a high-performance transportation vehicle, but also about choosing an efficient, safe, and economical operating mode. No matter how complex and varied your transportation needs are, HOWO 8 × 4 dump trucks can provide you with strong support, helping you navigate smoothly on the transportation road and win every challenge.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 8*4 | ||
Wheelbase/轴距(mm) | 1950+3225+1350 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | WD615.47 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 371HP/276KW | ||
Cylinder in line 直列缸数 | 6 | ||
Displacement (L)/排量 | 9.97L | ||
Transmission/变速箱 | Type 类型 | Manual 手动 | |
Model/型号 | SINOTRUK HW19710 10-speed manual transmission 中国重汽HW19710 10挡 手动变速箱 | ||
Front axle/前轴 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | HF9 | ||
Rear axle/后桥 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | 16T AC16双级减速桥 double reduction driving axle Speed ratio 速比：5.262 | ||
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | Type 类型 | Bottle neck, double frame前宽后窄，双层车架 | |
Dimension (mm) 车架尺寸 | 940-850 (W) 300 (H) | ||
Section thickness (mm) 厚度 | 8+8+8 | ||
Suspension/悬架 | Front 前悬架 | Semi-elliptic 多片簧 12pcs | |
Rear 后悬架 | Semi-elliptic 多片簧 14pcs | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
CAB INTERIOR/ 驾驶室内部配置 | Driver seat 驾驶室座椅 | mechanical 机械式 | |
Lighter 点烟器 | Yes | ||
Entertainment 娱乐设置 | mp3+radio | ||
Cab maintanence titled 驾驶室翻转 | manual 手动翻转 | ||
Air conditioner 空调 | manual手动空调 | ||
Rear view mirror 后视镜 | manual手动 | ||
Sleeping bed 卧铺 | single bed 单卧铺 | ||
CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 7800x2300x1500+250mm (LxWxH) | |
Material 材质 | 高强钢 T700 | ||

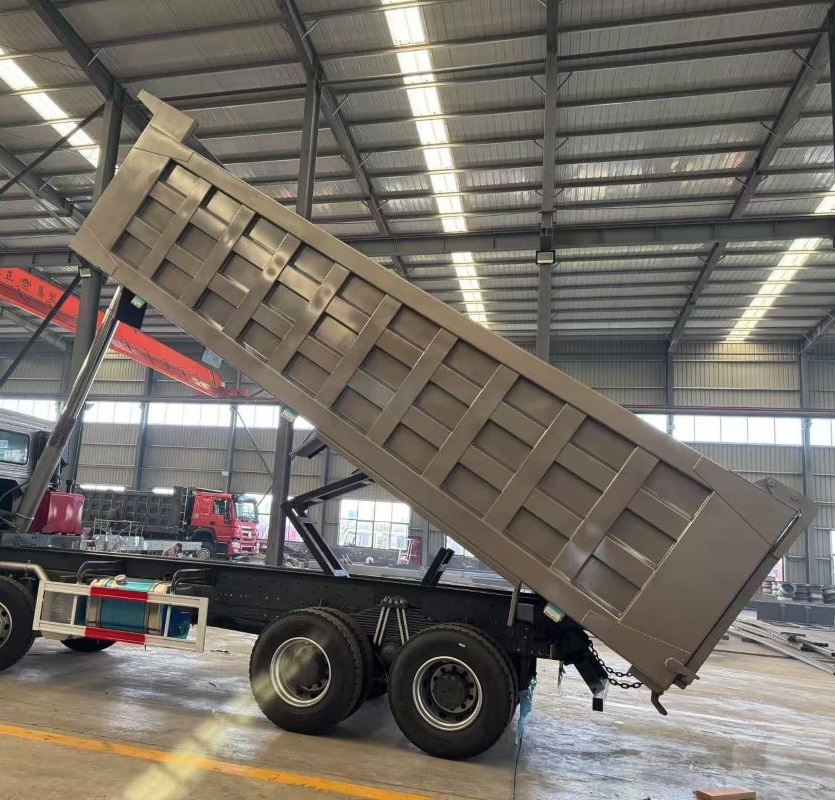

Lifting system 举升缸 | JIAHENG 191 | ||
Thickness(mm) 板材厚度 | Bottom 10mm, sides 8mm 底板10mm，边板8mm | ||
OVERALL DIMENSIONS/全车尺寸 | 10080×2550×3300 mm | ||
