HOWO 6 × 4 Yellow Dump Truck
1.HOWO dump trucks use a 6-cylinder WD615.47 diesel engine (380 horsepower, Euro II emissions). The shape of the force is 6X4. The gearbox adopts a mature China National Heavy Duty Truck Group gearbox, with a maximum of 10 gears, and the power continuity and explosion pressure are very prominent. China National Heavy Duty Truck Group's Howo trains its dump trucks with high-level debugging technology knowledge, enabling the engine and gearbox to perform at their best.
2.The HOWO 6 × 4 tractor, with its balance of power, reliability, and economy, is particularly suitable for medium to long-distance heavy-duty users who value cost-effectiveness. If efficient logistics is the main demand, lightweight versions such as aluminum alloy wheels and single-layer frames can also be considered to further improve fuel economy. Suggest selecting a matching engine power and speed ratio configuration based on actual load capacity, road conditions, and budget.
HOWO 6 × 4 Yellow Dump Truck
A dump truck is a complex and important type of machinery. In the world of heavy vehicles, its design has various key components that coordinate work. It is mainly composed of an engine, clutch, gears, transmission shaft, steering shaft, drive axle, frame, and tires. The engine is the core of a dump truck and a very important component. It has many options in terms of horsepower (including 336 horsepower, 371 horsepower, 380 horsepower, and 420 horsepower). Different levels of horsepower can be used for different operational needs. However, it also has certain requirements for the quality of oil products. This is because the performance and lifespan of the engine are closely related to the quality of the oil used. There are various engine power requirements in different regions around the world. For example, in some large construction projects in developed countries with advanced engineering technology, higher horsepower engines may be required to effectively handle heavy loads and complex terrain. On the other hand, in some developing countries with relatively small construction scales, a medium horsepower engine may be sufficient. Therefore, users can choose horsepower that is suitable for their specific country's situation.

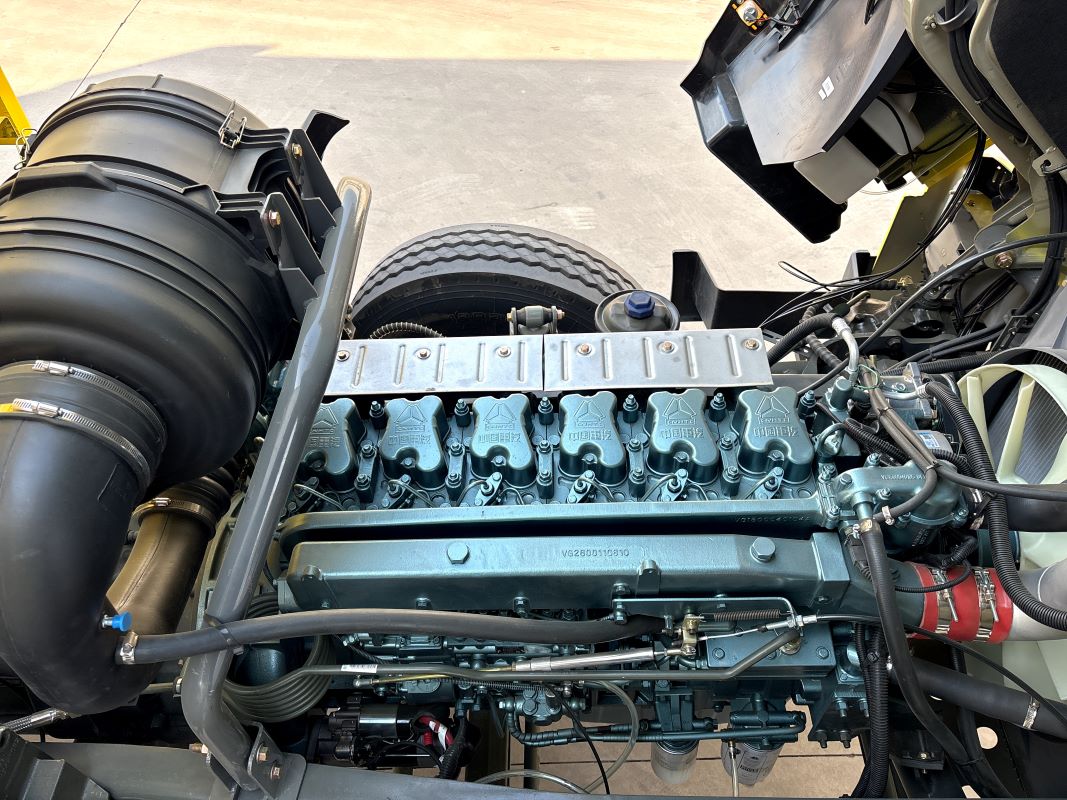

Howo6 × 4 dump truck is equipped with China National Heavy Duty Truck WD615.47 engine, which is in the form of inline six cylinder, water-cooled, four stroke, turbocharged intercooled, direct injection, with 371 horsepower and 1500N · m torque, providing powerful power output to meet heavy-duty transportation needs. The lowest fuel consumption rate at full load is low, reducing operating costs. This engine has a simple structure, strong universality of components, and easy maintenance. It is a high-performance and highly reliable diesel engine that provides powerful power support for HOWO 6 × 4 dump trucks and meets various working conditions.

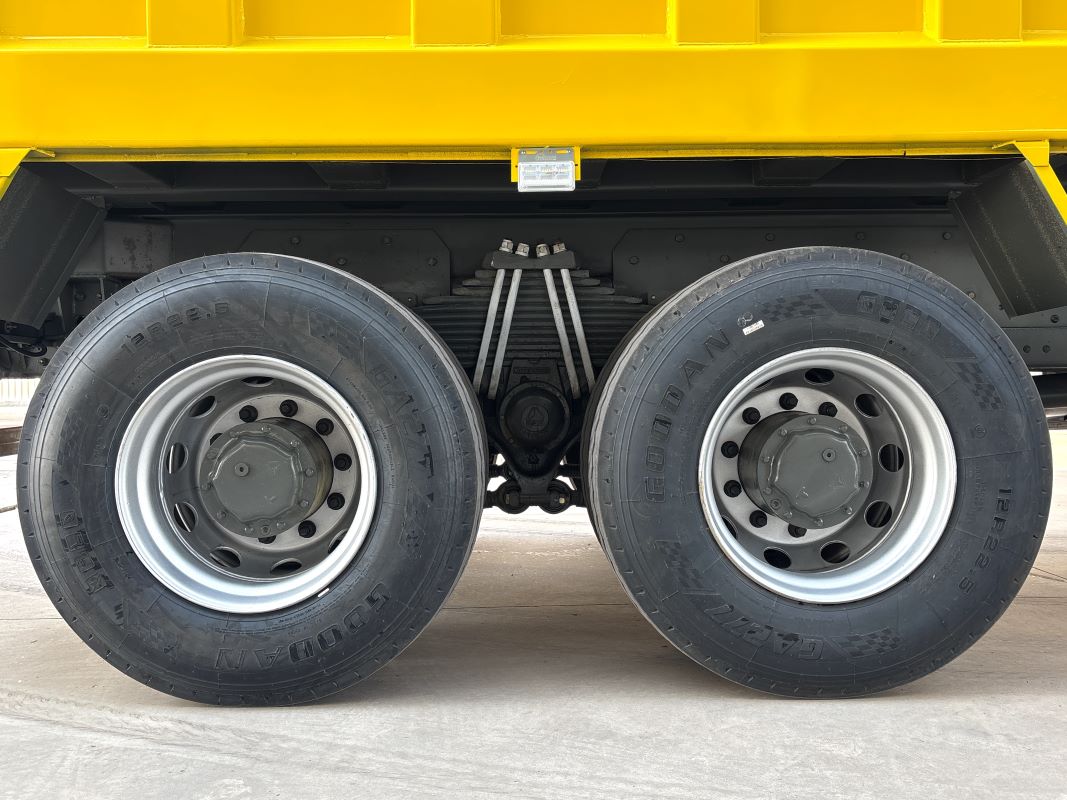

HOWO 6 × 4 dump truck is equipped with iron steel rims and 12.00R20 radial steel tires, combined with a strong grip mahjong block pattern design, further improving the vehicle's ability to escape and durability in complex environments. It is suitable for most roads around the world, whether it is flat urban roads or challenging off-road environments.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 6*4 | ||
Wheelbase/轴距(mm) | 3775+1400 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | WD615.47 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 371HP/276KW | ||
Cylinder in line 直列缸数 | 6 | ||
Air filter element/空滤器 | Oil bath air filter 油浴式空滤器 | ||
Displacement (L)/排量 | 9.97L | ||
Transmission/变速箱 | Type 类型 | Manual 手动 | |
Model/型号 | SINOTRUK HW19710 10-speed manual transmission 中国重汽HW19710 10挡 手动变速箱 | ||
Front axle/前轴 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | HF9 | ||
Rear axle/后桥 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | 16T AC16双级减速桥 double reduction driving axle Speed ratio 速比：5.262 | ||
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | Type 类型 | Bottle neck, double frame前宽后窄，双层车架 | |
Dimension (mm) 车架尺寸 | 940-850 (W) 300 (H) | ||
Section thickness (mm) 厚度 | 8+8 | ||
Suspension/悬架 | Front 前悬架 | Semi-elliptic 多片簧 12pcs | |
Rear 后悬架 | Semi-elliptic 多片簧 14pcs | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
CAB INTERIOR 驾驶室内部配置 | Driver seat 驾驶室座椅 | mechanical 机械式 | |
Lighter 点烟器 | Yes | ||
Entertainment 娱乐设置 | mp3+radio | ||
Cab maintanence titled 驾驶室翻转 | manual 手动翻转 | ||
Air conditioner 空调 | manual手动空调 | ||
Rear view mirror 后视镜 | manual手动 | ||
Sleeping bed 卧铺 | single bed 单卧铺 | ||
CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 5800x2300x1600(LxWxH) | |
Material 材质 | 高强钢 T700 | ||
Lifting system 举升缸 | JIAHENG 179 | ||
Thickness(mm) 板材厚度 | Bottom 14mm, sides 12mm 底板14mm，边板12mm | ||
Other 其他 | 600L Sprinkler淋水器 | ||
OVERALL DIMENSIONS/全车尺寸 | 8650×2550×3300 mm | ||
