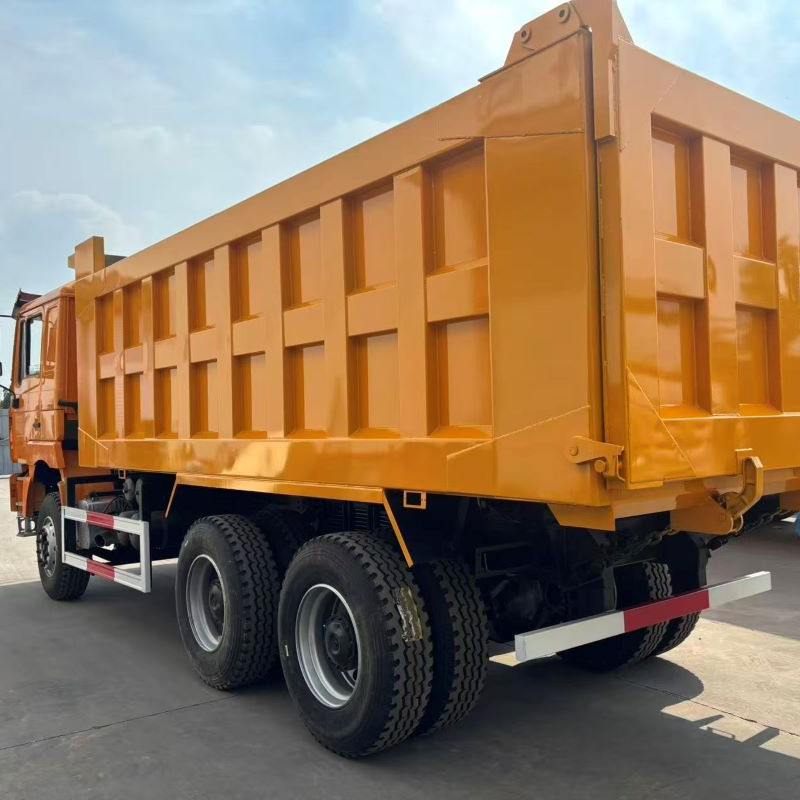

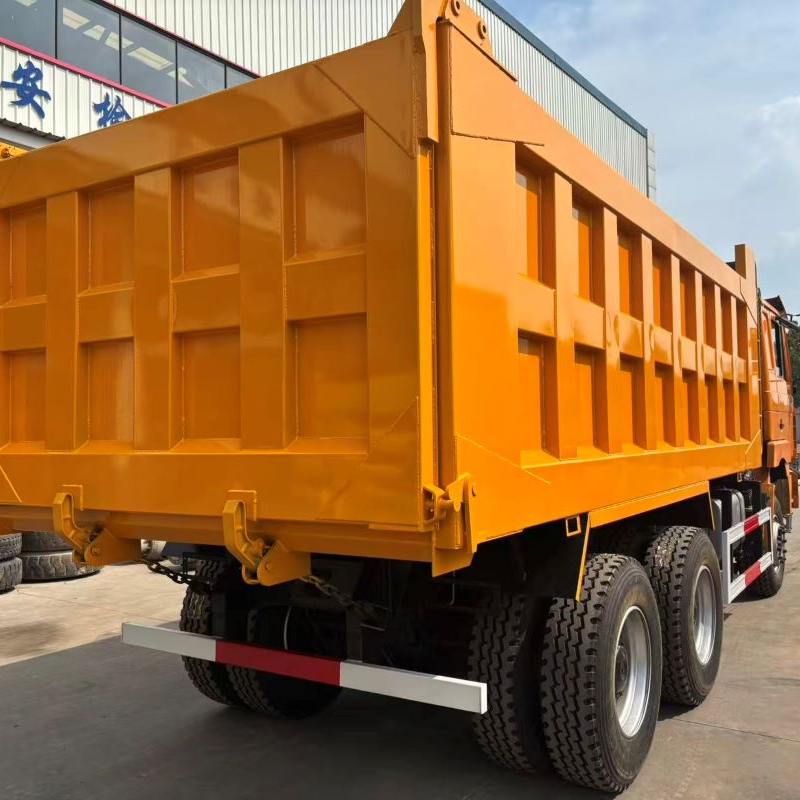

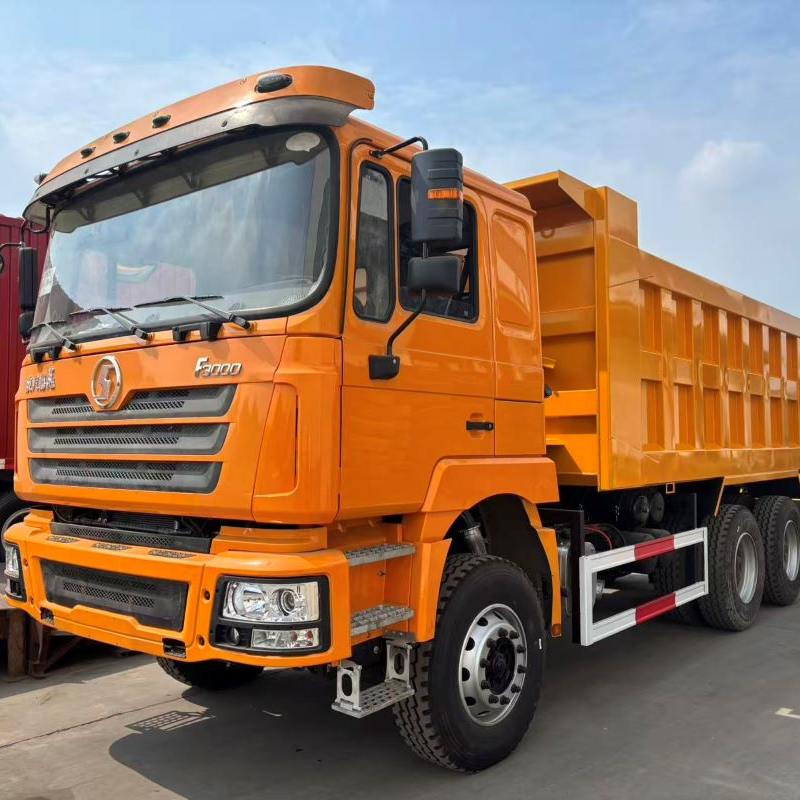

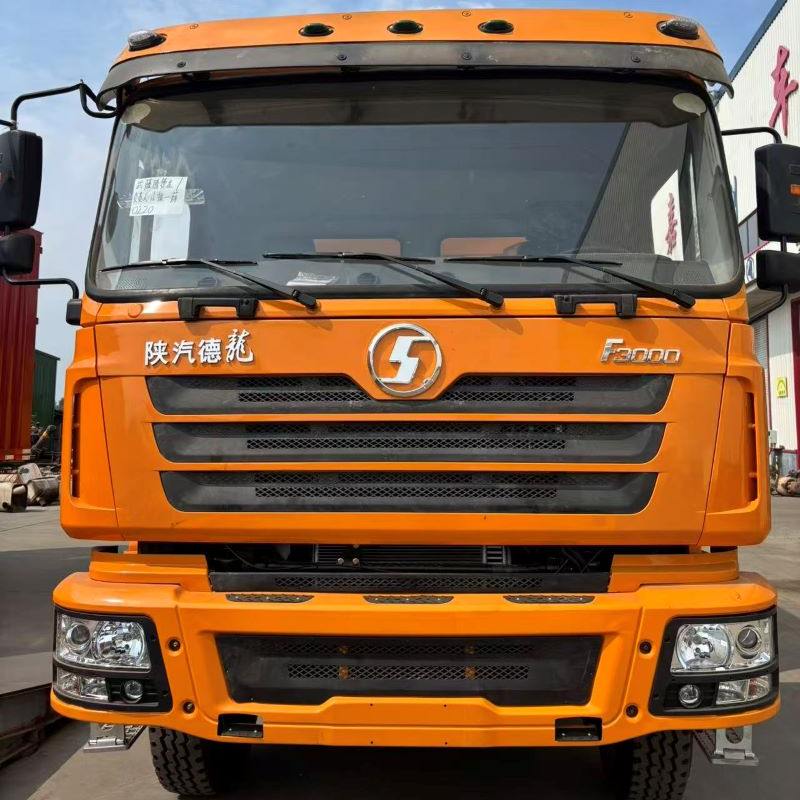

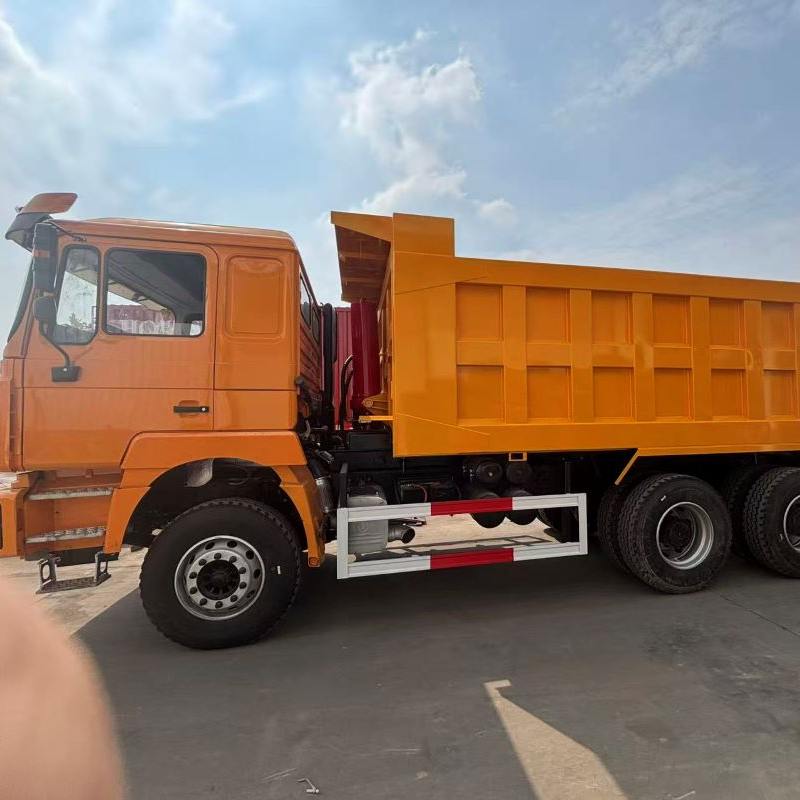

Shacman F3000 6X4 Dump Truck
The WP10 engine boasts high low-speed torque, providing powerful propulsion for complex road conditions and heavy-load climbing. For example, when transporting construction materials on steep slopes in mountainous areas, the WP10 engine's powerful low-speed torque allows the vehicle to easily climb, reducing gear shifting, improving transport efficiency, and preventing stalls caused by insufficient power. Power output ranges from 240 to 375 horsepower to meet the diverse power needs of different users and operating conditions. Small construction teams undertaking short-distance, low-load earthmoving work can choose a lower-horsepower version to control costs. Large mines transporting large quantities of ore can choose a higher-horsepower version to ensure high-speed travel under heavy loads, ensuring efficient transport tasks.
The Fast transmission's unique high-slung, fine-tooth design provides a gear mesh overlap greater than 2, enhancing mesh strength and torque transmission capacity. Combined with the Hande Steyr drive axle, the vehicle's overall transmission efficiency is higher. This means engine power can be more effectively transmitted to the wheels, reducing power loss, improving vehicle performance and fuel efficiency, and enabling efficient operation in all road conditions.
The WP10 engine is equipped with the latest Bosch high-pressure common rail system and built-in EGR technology. An intelligent ECU precisely controls fuel injection, achieving injection pressures as high as 1600 bar. This significantly improves fuel atomization and ensures complete diesel combustion. This significantly reduces fuel consumption during daily operations. For example, in long-distance coal transport, it can achieve a significant fuel cost savings compared to similar engines. This is complemented by a multi-power fuel-saving switch, a water-removing filter, a fuel-saving thermostatic fan, and advanced cylinder deactivation technology to further enhance fuel efficiency. During unloaded return trips, the multi-power fuel-saving switch adjusts the engine operating mode to reduce fuel injection. Cylinder deactivation technology deactivates some cylinders under specific operating conditions, minimizing energy waste and improving combustion efficiency by 10%.
The Fast transmission utilizes a world-leading dual-countershaft structure for both main and auxiliary gearboxes. This design reduces gear stress by 50%, bearing only half the load, significantly improving transmission reliability. In the frequent gear-shifting environments of construction sites, this effectively reduces gear wear, extends transmission life, and reduces maintenance costs. With distinct forward and reverse gears, a narrow ratio step, and a wide ratio range, the Fast transmission precisely matches the WP10 engine's power output. During acceleration, selecting a suitable low gear maximizes engine torque. At high speeds, shifting to a high gear ensures smooth operation while reducing engine speed and conserving fuel. This balance of fuel economy and power is highly adaptable to complex operating conditions.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 6*4 | ||
Wheelbase/轴距(mm) | 3800+1350mm | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | WEICHAI/潍柴 | |
Model/型号 | WP10 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 380HP/283KW | ||
Displacement (L)/排量 | 12L | ||
Transmission/变速箱 | Brand/品牌 | FAST/法士特 | |
Model/型号 | 12JSD180 | ||
Front axle/前轴 | Model/型号 | MAN 9T | |
Rear axle/后桥 | Model/型号 | 16T STR 双级减速桥 double reduction driving axle Speed ratio 速比：4.769 | |
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Frame/车架 | 850x300(8+8) | ||
Suspension/悬架 | Front and rear multi-leaf spring twelve main flims + four horse riding 前后多片簧 十二主片+四骑马 | ||
Fuel tank/燃油箱 | 300L铝合金 Aluminum alloy | ||
Wheels and tires/轮胎 | 12.00R20 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
驾驶室 | 液压主座椅、四点机械悬浮驾驶室、电控自动恒温空调、手动摇窗机、手动翻转、油浴式空滤器、金属保险杠 二级上车踏板，165Ah 维护蓄电池 Hydraulic main seat, four-point mechanical suspension cab, electronically controlled temperature air conditioner, manual operation window shaker, manual flip, oil bath air filter, metal bumper Two-stage car pedal, 165Ah maintenance battery, SHACMAN identification | ||
CARGO BOX SPECS/自卸车大箱参数 | DIMENSIONS (mm) 尺寸 | 5800x2300x1600(LxWxH) | |
Material 材质 | 高强钢 T700 | ||
Lifting system 举升缸 | JIAHENG 179 | ||
Thickness(mm) 板材厚度 | Bottom 14mm, sides 12mm 底板14mm，边板12mm | ||
Other 其他 | 600L Sprinkler淋水器 | ||
OVERALL DIMENSIONS/全车尺寸 | 8650×2550×3300 mm | ||
Company Profile

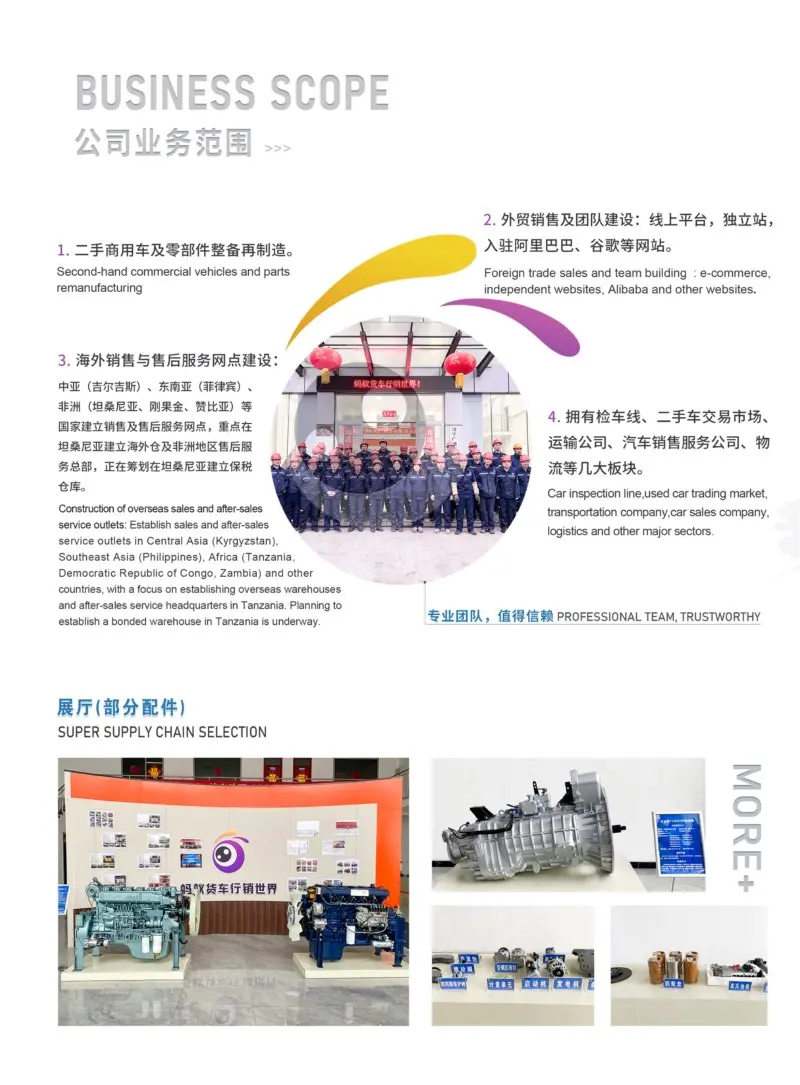

Company Business Scope
1.Second-hand commercial vehicles and parts remanufacturing
2.Foreign trade sales and team building:e-commerce, independent websites,Alibaba and other websites.
3.Construction of overseas sales and after-sales service outlets:Establish sales and after-sales service outlets in Central Asia(Kyrgyzstan),Southeast Asia(Philippines),Africa(Tanzania,Democratic Republic of Congo,Zambia)and other countries,with a focus on establishing overseas warehouses and after-sales service headquarters in Tanzania.Planning to establish a bonded warehouse in Tanzania is underway.
4.Car inspection line,used car trading market, transportation company,car sales company,logistics and other major sectors.
In May 2024,the company established a branch company,Huatong Logistics Co.,Ltd.,in Tanzania, and set up an overseas warehouse with an area of about 7,000 square meters.In July 2024,the company established an overseas warehouse with an area of about 6,500 square meters in the Democratic Republic of the Congo.

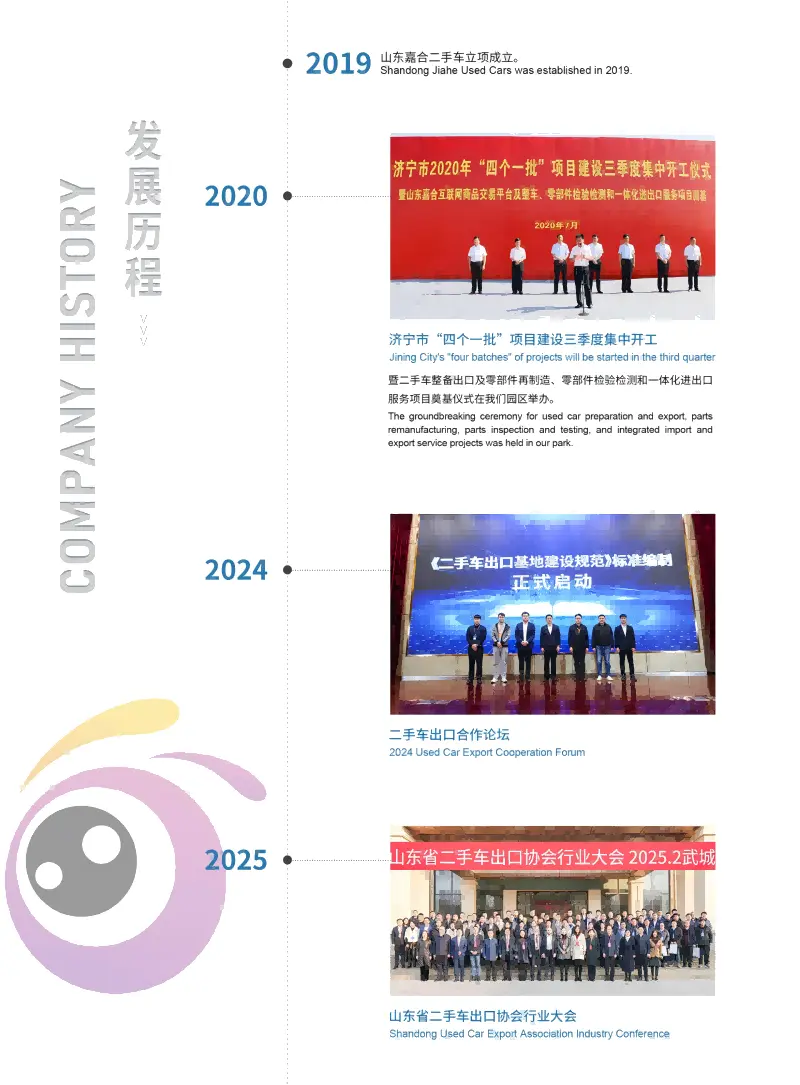

Ant Car Network (Shandong)E-commerce Co.,Ltd.is a specific business company developed from Shandong Jiahe Used Car Trading Co.,Ltd.to adapt to and connect with the international market.The company was established through the shareholders'meeting on June 29,2023,and organized 18 people to entrust Beijing Zhongzi Alliance Management Co.,Ltd.to conduct second-hand car repair and disassembly business training.At present,the professional team of each process has grown to 58 people.The company focuses on building the automobile parts assembly,manufacturing and recycling industry.Relying on the used car export platform and leveraging overseas market resources,it expands markets in Central Asia,Southeast Asia,Africa and other countries along the Belt and Road,shapes a new export trade industry structure for used commercial vehicle complete vehicles and parts processing and remanufacturing in Jining,and cultivates new formats for maintenance and remanufacturing.
Product Show

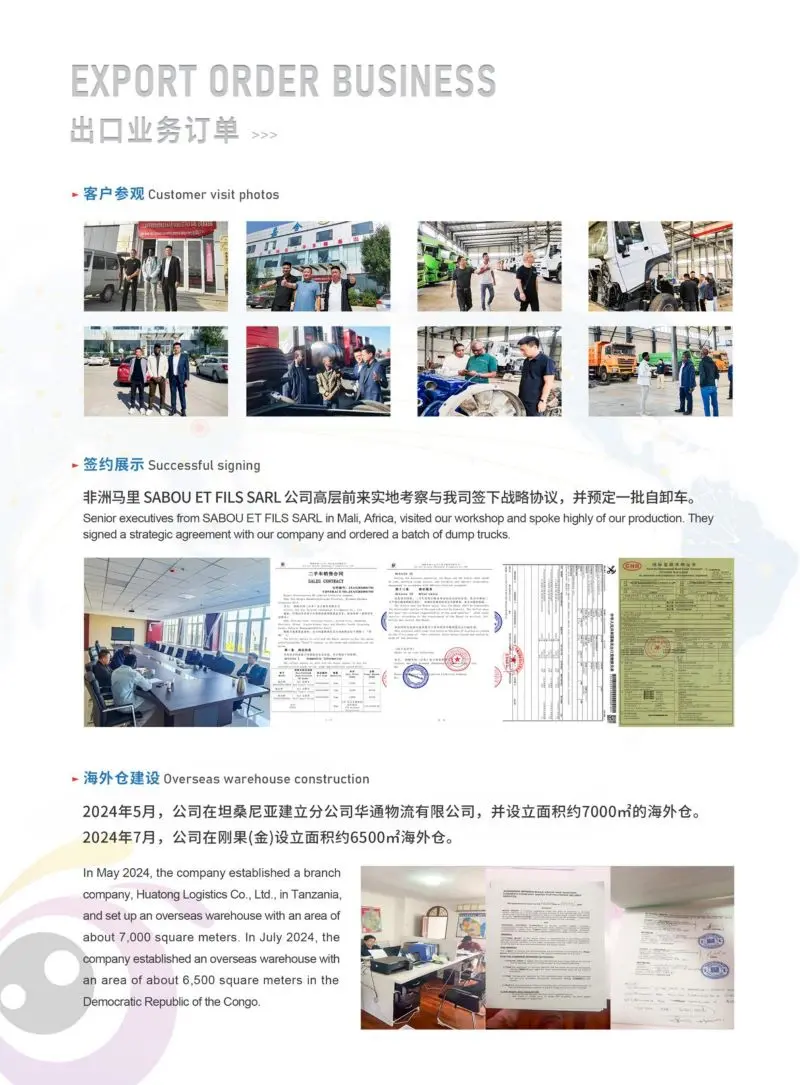

Customer visit
