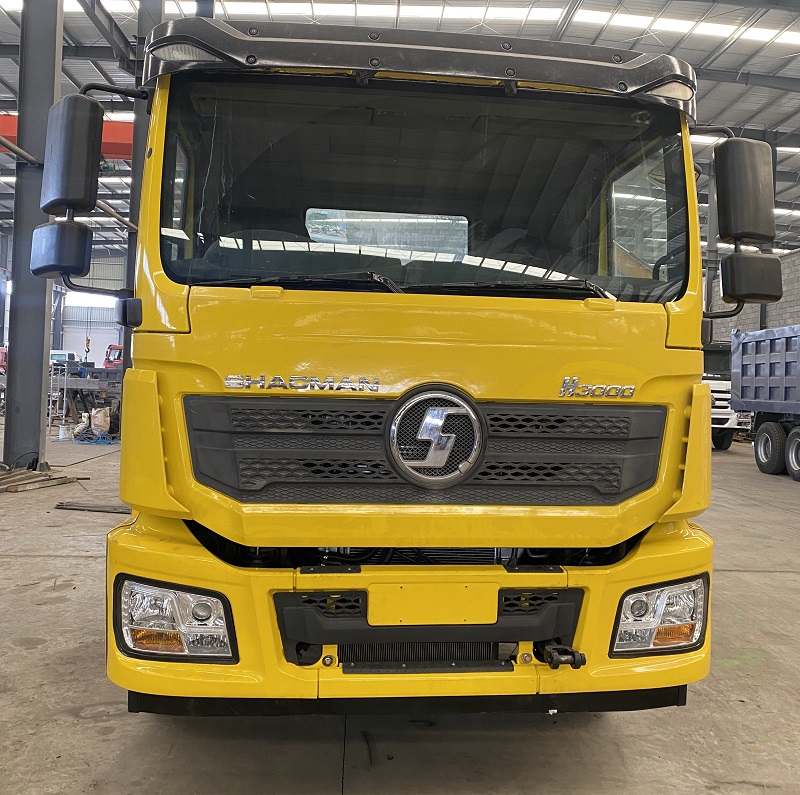

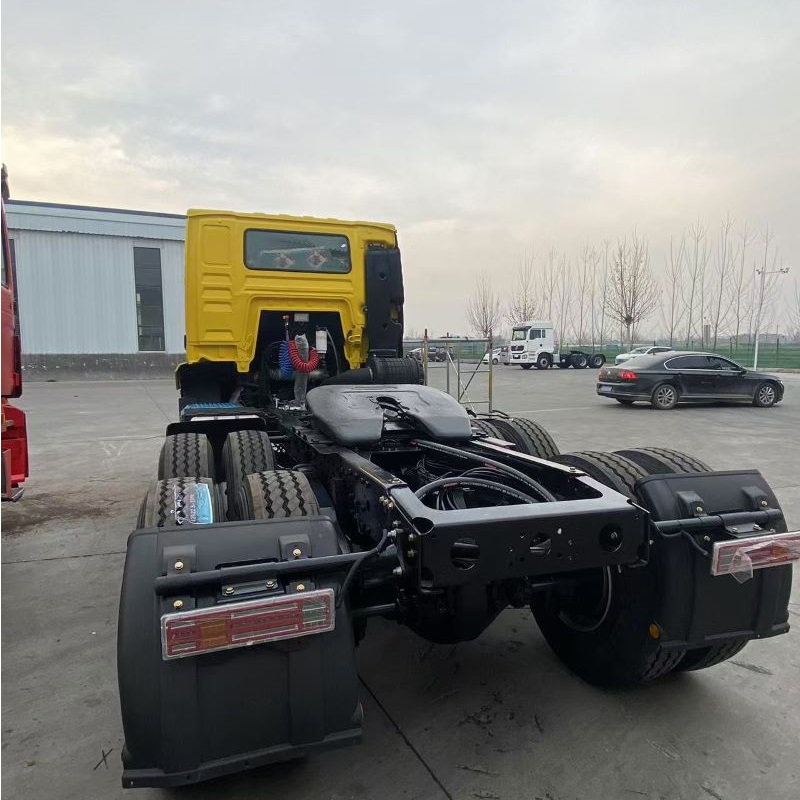

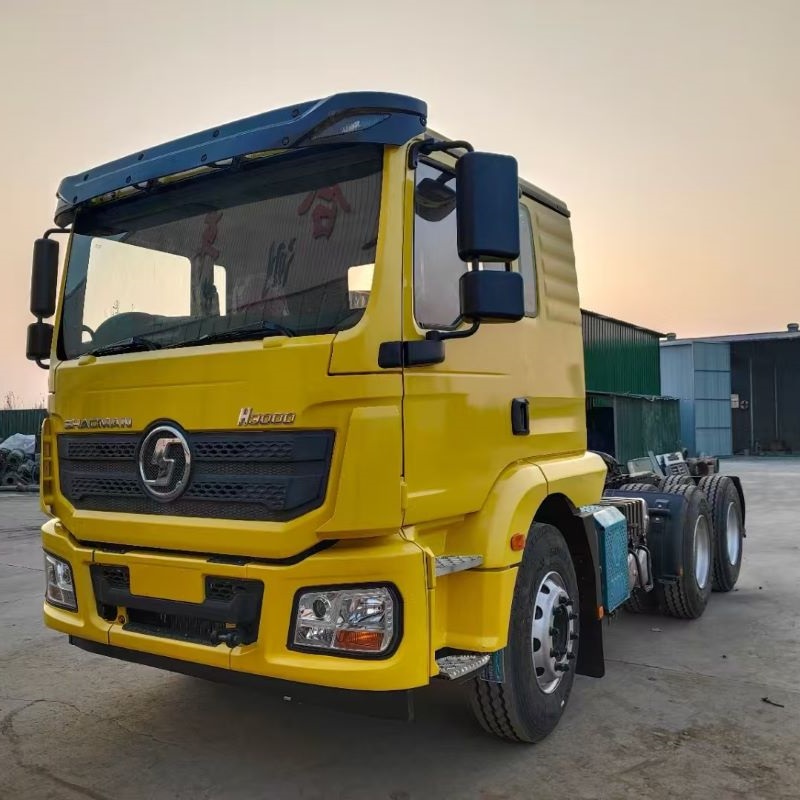

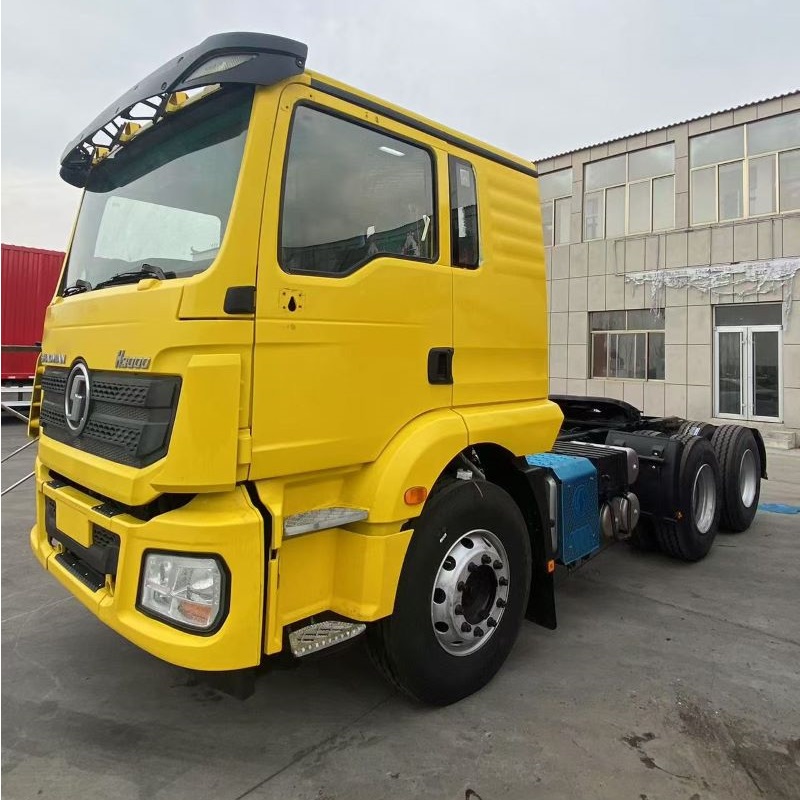

Shaanxi Automobile H3000 Tractor Truck
1.A variety of engine options, equipped with WP10 and WP12 series engines, with a wide horsepower range to meet different transportation needs. Reinforced axles, the front axle uses Sinotruk HF9, and the rear axle is 13T series, with strong load-bearing capacity and adaptability to complex road conditions.
2.Good vision, large front windshield and side windows provide a wide field of vision and improve driving safety. Low wind resistance design and streamlined appearance design reduce the wind resistance coefficient and further save fuel.
Shaanxi Automobile H3000 Tractor Truck
The core components such as the engine and gearbox adopt standardized design, which is convenient for maintenance and reduces downtime. For example, WD615.47 (371 horsepower, Euro II emission), with a maximum torque of 1500N·m, is suitable for medium and short-distance heavy-load transportation. With the Sinotruk HW19710 10-speed manual gearbox, the power continuity, transmission capacity and explosive power are very outstanding. The engine optimizes combustion efficiency and is equipped with low rolling resistance tires (such as 12.00R22.5), so that the fuel consumption per 100 kilometers is controlled within a reasonable range, reducing operating costs.
Shaanxi Automobile uses high-level tuning technology to train Shaanxi Automobile tractors so that the engine and transmission can perform at their best. When you step on the accelerator, it will provide a stable reaction force, allowing the driver to feel the fun of actual control. In general, the power and handling of Shaanxi Automobile tractors have strong advantages among similar models.
Product Paramenters
MODEL/车型 | ZZ3257M3866C | ||
Driver position/驾驶员位置 | 左舵 Left Hand | ||
Driving type/驱动形式 | 6*4 | ||
Wheelbase/轴距(mm) | 2020+1830 | ||
Max. Speed/最高车速(km/h) | 100 km/h | ||
Engine/发动机 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | WD615.47 | ||
Emission Standard/排放 | EURO Ⅱ | ||
Rated output power/功率（PS） | 371HP/276KW | ||
Cylinder in line 直列缸数 | 6 | ||
Displacement (L)/排量 | 9.97L | ||
Transmission/变速箱 | Type 类型 | Manual 手动 | |
Model/型号 | SINOTRUK HW19710 10-speed manual transmission 中国重汽HW19710 10挡 手动变速箱 | ||
Front axle/前轴 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | HF9 | ||
Rear axle/后桥 | Brand/品牌 | SINOTRUK /重汽 | |
Model/型号 | 13T AC13 双级减速桥 double reduction driving axle Speed ratio 速比：4.7 | ||
Clutch/离合器 | ￠430 diaphragm clutch￠430离合器 | ||
Steering/转向机 | ZF technology/ ZF技术 | ||
Fuel tank/燃油箱 | 400L铝合金 Aluminum alloy | ||
Frame/车架 | 850x300(8+8) | ||
Suspension/悬架 | Front and rear multi-leaf spring twelve main flims+four horse riding 前后多片簧 十二主片+四骑马 | ||
Wheels and tires/轮胎 | 12R22.5 | ||
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 | ||
Parking brake:Air discharging with spring control/停车制动 | |||
Auxiliary brake:Engine exhaust brake/发动机排气辅助制动 | |||
CAB INTERIOR 驾驶室内部配置 | Driver seat 驾驶室座椅 | mechanical 机械式 | |
Lighter 点烟器 | Yes | ||
Entertainment 娱乐设置 | mp3+radio | ||
Cab maintanence titled 驾驶室翻转 | manual 手动翻转 | ||
Air conditioner 空调 | manual手动空调 | ||
Rear view mirror 后视镜 | manual手动 | ||
Sleeping bed 卧铺 | single bed 单卧铺 | ||
OVERALL DIMENSIONS/全车尺寸 | 7500×2500×3300 mm | ||
